Octane
User Manual
Specifications
| Model | |
| Model Name: | Octane |
| Model Number: | CSAZ-460A/CSAZ-460B |
| Specifications | |
| Type: | ATX Mid Tower |
| Color: | Black/Black(interior), White/White(interior) |
| Side Panel Window: | Left Side panel: Slidable tempered glass panel |
| Max CPU Cooler Height: | UP to 165mm |
| Max Video Card Length: | Up to 360mm long video card |
| Power Supply: | Not Included |
| Motherboard Compatibility: | <270mm E-ATX • ATX, Micro ATX • ITX |
| Expansion | |
| External 5.25″ Drive Bays: | 0 |
| Internal 2.5″ Drive Bays: | Up to 4 |
| Internal 3.5″ Drive Bays: | Up to 2 |
| Expansion Slots: | 7 |
| Top Ports: | Power button, reset button,Led button, HD Audio, USB 3.0 x 1, USB2.0x2 |
| Physical Specifications | |
| Case Dimension (HxWxD) | 470x215x443/18.5×8.5×17.4 inches |
| Weight: | 6.4kg /14.1Ibs |
| Features | |
| Tempered Glass Sides Window: | High-quality tempered glass side window allows for clear visuals to inner components |
| Addressable RGB Light Effects: | CSAZ-460A: All ARGB light synchronize devices connect to the ARGB control board. CSAZ-460B: Addressable RGB light strip in the front and all ARGB light synchronize devices make connections. Allowing the LED button to directly control the ARGB lighting, or switched to be controlled by the motherboard synchronize software.. |
| Available Fan Ports: | 3x120mm or 3x140mm Fan ports in the front(CSAZ-460A: 3x120mm ARGB fan included) 3x120mm or 2x140mm Fan ports on the top lx120mm Fan port in the rear(CSAZ-460B: lx120mm black fan included) |
| Water Cooling: | Supports radiators up to 280/360mm in the Front Supports radiators up to 240mm in the Top |
| Dust Filters: | Removable (magnetic) dustproof net on the top, iron net on the bottom of chassis. CSAZ-460B: LED light guide mesh on the front. |
| Power Supply Support: | Bottom mounted ATX Power Supply |
Chassis Parts
CSAZ-460A
| 1 | Chassis |
| 2 | Removable magnetic mesh |
| 3 | Steel dust filter |
| 4 | Sliding tempered glass panel |
| 5 | Metal side panel |
| 6 | 2.5” SSD tray x 2 |
| 7 | Hard disk cage |
| 8 | 3.5” HDD/ 2.5” SSD brackets |
| 9 | Front panel |
CSAZ-460B
| 1 | Chassis |
| 2 | Removable magnetic mesh |
| 3 | Steel dust filter |
| 4 | Sliding tempered glass panel |
| 5 | Metal side panel |
| 6 | 2.5” SSD tray x 2 |
| 7 | Hard disk cage |
| 8 | 3.5” HDD/ 2.5” SSD brackets |
| 9 | Front panel |
| 10 | Addressable RGB strip |
| 11 | Led light guide mesh |

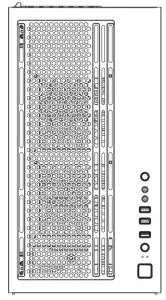

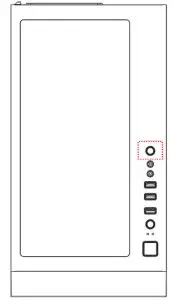

Control Panel Functions

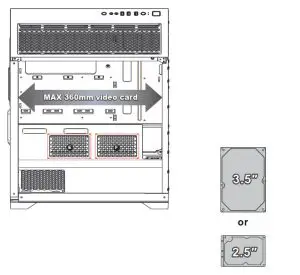

3.5 ˝/ 2.5˝ HDD/SSD Installation
- Supports up to 360mm long video cards.
- Supports up to 120mm fan x2 (E F )

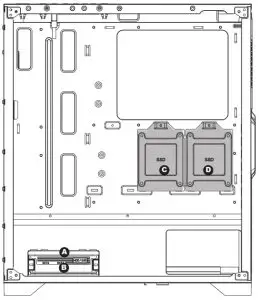

- Multifunctional hard disk cage support 3.5” HDD or 2.5” SSD x 1(A )
- Multifunctional hard disk bracket support 3.5” HDD or 2.5” SSD x 1 (B )
- 2.5″ SSD metal tray support 2.5” SSD x 2 (C D )
Cooling System Installation

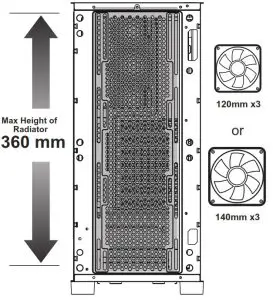

Front

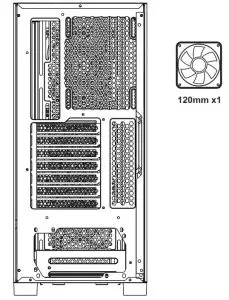

Rear

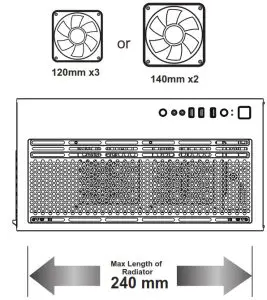

Top

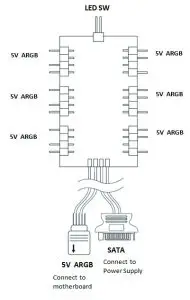

ARGB Control Board
CSAZ-460A
ARGB Control Modes Switching
CSAZ-460A
※Press the LED button to cycle through different RGB lighting modes, controlled by the LED button though the ARGB control board.
※Hold the LED button for 3 seconds to switch the RGB control function between motherboard RGB software and LED button.
CSAZ-460

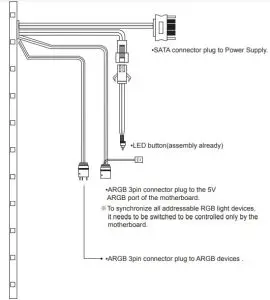

CSAZ-460B
※Press the LED button to cycle through different RGB lighting modes, controlled by the LED button though the ARGB control board.
※Hold the LED button for 3 seconds to switch the RGB control function between motherboard RGB software and LED button.
