Azza 850w Gold Power Supply Psaz-850g14 User Manual

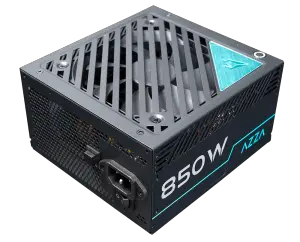

850W GOLD Power Supply
PSAZ-850G14
User Manual

Product Information

• The all-new PSAZ-850G14 is an 80Plus Gold Certified gaming power supply.
• Fully Modular Cables for Quick and Easy Installation.
• Fan Quiet operation across a wide range of loads.

Features

• Complied with ATX12V V2.4, EPS12V V2.92 Standard
• 80 PLUS Gold certified, with 87% (115VAC) / 89% (230VAC) efficiency or higher under typical loads.
• High-Quality Components.
• Universal AC input from 100V-240V.
• 120mm fan: Quiet operation across a wide range of loads.
• Fully Modular to reduce clutter and improve airflow.
• Protection: UVP,OVP,OPP,OCP,SCP.
• Safety: FCC,CE,RoHS,CB,TUV,cTUVus.
• 3-Year Warranty.

Specifications

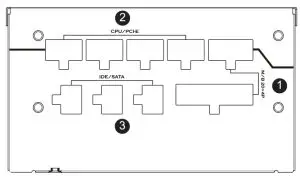

Connector Diagram

1. M/B Connector-For Mainboard used only.
2. CPU&PCI-E-For CPUs or PCI-E used.
3. Peripheral-IDE/ SATA-For HDD, optical drives, and all other internal devices.

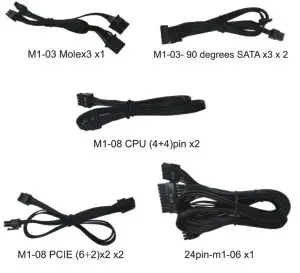

Package Contents

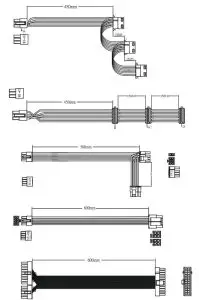

Cables

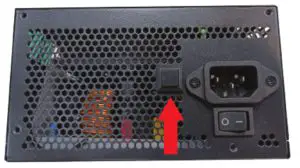

Smart Fan Control

1. Fan voltage varies with the ambient temperature and or output power.(when Switch ON)
2. Zero RPM mode (when Switch OFF) Zero RPM mode allows the fan to remain off during low to medium loads. This technology uses various temperatures from inside the PSU and the power output level to determine when active cooling is needed for the PSU. When you’re pushing it hard the fan will turn itself on to ensure that it gets the cooling it needs without any extra noise.

Installation

1. Make sure the power supply’s AC power cable is not connected before installation.
2. Place the power supply unit into the space provided iy unused modular cables for future usage.
