Evea Supernova 750w / 650w Gold Power Supply User Manual

EVEA SUPERNOVA 750W / 650W GOLD Power Supply User Manual

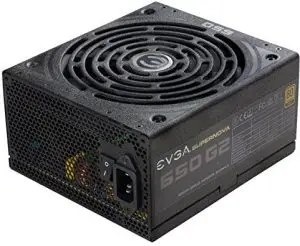

EVEA SUPERNOVA 750W /
650W GOLD Power Supply

Thank you for purchasing an EVGA Super NOVA NEX GOLD series power supply. The NEX Gold series are premium quality power supplies intended to meet the needs of the most demanding PC enthusiast systems. Designed with enthusiast needs in mind the NEX Gold series is the best choice to power next generation systems.

1.
   SUPER NOVA NEX 750W GOLD
2.

Safety Information
WARNING: This unit has no user-serviceable parts inside. Opening the casing presents a risk of electrocution and will void the warranty. EVGA will not be responsible for any result of improper use, use for which the product was not intended, or use inconsistent with the warranty terms (available for review at www.evga.com/support/warranty/ ) and this manual (also available at www.evga.com/support/manuals/).

Features

1. STABLE POWER
   The NEX Gold series has outstanding electrical performance with ultra stable voltage and extremely clean outputs. This can help you achieve the highest possible overclock, or just the most stability and reliability. The NEX Gold series also has high efficiency up to 90% and is 80PLUS GOLD certified.
2. THE BEST PROTECTION
   The NEX Gold series comes equipped with the most comprehensive protection set possible, including Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Power Protection (OPP), Short Circuit Protection (SCP), Over Temperature Protection (OTP), and Over Current Protection (OCP). This product is also covered by an exceptional 10-year warranty and EVGA’s legendary customer service and support.
3. SUPERIOR BUILD QUALITY The NEX Gold series is built to the highest standards, using Japanese capacitors rated at 105 degrees Celsius and high quality brand-name semiconductor components for the highest performance and reliability.
4. MODULAR DESIGN The NEX Gold series is designed with the enthusiast in mind, with fully modular cables to maximize airflow and keep your system looking slick and clean.

Installation

1.  Remove the power supply from its packaging.
2. Use the screws provided with your case to install the power supply into your computer. NOTE: It is recommended to install the power supply with the fan facing down. However, if your case places the power supply at the bottom of the case and there are no ventilation holes there, it may be best to install the power supply with the fan facing up for greater efficiency and reliability.

3. Connect the 24-pin ATX cable to the motherboard.

4. Connect the 8-pin EPS12V cable to the motherboard.

5. Connect the 6/8-pin PCIe cables to your graphics card(s). NOTE: Do not attempt to plug an 8-pin PCIe cable into a 6-pin connector without first detaching the two extra pins.

6. Connect the SATA cables to your power supply and drives (hard drives, solid state drives, optical drives)

7. Connect the peripheral “molex” connectors to the power supply and your fans and other devices.

8. Connect the AC power cord to your power supply and to the wall, and turn the power switch to the ON position.


NEX750G Cable Configuration

NEX750G Specifications

NEX650G Cable Configuration

NEX650G Specifications
