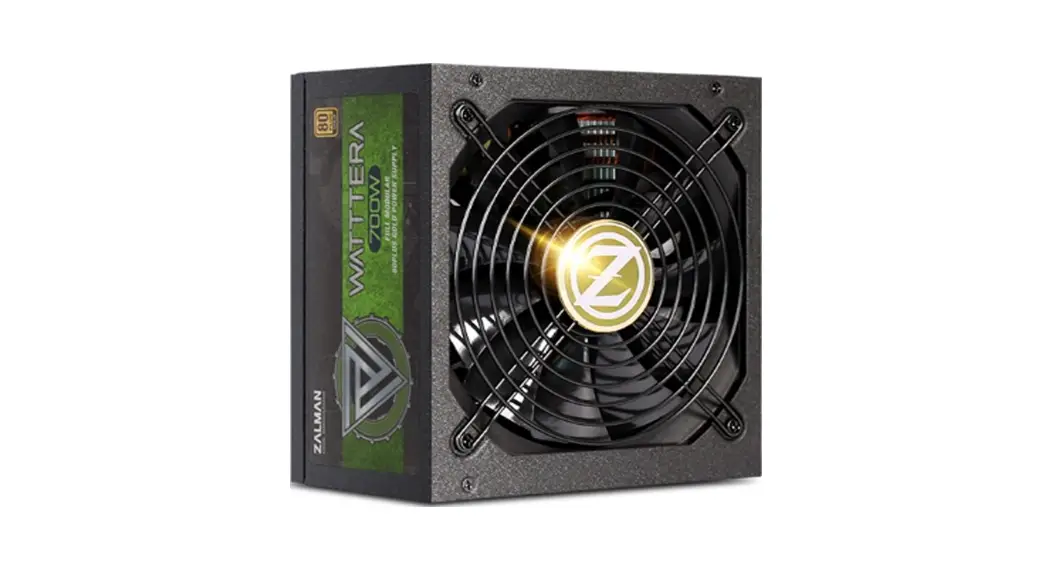

Zalman Watttera Series Power Supply Units 700w User Manual (+ PDF)

Watttera Series Power Supply Units 700W
User Manual

※ PSU Warranty program: http://zalman.com/psu.html

Developed and designed by ZALMAN in Korea.
This product is protected by ZALMAN’s pending or registered patents

To ensure safe and easy installation, please read the following precautions.
www.zalman.com

Contents hide

1 Warnings and Safety Precautions

6 Documents / Resources

6.1 References

7 Related Posts

Warnings and Safety Precautions

Neglecting the following may cause serious injury or death.

Opening the cover of the product while the power cord is plugged into an outlet may cause electrocution or critical damage to the product.
Handling the power cord with wet hands may cause electrocution.
Inserting fingers or metallic objects into the cooling fan may cause injury or electrocution.

Neglecting the following may cause minor injuries, degrade product conditions or cause malfunction.

Operating the product in an extremely cold or hot environment can degrade product performance and lifespan.
Exposure to liquids may cause malfunction.
Operation in a humid or non-ventilated environment may reduce product lifespan.
Plugging the main power connector P1 into the motherboard while the product is connected to the AC power source may cause damage to the motherboard.
Make sure that the connectors are connected to their designated locations, and that the connectors are not oriented in the wrong direction when connecting the DC output connectors.
Please use gloves to prevent injuries during installation.
Product designs and specifications may be revised without prior notification to improve quality and performance.

WARNING

This product is designed for computer use only, such as offices, multimedia, the Internet, and games. Using this product in any other application will void the warranty. The power supply unit(PSU) is for integration into a computer system and is not intended for external or outdoor usage. Please note that Full Modular PSU’s warranty is applicable to the power supply unit ONLY and does not include accessories such as power cable, connector and etc. A non-Modular warranty is applicable to PSU and its power cables. If you have any questions, please ask a specialist for help.

DISCLAIMER

Zalman Tech Co., Ltd. is not responsible for any damages due to external causes, including but not limited to, improper use, problems with electrical power, accident, neglect, alteration, repair, improper installation, or improper testing.

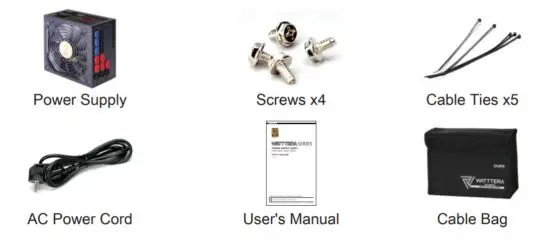

Компоненттер

ZM700-EBTII

Electrical & Physical Specifications

AC Input Range	Voltage	I 100-240VAC ±10%			Vout	Output Load Rating			Combined Power
	Frequency	50Hz — 60Hz ±3%				Imo	I max	I peak
AC Input Current	100VAC	9A-4.5A			+3.3V	0.1A	20A		100W	700W
	240VAC				+5V	0.2A	20A
PFC Type	Active PFC				+12V	0.2A	58A		696W
Power Factor Correction	Max 99%				-12V	0.0A	0.3A		3.6W
Inrush Current Limit (@ Cold Start at 25°C)	100VAC	Max 50A			+5VSB	0.0A	3A		15W
	240VAC				Ambient Temperature
Efficiency	Max 90% @ 230VAC, Typical load				Operation		0 — +40°C
DC Output Voltage Regulation	Vout	Regulation Range		At Full Load	Storage		-20 — +70°C
	+3.3VDC	±5%	+3.14 ∼ +3.47V		Ambient Humidity
	+5VDC	±5%	+4.75 ∼ +5.25V		Operation		5% — 95% RH
	+12VDC	±5%	+11.4 ∼ +12.6V		Storage		5% — 95% RH
	-12VDC	±10%	-10.8 ∼ -13.0V		Dimensions		160(L) X 150(W) X 86(H) mm
	+5VSB	±5%	+4.75 ∼ +5.25V		Weight		3.08Kg
DC Output Ripple & Noise	Vout	Standard Range		At Full Load	Protection Functions
	+3.3VDC	50mV			Over-Current Protection (OCP)
	+5VDC	50mV			Over-Voltage Protection (OVP)
	+12VDC	120mV			Over-Power Protection (OPP)
	-12VDC	120mV			Over-Temperature Protection (OTP)
	+5VSB	50mV			Under-Voltage Protection (UVP)
					Short-Circuit Protection (SCP)

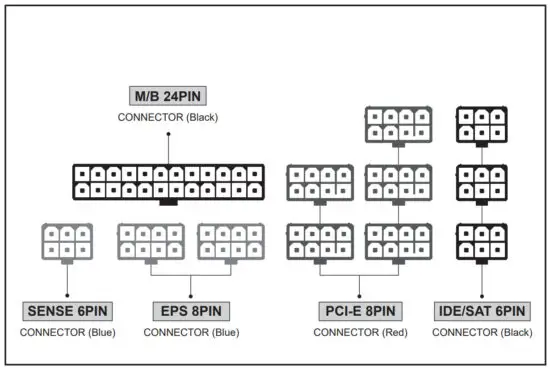

Connector Specifications

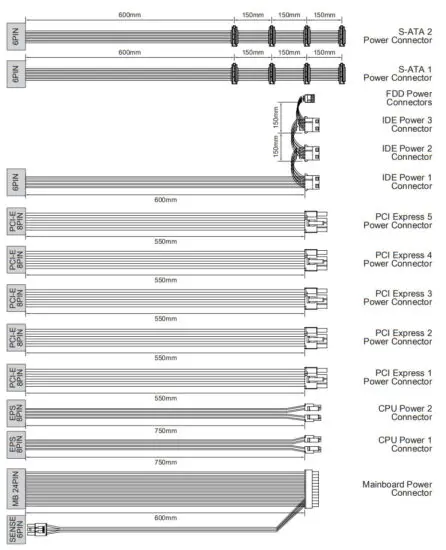

Cable Specifications
