LXII SERIES
POWER SUPPLY UNITS
500W, 600W, 700W
User’s Manual
PSU Warranty Program: http://zalman.com/psu.html
Z was Developed and designed by ZALMAN in Korea.
This product ts protected by ZALMAN’s pending or registered patents
To ensure safe and easy installation, Please read the following precautions. www.zalman.com
Warnings and Safety Precautions
WARNING Neglecting the following may cause serious injury or death.
- Opening the cover of the product while the power cord is plugged into an outlet may cause electrocution or critical damage to the product.
- Handling the power cord with wet hands may cause electrocution.
- Inserting fingers or metallic objects into the cooling fan may cause injury or electrocution.
CAUTION Neglecting the following may cause minor injuries, degrade product conditions or cause malfunction. - Operating the product in an extremely cold or hot environment can degrade product performance and lifespan.
- Exposure to liquids may cause malfunction.
- Operation in a humid or non-ventilated environment may reduce product lifespan.
- Plugging the main power connector P1 into the motherboard while the product is connected to the AC power source may cause damage to the motherboard.
- Make sure that the connectors are connected to their designated locations, and that the connectors are not oriented in the wrong direction when connecting the DC output connectors.
- Please use gloves to prevent injuries during installation.
- Product designs and specifications may be revised without prior notification to improve quality and performance.
WARNING This product is designed for computer use only, such as offices, multimedia, the Internet, and games. Using this product in any other application will void the warranty. The power supply unit(PSU) is for integration into a computer system and is not intended for external or outdoor usage. Please note that Full Modular PSU’s warranty is applicable to the power supply unit ONLY and does not include accessories such as, power cables, connectors and etc. A non-Modular warranty is applicable to PSU and its power cables. If you have any questions, please ask a specialist for help.
DISCLAIMER
Zalman Tech Co., Ltd. is not responsible for any damages due to external causes, including but not limited to, improper use, problems with electrical power, accident, neglect, alteration, repair, improper installation, or improper testing.

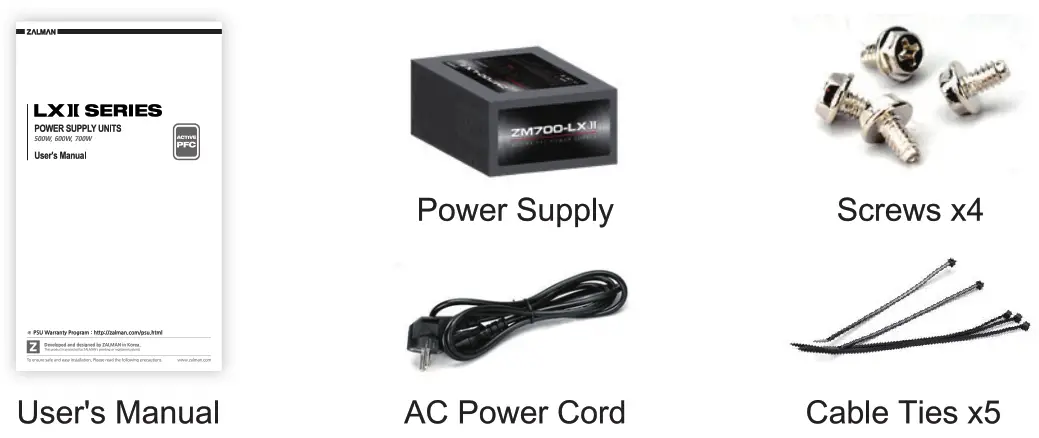

Components
ZM500-LXII Specifications
- Electrical & Physical Specifications
| AC Input Range | Voltage | 200-240VAC ±10% | Vout | Output Load Rating | Combined Power | |||||
| Frequency | 50-60Hz ±3% | Imin | Imax | Speak | ||||||
| AC Input Current | Current | SA | +3.3V | 0.1A | 14A | 110W | 500W | |||
| +5V | 0.2A | 16A | ||||||||
| PFC Type | Active PFC | +12V | 0.2A | 38A | 456W | |||||
| Power Factor Correction | Max 99% | -12V | 0.0A | 0.3A | 3.6W | |||||
| Inrush Current Limit | 230VAC | Max 50A | +SVSB | 0.0A | 2.5A | 12.5W | ||||
| Ambient Temperature | ||||||||||
| Efficiency | Max 85% @ 230VAC, Typical load | Operation | 0 — +40°C | |||||||
| DC Output Volta ge Regulation | Vout | Regulation Range | At Full Load | Storage | -20 — +70°C | |||||
| +3.3VDC | ±5% | +3.14 — +3.47V | Ambient Humidity | |||||||
| +5VDC | ±5% | +4.75 — +5.25V | Operation | 5% — 95% RH | ||||||
| +12VDC | ±5% | +11.4 — +12.6V | Storage | 5% — 95% RH | ||||||
| -12VDC | ±10% | -10.8 — -13.0V | Dimensions | 150(L) X 140(W) X 86(H) mm | ||||||
| +SVSB | ±5% | +4.75 — +5.25V | Weight | 1.94Kg | ||||||
| DC Output Ri pple & Noise | Vout | Standard Range | At Load | Protection Functions | ||||||
| +3.3VDC | 50mV | Over-Temperature Protection(OTP) | ||||||||
| +5VDC | 50mV | Full Over-Voltage Protection (OVP) | ||||||||
| +12VDC | 120mV | Over-Power Protection (OPP) | ||||||||
| -12VDC | 120mV | Short-Circuit Protection (SCP) | ||||||||
| +SVSB | 50mV | |||||||||

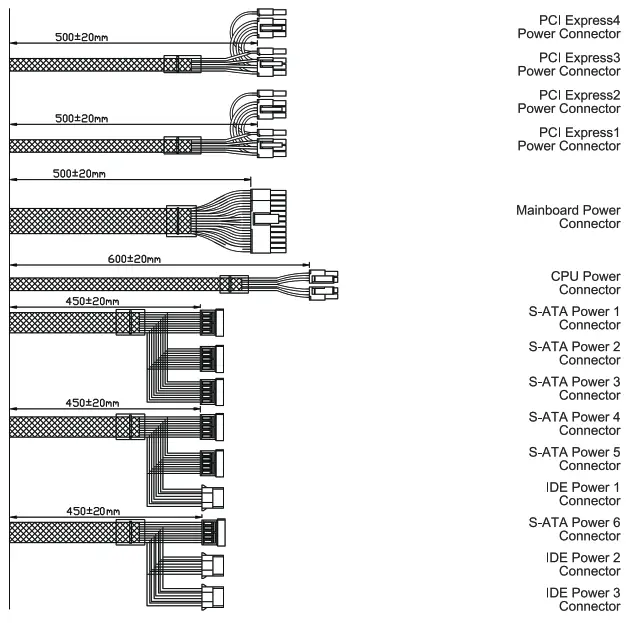

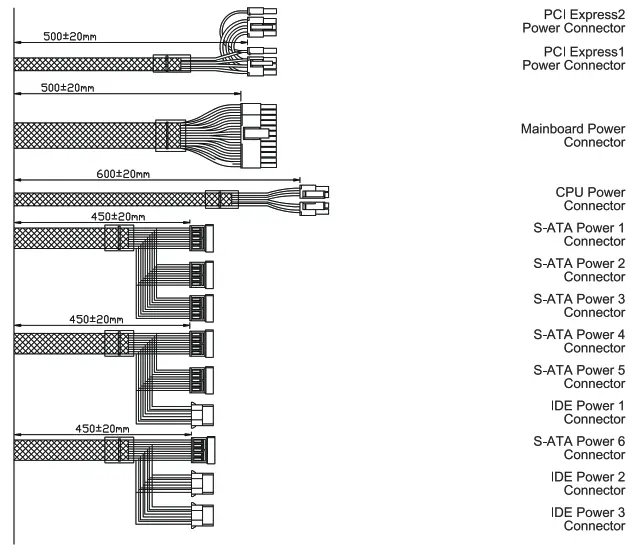

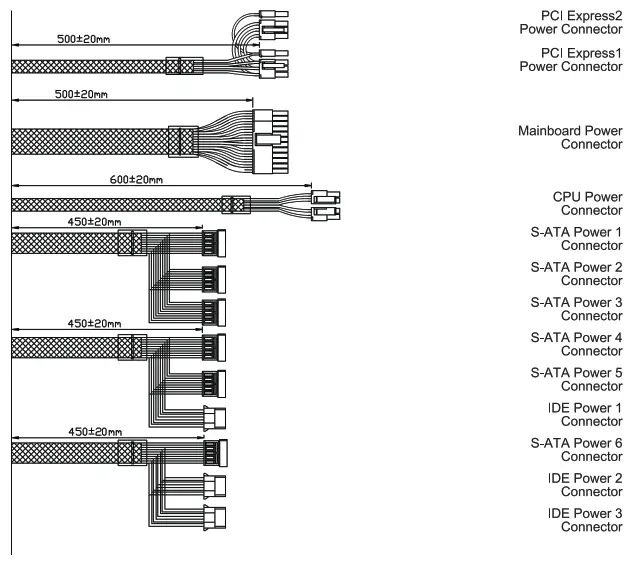

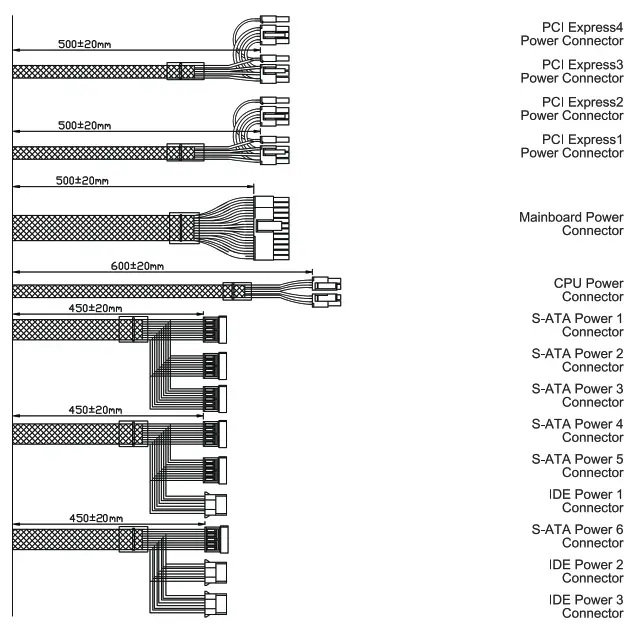

Cable Specifications
| AC Input Range | Voltage | 200-240VAC ±10% | Vout | Output Load Rating | Combined Power | ||||||||
| Imin | Imax | Ipeak | |||||||||||
| Frequency | 50-60Hz ±3% | ||||||||||||
| AC Input Current | Current | 5A | +3.3V | 0.1A | 20A | 120W | 600W | ||||||
| +5V | 0.2A | 20A | |||||||||||
| PFC Type | Active PFC | +12V | 0.2A | 46A | 552W | ||||||||
| Power Factor Correction | Max 99% | -12V | 0.0A | 0.3A | 3.6W | ||||||||
| Inrush Current Limit | 230VAC | Max 50A | +5VSB | 0.0A | 2.5A | 12.5W | |||||||
| Ambient Temperature | |||||||||||||
| Efficiency | Max 85% @ 230VAC, Typical load | Operation | 0 — +40°C | ||||||||||
| DC Output Voltage Regulation | Vout | Regulation Range | At Full Load | Storage | -20 — +70°C | ||||||||
| Ambient Humidity | |||||||||||||
| +3.3VDC | ±5% | +3.14 — +3.47V | |||||||||||
| Operation | 5% — 95% RH | ||||||||||||
| +5VDC | ±5% | +4.75 — +5.25V | |||||||||||
| Storage | 5% — 95% RH | ||||||||||||
| +12VDC | ±5% | +11.4 — +12.6V | |||||||||||
| Dimensions | 150(L) X 140(W) X 86(H) mm | ||||||||||||
| -12VDC | ±10% | -10.8 — -13.0V | |||||||||||
| Weight | 1.98Kg | ||||||||||||
| +5VSB | ±5% | +4.75 — +5.25V | |||||||||||
| DC Output Ripple & Noise | Vout | Standard Range | At Full Load | Protection Functions | |||||||||
| Over-Temperature Protection(OTP) | |||||||||||||
| +3.3VDC | 50mV | ||||||||||||
| Over-Voltage Protection (OVP) | |||||||||||||
| +5VDC | 50mV | ||||||||||||
| Over-Power Protection (OPP) | |||||||||||||
| +12VDC | 120mV | ||||||||||||
| Short-Circuit Protection (SCP) | |||||||||||||
| -12VDC | 120mV | ||||||||||||
| +5VSB | 50mV | ||||||||||||
| AC Input Range | Voltage | 200-240VAC ±10% | Vout | Output Load Rating | Combined Power | ||||||
| Frequency | 50-60Hz ±3% | Imin | Imax | Ipeak | |||||||
| AC Input Current | Current | 5A | +3.3V | 0.1A | 20A | 120W | 700W | ||||
| +5V | 0.2A | 20A | |||||||||
| PFC Type | Active PFC | +12V | 0.2A | 54A | 648W | ||||||
| Power Factor Correction | Max 99% | -12V | 0.0A | 0.3A | 3.6W | ||||||
| Inrush Current Limit | 230VAC | Max 50A | +5VSB | 0.0A | 2.5A | 12.5W | |||||
| Ambient Temperature | |||||||||||
| Efficiency | Max 85% @ 230VAC, Typical load | Operation | 0 — +40°C | ||||||||
| DC Output Volta ge Regulation | Vout | Regulation Range | At Full Load | Storage | -20 — + 70°C | ||||||
| +3.3VDC | ±5% | +3.14 — +3.47V | |||||||||
| Ambient Humidity | |||||||||||
| +5VDC | ±5% | +4.75 — +5.25V | Operation | 5% — 95% RH | |||||||
| +12VDC | ±5% | +11.4 — +12.6V | Storage | 5% — 95% RH | |||||||
| -12VDC | ±10% | -10.8 — -13.0V | Dimensions | 150(L) X 140(W) X 86(H) mm | |||||||
| +5VSB | ±5% | +4.75 — +5.25V | Weight | 2.08Kg | |||||||
| DC Output Rile pp & Noise | Vout | Standard Range | At Load | Protection Functions | |||||||
| +3.3VDC | 50mV | Over-Temperature Protection(OTP) | |||||||||
| +5VDC | 50mV | Full Over-Voltage Protection (OVP) | |||||||||
| +12VDC | 120mV | Over-Power Protection (OPP) | |||||||||
| -12VDC | 120mV | Short-Circuit Protection (SCP) | |||||||||
| +5VSB | 50mV | ||||||||||
| AC Input Range | Voltage | 200-240VAC ±10% | Vout | Output Load Rating | Combined Power | ||||||
| Frequency | 50-60Hz ±3% | Imin | Imax | Ipeak | |||||||
| AC Input Current | Current | 5A | +3.3V | 0.1A | 20A | 120W | 700W | ||||
| +5V | 0.2A | 20A | |||||||||
| PFC Type | Active PFC | +12V | 0.2A | 54A | 648W | ||||||
| Power Factor Correction | Max 99% | -12V | 0.0A | 0.3A | 3.6W | ||||||
| Inrush Current Limit | 230VAC | Max 50A | +5VSB | 0.0A | 2.5A | 12.5W | |||||
| Ambient Temperature | |||||||||||
| Efficiency | Max 85% @ 230VAC, Typical load | Operation | 0 — +40°C | ||||||||
| DC Output Voltage Regulation | Vout | Regulation Range | At Full Load | Storage | -20 — + 70°C | ||||||
| +3.3VDC | ±5% | +3.14 — +3.47V | Ambient Humidity | ||||||||
| +5VDC | ±5% | +4.75 — +5.25V | Operation | 5% — 95% RH | |||||||
| +12VDC | ±5% | +11.4 — +12.6V | Storage | 5% — 95% RH | |||||||
| -12VDC | ±10% | -10.8 — -13.0V | Dimensions | 150(L) X 140(W) X 86(H) mm | |||||||
| +5VSB | ±5% | +4.75 — +5.25V | Weight | 2.08Kg | |||||||
| DC Output Rile pp & Noise | Vout | Standard Range | At Load | Protection Functions | |||||||
| +3.3VDC | 50mV | Over-Temperature Protection(OTP) | |||||||||
| +5VDC | 50mV | Full Over-Voltage Protection (OVP) | |||||||||
| +12VDC | 120mV | Over-Power Protection (OPP) | |||||||||
| -12VDC | 120mV | Short-Circuit Protection (SCP) | |||||||||
| +5VSB | 50mV | ||||||||||
