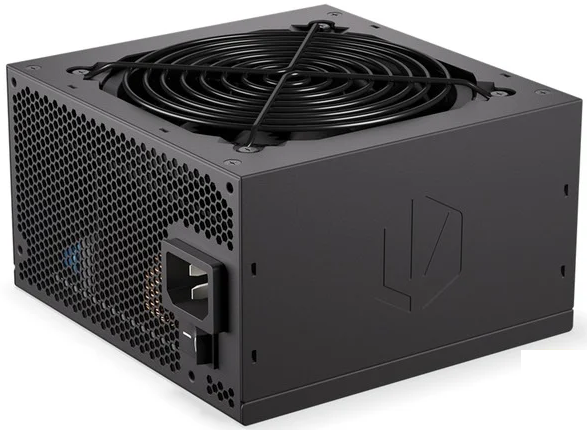

ENDORFY EY7A010 Supremo FM5 Gold 1000W Power Supply

ENDORFY-EY7A010-Supremo-FM5-Gold-1000W-Power-Supply-PRODUCT

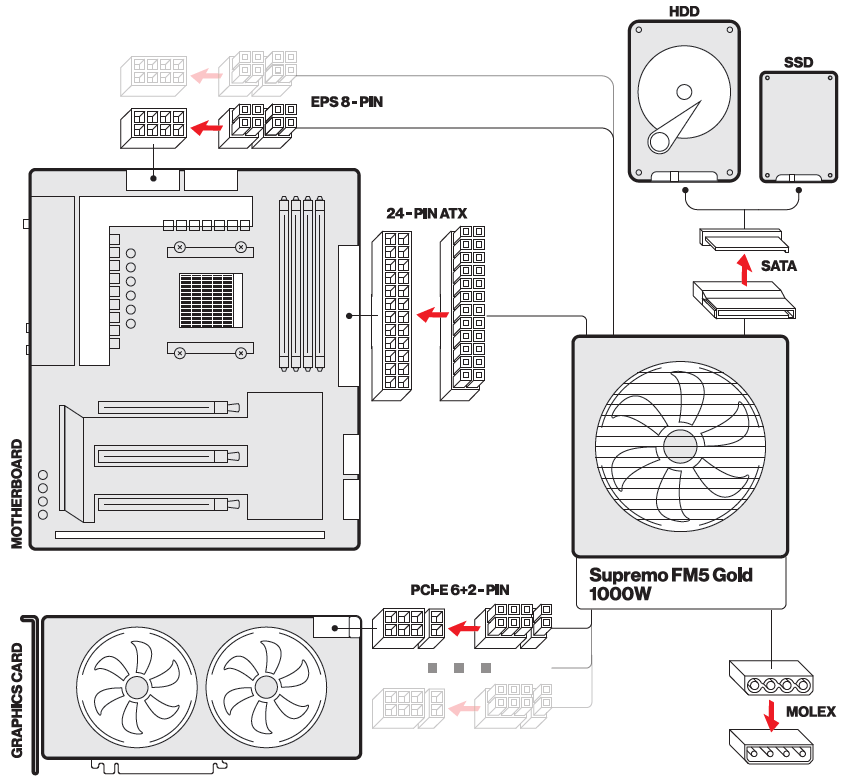

CONNECTING THE PSU

ENDORFY-EY7A010-Supremo-FM5-Gold-1000W-Power-Supply-fig- (2)

POWER OUTPUT

AC input100-240 VAC, 13-6.5 A, 50-60 Hz
DC output+12V+3.3V+5V-12V+5VSB
Max current83A20A20A0.3A3A
Max combined power996W100W3.6W15W
1000W

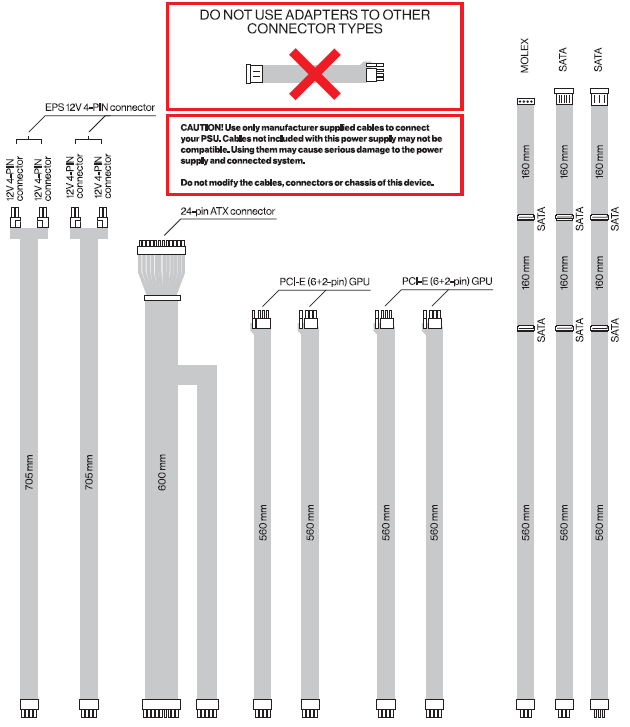

INCLUDED CABLING

ENDORFY-EY7A010-Supremo-FM5-Gold-1000W-Power-Supply-fig- (4)

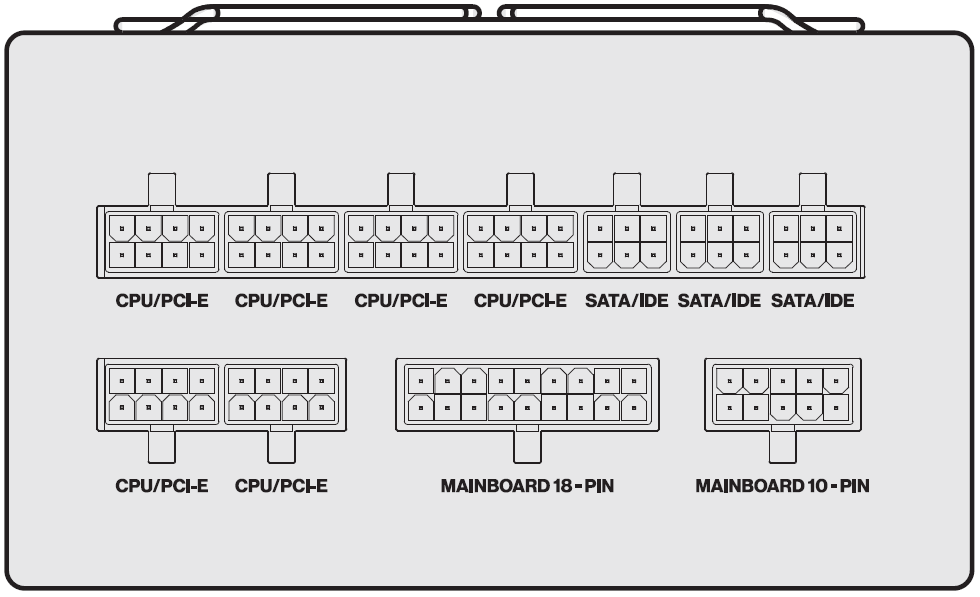

Supremo FM5 Gold 1000 W

ENDORFY-EY7A010-Supremo-FM5-Gold-1000W-Power-Supply-fig- (5)

Safety Instruction

  1. The product should be used as intended. Incorrect use may damage the product and be dangerous to your health.
  2. Make sure that the product is in good working order before using it.
  3. The warranty does not cover mechanical damage to the product.
  4. This device is intended for indoor use, under normal humidity conditions. Do not use it outdoors.
  5. Do not install and use the device within reach of children.
  6. To prevent damage from condensation, allow the device to warm up to ambient temperature before use.
  7. Clean only with a dry, clean cloth. Do not handle it with wet hands.
  8. No user-serviceable components inside. Return to the authorized service center for repairs.
  9. Opening the device or modifying it will void the warranty.
  10. Do not use the product near liquids or in places, where it may be directly exposed to liquids. If the device comes into contact with any liquids, immediately disconnect it from the power source.
  11. In the event of a malfunction, disco Meet i1 from the power source immediately and contact Endorty Technical Support.
  12. Do not discard electrical and electronic equipment together with other household waste.
  13. The end user is responsible for the correct disposal of unnecessary or faulty electrical equipment by returning it to the collection point or to the seller.
    Contact local authorities or the store where you purchased the product for additional intormation.
  14. CAUTION! Use only manufacturer-supplied cables to connect your PSU. Cables not included with this power supply may not be compatible. Using them may cause serious damage to the power supply and connected system.
  15. Do not open the power supply case. Hazardous voltage levels inside may be present even after disconnecting the power supply from its power source.
  16. Do not modify the cables, connectors, or chassis of this device.
  17. This device requires adequate ventilation. Do not cover ventilation openings. Do not insert objects into openings.
  18. Do not install this device near heating devices.
  19. Do not install or remove the power supply unit while it is connected to the mains.

ENDORFY.COM/KNOWLEDGE-BASE
