Amber Connect Asc400 Wireless Rechargeable Lte Gps Tracker User Guide (+ PDF)

Positioning system	GPS+WiR+LBS
Frequency	Ll
Positioning accuracy	<2.5mCEP
Track sensitivity	-165dBm
Acquisition sensitivity	-148dBm
TTFF (open sky)	Avg. hot start ,a;; 1 sec Avg. cold start ,a;; 40sec

Communication network	LTE/EGPRS
Frequency	LTE CAT M1/NB2: B1/B2/B3/B4/B5/B8/B12/B13/B18/B 19 /B20/B26/B28/B66 EGPRS: 850/900/1800/1900 MHz

Battery	1 0.000mAh/3. 7V industrial-grade Li-Polymer battery
Working modes	Mode 0: Standby mode Mode 1 : Tracking mode Mode 2: Power-saving mode
Standby time	Up to 3 years in power-saving mode

LED indication	1 status indicator (Red). 4 battery indicators (Blue)
SIM	standard-SIM
Data storage	32+32Mb

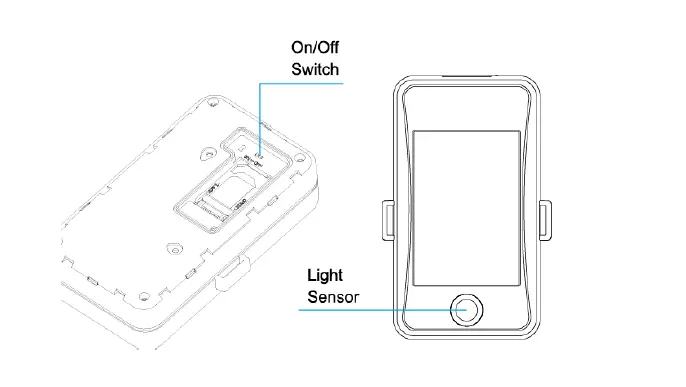

Tamper proof	light sensor

Product Setup

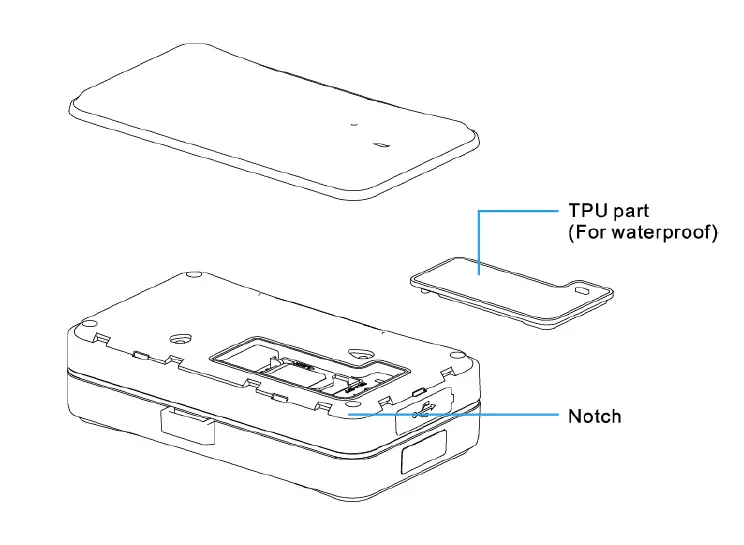

Find the notch and remove the upper cover and TPU part.

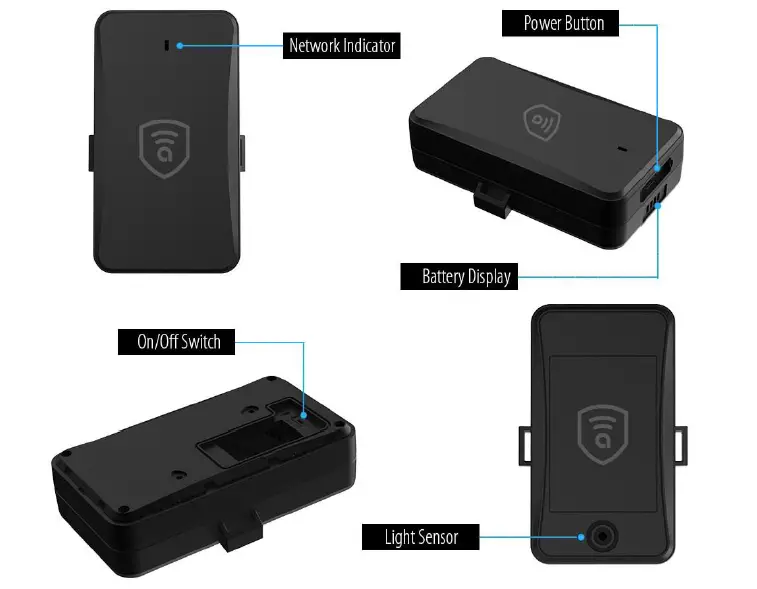

GSM Indicator

Status	Meaning
Blinking quickly	GSM initialization/No GSM
Blinking slowly	Connected to the Amber Connect platform
Always ON	Voice calling feature enabled

The GSM Indicator will turn off after the device has been powered on for 3 minutes.
Once the device is on, tap the power button to activate the LED, which will turn off automatically after 60 seconds.

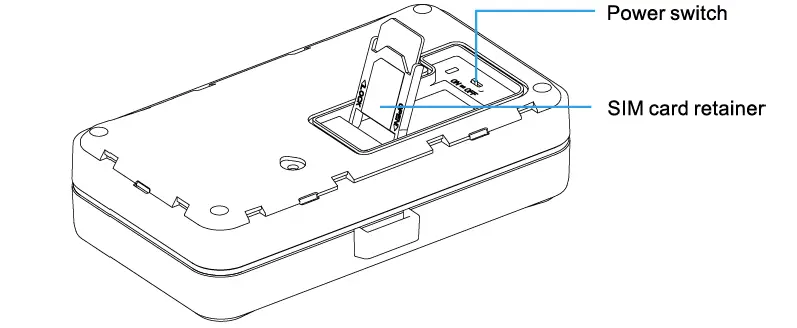

SIM Card
The SIM card should have access to GPRS and SMS. Remove the device cover, switch to OFF and insert the SIM card.

Installation
The device is built with a strong magnet which can be easily attached to any surface with a magnetic pull. To attach the device to a non-magnetic surface, use the 3M foam tape and bracket included in your package.

Troubleshooting

If you are having trouble with your device, try the troubleshooting procedures mentioned below before contacting Amber Support.

Problems	Causes	Solutions
Poor signal	The signal waves are unable to transmit when using the GPS tracker in places with poor signal reception, such as tall buildings or basements.	Relocate to an area with adequate signal reception.
Unable to boot	Power switch is OFF	Switch to ON
	No battery	Charge battery
	No SIM card	Insert SIM card
Unable to connect to the network	SIM card inserted incorrectly	Check SIM card
	SIM card has dust, debris	Clean SIM card
	Invalid SIM card	Contact network supplier
	Not in GSM service area	Move to GSM service area
Fail to locate	Poor signal	Move to an area with adequate signal reception
	SIM has no access to GPRS	Contact network supplier to get GPRS service

Operation

Power ON/OFF
Power on: Press power button for 3 seconds (battery switch is in ON position). Power off: Press power button for 3 seconds.

Emergency Number
Set emergency number thru Amber App.

Geo-fence Alarm
The geo-fence alarm only works in tracking mode. When the vehicle enters/exits the pre-set geo- fence area, the Amber Connect App will send a real-time notification.

Voice Monitoring
Use pre-set SOS number to make and receive calls from the device. The device will automatically call back. Answer the call and monitor sounds inside the vehicle.

App And Web Platforms

Please download and install the Amber Connect App from your digital App store and follow the onscreen instructions to register your device. Visit www.amberconnect.com/portal/customer/login and go to login > customer > sign up and follow the onscreen instructions to register your device.

Warning

Battery specified by the manufacturer is recommended. Maintenance or service arising from any third party accessories is not guaranteed. The manufacturer assumes no responsibility for any damage caused by non-original accessories. Do not bend or open the battery. Do not immerse or burn the battery. Device disassembly is strongly forbidden. Non-professionals’ operation may lead to device damage.
