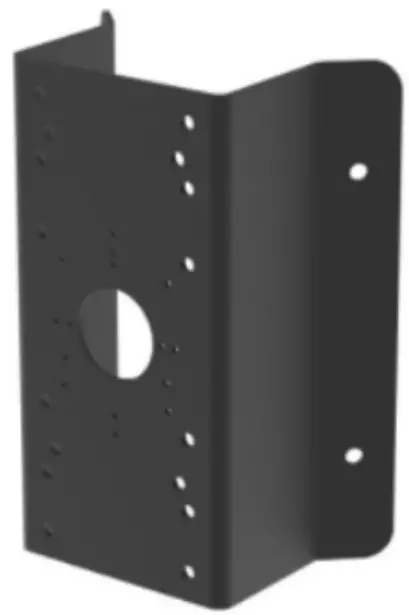

DS-1276ZJ-SUS
Corner Mount
Feature
- Stainless steel with a surface spray treatment
- One-piece stainless steel formation ensures the reliable structure
- Expand camera’s field of view

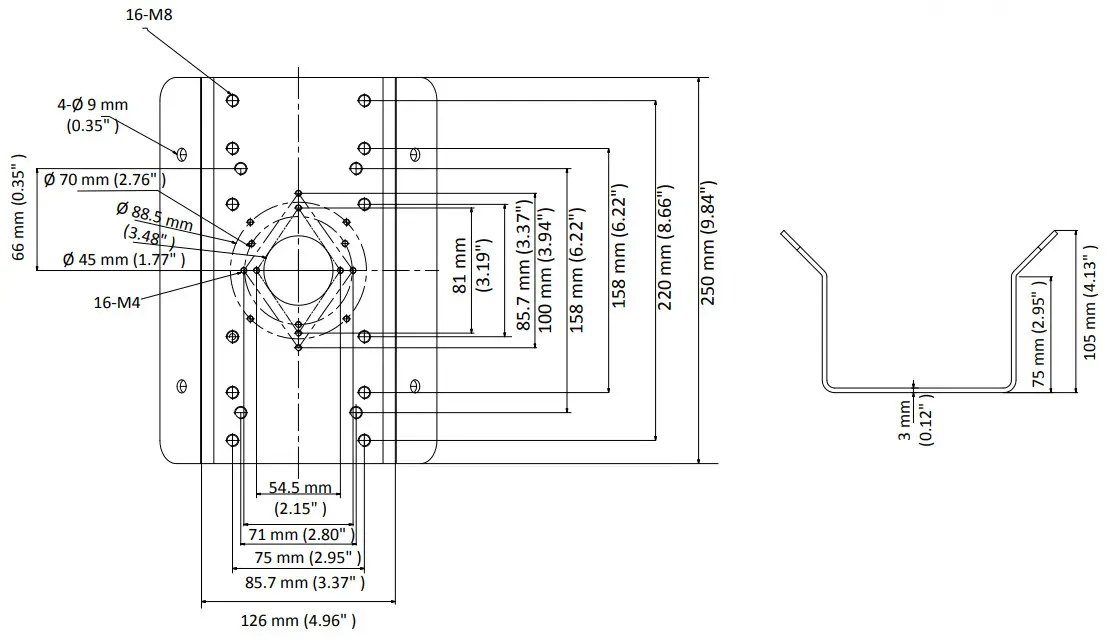

Dimension
Available Model
DS-1276ZJ-SUS
Parameter
| Model Parameters | DS-127611-SUS |
| Corner Mount | |
| Appearance | Hikvision White |
| Material | Stainless Steel |
| Dimension | 126 mm x 105 mm x 250 mm (4.96″ x 4.13″ x 9.84″) |
| Weight | 1990 g (4.39 lb.) |
Note
- The mount should be installed on the flat surface.
- The waterproof rubber is necessary for outdoor application.
- The wall must be capable of supporting at least 3 times as much as the total weight of the camera, and the mount.
- The mount’s maximum load capacity is 10 kg (22 lb.).
