DS-1671ZJ-SD11
In-Ceiling Mounting Bracket for 4-inch PTZ Camera
Features
- Steel material with surface spray treatment
- Magnetic design facilitates 4-inch PTZ camera installation
- In-ceiling mounting saves the installation space

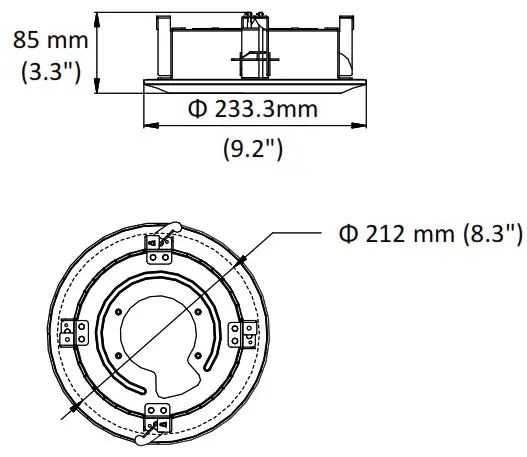

Dimension
Available Model
DS-1671ZJ-SD11
Parameter
 | DS-1671ZJ-SD11 |
| In-Ceiling Mounting Bracket for 4-inch PTZ Camera | |
| Appearance | Hikvision White |
| Material | Steel |
| Dimension | Φ 233.3 mm x 85 mm (9.2″ x 3.3″) |
| Cable Hole | Φ 212 mm (8.3″) |
| Weight | 640 g (1.4 lb.) |
Notes
- The bracket should be installed on the flat ceiling.
- The ceiling must be capable of supporting at least 3 times as much as the total weight of the camera and the bracket.
- The maximum load capacity of the bracket is 4 KG (8.8 lb.).
