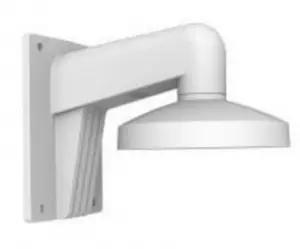

HIKVISION DS-1473ZJ-155 Wall Mount for Dome Camera User Guide
Feature
- Aluminum alloy with surface spray treatment
- The cap facilitates the installation
- Waterproof design

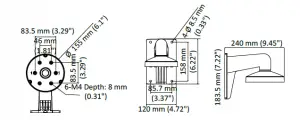

Dimension
Available Model
DS-1473ZJ-155
Parameter
| Model Parameters | DS-1473ZJ-155 |
| Wall Mount for Dome Camera | |
| Appearance | Hikvision White |
| Material | Aluminum Alloy |
| Dimension | Ø 155 mm × 183.5 mm × 240 mm (6.1″ × 7.22″ × 9.45″) |
| Weight | 650 g (1.4 lb.) |
Note
- The mount should be installed on the flat surface.
- The wall must be capable of supporting at least 3 times as much as the total weight of the camera and the mount.
- The mount’s maximum load capacity is 3 Kg (6.6 lb.).
