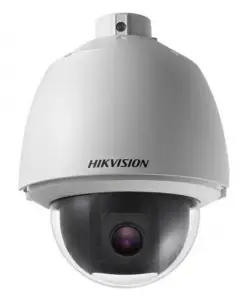

HIKVISION Outdoor Network PTZ Speed Dome Camera
Features
- 1/2.8″ Progressive Scan CMOS 1/2.8″ Progressive Scan CMOS
- Up to 2048 × 1536 Up to 2048 × 1536 2048 × 1536Resolution Resolution Resolution
- 30x Optical Zoom 30x Optical Zoom
- DWDR
- 3-D Intelligent D Intelligent D Intelligent Positioning Positioning Positioning
- H.265 Video Compression Supported H.265 Video Compression Supported
- IP66/IK10 IP66/IK10
- 24 VAC/PoE (PoE Injector Included PoE Injector Included PoE Injector Included), 18 W
Hikvision DS-2DE5330W-AE Value Series Network PTZ Speed Dome Cameras are designed for demanding applications and feature IP66 and IK10 ratings.
The embedded 1/2.8″ progressive scan CMOS chip makes DWDR and 2048 × 1536 real-time resolution possible. With its 30x optical zoom lens, the camera offers abundant details over expansive areas.
Hikvision’s DS-2DE5330W-AE PTZ Speed Dome Camera also features a wide range of functions, including intrusion detection, line crossing detection, and audio exception, benefitting users with great improvements in security efficiency and, more importantly, with key events/objects recorded for further forensic needs.
Available Models:
DS-2DE5330W-AE
Specifications
DS-2DE5330W-AE
Camera Module
| Image Sensor | 1/2.8″ progressive scan CMOS |
| Minimum Illumination | Color: 0.05 lux @ (ƒ/1.6, AGC on); B/W: 0.01 lux @ (ƒ/1.6, AGC on) |
| White Balance | Auto/manual/ATW (auto tracking white balance)/indoor/outdoor/fluorescent lamp/sodium lamp |
| AGC | Auto/manual |
| Shutter Speed | 1/1 s to 1/30,000 s |
| Day/Night | IR cut filter |
| Digital Zoom | 16x |
| Privacy Mask | 8 programmable privacy masks |
| Focus Mode | Auto/semi-automatic/manual |
| 3D DNR | Yes |
| BLC | Yes |
| Digital WDR | 92 dB |
| HLC | Yes |
| Defog | Yes |
Lens
| Focal Length | 4.3 mm to 129 mm, 30× optical |
| Zoom Speed | Approximately 3 s (optical lens, wide−tele) |
| Field of View | 57.4° to 2.8° (wide−tele) |
| Working Distance | 10 mm to 1500 mm (wide−tele) |
| Aperture Range | ƒ/1.6 to ƒ/5.0 |
PTZ
| Pan | 360° endless |
| Pan Speed | Configurable, from 0.1°/s to 250°/s, preset speed: 300°/s |
| Tilt | -5° to 90° |
| Tilt Speed | Configurable, from 0.1°/s to 150°/s, preset speed: 200°/s |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans, record time over 10 minutes for each scan |
| Park Action | Preset/pattern scan/patrol scan/auto scan/tilt scan/random scan/frame scan/panorama scan |
| Scheduled Task | Auto scan/frame scan/random scan/patrol/pattern/preset/panorama scan/tilt scan/dome reboot/dome adjust/aux output |
Features
| Detection | Intrusion detection, line crossing detection |
| ROI Encoding | Main stream, sub-stream, and third stream support two fixed areas |
Network
| Maximum Resolution | 2048 x 1536 |
| Main Stream | 60 Hz: 30 fps (2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720), 60 fps (1280 × 960, 1280 × 720) |
| Sub-Stream | 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream | 60 Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264, sub-stream: H.265/H.264/MJPEG, third stream: H.265/H.264/MJPEG; H.264 with baseline/main/high profile |
| Audio Compression | G.711 alaw/G.711 ulaw/G.722/G.726/MP2L2/PCM |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour |
| Simultaneous Live View | Up to 20 channels |
| User/Host | Up to 32 users; three levels: administrator, operator, and user |
| Security Measures | User authentication (ID and PW), host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering |
System Integration
| Alarm Input | 2-ch alarm input |
| Alarm Output | 1-ch alarm output |
| Alarm Linkage | Alarm actions such as preset, patrol scan, pattern scan, memory card video record, trigger recording, notify surveillance center, upload to ftp/memory card/NAS, send e-mail, etc. |
| Audio Input | 1-ch audio input |
| Audio Output | 1-ch audio output |
| Network Interface | 1 RJ-45 10 M/100 M Ethernet interface |
| Storage | Built-in memory card slot, supports microSD/SDHC/SDXC, up to 128 GB; NAS (NPS, SMB/ CIPS), ANR |
| API | Open-ended, supports ONVIF, PSIA and CGI, support for HIKVISION SDK and third-party management platform |
| Client | iVMS-4200, iVMS-4500 |
| Web Browser | IE 7+, Chrome 18+, Firefox 5.0+, Safari 5.02+ |
General
| Power | 24 VAC and PoE+ (802.3at, class 4), maximum 18 W |
| Working Temperature | -22° to 149° F (-30° to 65° C) |
| Working Humidity | ≤90% non-condensing |
| Protection Level | IP66, IK10 standard; TVS 4000V lightning protection, surge protection, and voltage transient protection |
| Dimensions | Ø8.66″ × 12.01″ (Ø220 mm x 305 mm) |
| Weight | 6.61 lbs (3 kg) |
Accessories
NOT INCLUDED
 | Requires WMP-L | |
 |  | |
WMP-L | CMP Large Corner Mount for WMP-S/L | PMP |
 | Requires JBP-L | |
 |  | |
JBPW-L | PMPL Large Pole Mount for JBPW-L | CMPL |
 |  | Requires CPM-S or CPM-L |
 | ||
CPM-S | CPM-L Long Ceiling Pendant Mount | CPMPE |
 |
RPM |
INCLUDED
 (actual product appearance may vary) |
G1.5 Adapter |

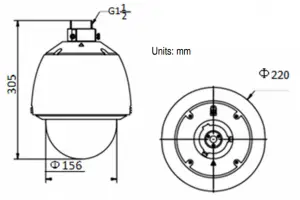

Dimensions
Outdoor
Box Contents
(Subject To Change without Notice)
- PoE Injector
- Power Cord
- Quick Start Guide
- Quick Release to 1.5 Adapter
- Watertight Cable Connector
- Wrench
Additional accessories not shown may fit without, or in combination with, these accessories. See your sales representative for information about your needs.
