HIKVISION DS-1667ZJ Extendable Pendant Mounting Bracket for PTZ Camera Owner’s Manual
Feature
- Zinc-coated steel material with surface spray treatment
- The hook for safety rope facilitates camera’s installation
- The bracket can be adjusted between 1500 mm to 2500 mm

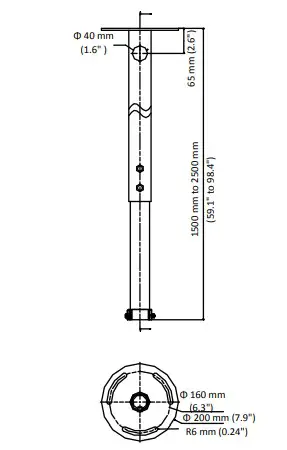

Dimension
Available Model
DS-1667ZJ
Parameter
| Model Parameters | DS-1667ZJ |
| Extendable Pendant Mounting Bracket for PTZ Camera | |
| Appearance | Hikvision White |
| Material | Steel |
| Dimension | 1500 mm to 2500 mm × 200 mm (59.1″ to 98.4″ × 7.9″) |
| Weight | 10850 g (23.9 lb.) |
Note
- The bracket should be installed on the flat surface.
- The waterproof rubber is necessary for the outdoor application.
- The wall must be capable of supporting at least 3 times as much as the total weight of the camera and the bracket.
- The bracket’s maximum load capacity is 10 Kg (22 lb.).
