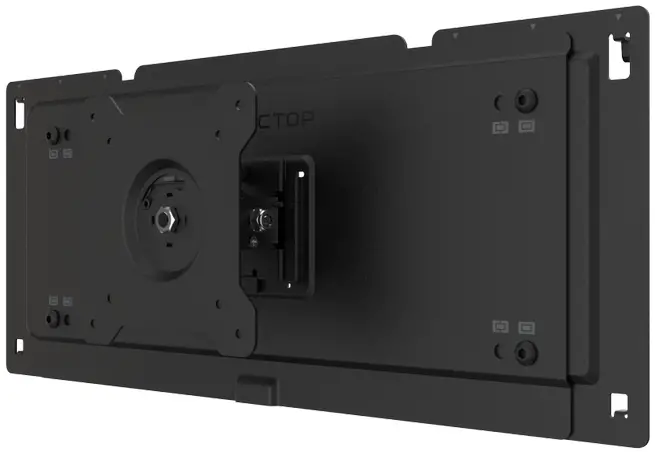

DEZCTOP D-BOARD MONITOR MOUNT User Guide

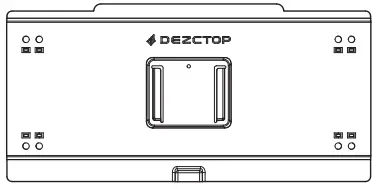

COMPONENT LIST
A. Base x 1
B. Sheet with hooks x 2
C. Monitor Mounting Unit x 1
D. M4 Thumb Screw x 4 / M4
E. M6 Button Head Socket Cap Screw x 4
F. Cable Strap x 2
G. 4mm Hex Key x 1

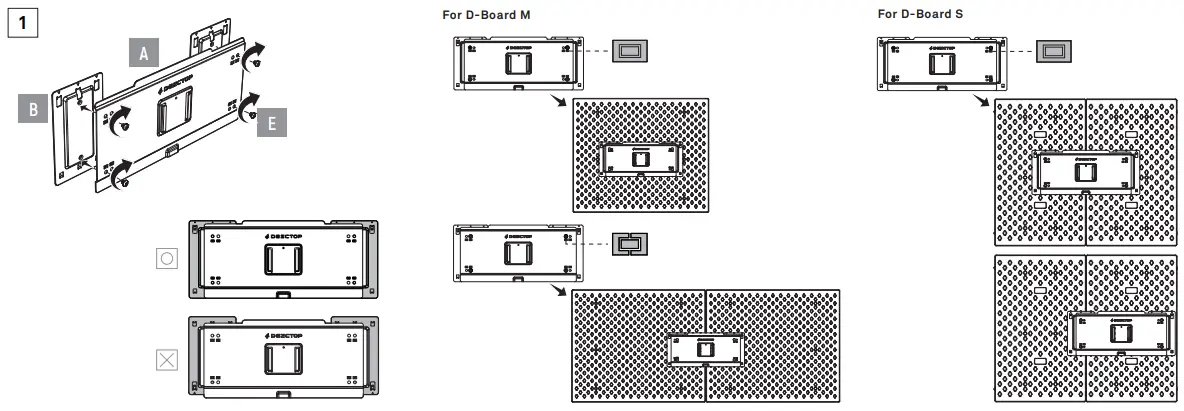

ASSEMBLY

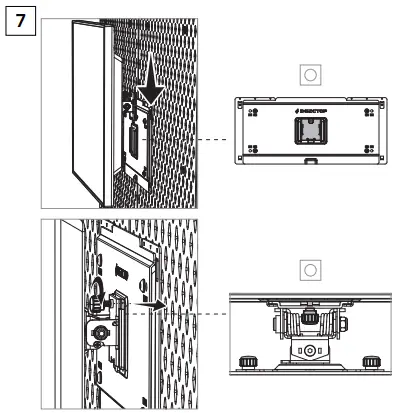

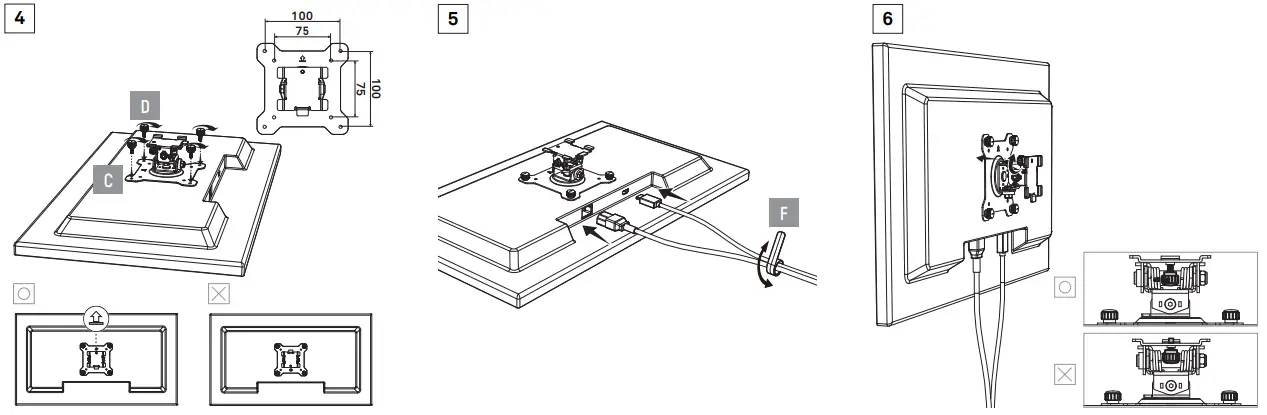

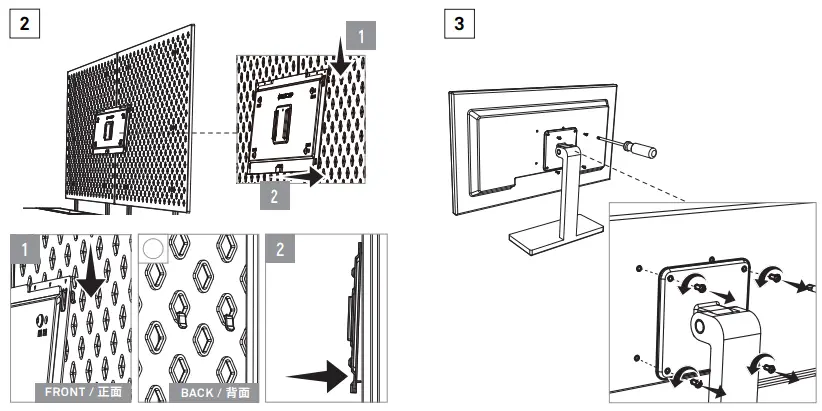

MOUNT ON THE D-BOARD

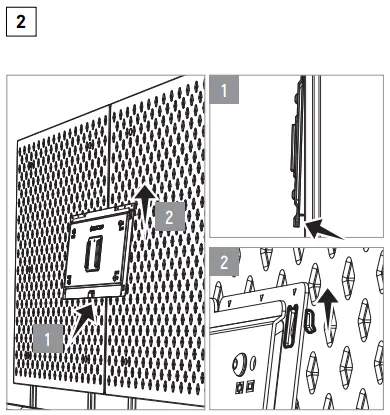

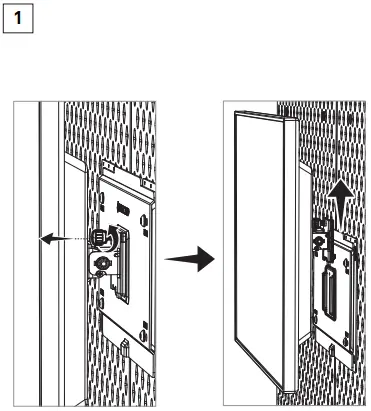

REMOVE FROM THE D-BOARD
SPECIFICATIONS
| SPECIFICATIONS | ||
| Model Number & EAN | DA-DBMONT-BK1 | 4710578830225 |
| Material | Steel, Plastic | |
| Dimensions (W x D x H) | 400 x 74 x 175 mm (15.7 x 2.9 x 6.9 inches), while mounting across two boards 426 x 74 x 175 mm (16.8 x 2.9 x 6.9 inches), while mo unting on single board | |
| Screen Size | Up to 32” | |
| Load Capacity | 7 kg (15.4 lbs) monitor net weight (without stand) | |
| Swivel (Left/Right) | 20o / 20o | |
| Tilt (Down) | 15 | |
| Pivot | 90o (Counterclockwise) | |
| Mounting Compatibility | VESA MIS-D: hole pattern 100 x 100 & 75 x 75 mm | |
| WARRANTY | ||
| Warranty | 2 Years | |
DEZCTOP WARRANTY POLICY
WHAT IS COVERED
This warranty only covers DEZCTOP products which you purchase from an authorized DEZCTOP reseller. This warranty is limited to the original purchaser and is non-transferable
WARRANTY PERIOD
All DEZCTOP products carry a 2-year warranty from the date of purchase. Proof of purchase is required for warranty service.
WHAT IS NOT COVERED
This warranty does not cover the following:
- any product or serial number/warranty sticker modification applied without permission from DEZCTOP;
- any damage that is not a manufacturing defect;
- damage, deterioration or malfunction resulting from: accident, abuse,
misuse,neglect, fire, water, lightning, or other acts of nature, unauthorized product modification or failure to follow instructions included with the product; - any improper installation, unauthorized alternations or modifications, or repair or attempted repair by anyone not authorized by DEZCTOP;
- any other cause not related to a product defect in materials or workmanship;
- shipping or transport damage (claims must be made with the carrier);
- wear and tear from normal use.
DEZCTOP does not warrant that this product will meet your requirements. It is your responsibility to determine the suitability of this product for your purpose.
EXCLUSION OF DAMAGES (DISCLAIMER)
DEZCTOP’s sole obligation and liability under this warranty is limited to the repair or replacement of a defective product at our option. DEZCTOP shall not, in any event, be liable for any incidental or consequential damage, including but not limited to damages resulting from interruption of service and loss of data, business, or for liability in tort relating to this product or resulting from its use or possession.
LIMITATIONS OF IMPLIED WARRANTIES
There are no other warranties, expressed or implied, including but not limited to those of merchantability or fitness for a particular purpose. The duration of implied warranties is limited to the warranty period specified in Paragraph II.
TO OBTAIN TECHNICAL SUPPORT
If you have already referenced the user guide of your products and still need help, please contact us via [email protected] or check FAQs (in Supports) on DEZCTOP website dezctop.com.
SUPPORT & SERVICE
If you have any other questions or problems with DEZCTOP product you
purchased, please contact us by e-mail DEZCTOP Customer Support ( [email protected] ).
Please include a detailed explanation and take some photos of your problem and your proof of purchase.
For comments and suggestions, you can also e-mail [email protected]. For more information about DEZCTOP, please visit us online. DEZCTOP Website:
dezctop.com
DEZCTOP Corporation LTD. - Your desk, your way.
