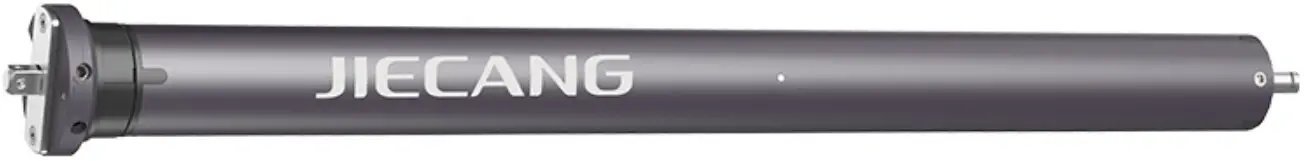

JIECANG AC Tubular Motor with Mechanical Limit User Manual
Product Info
Working Temperature

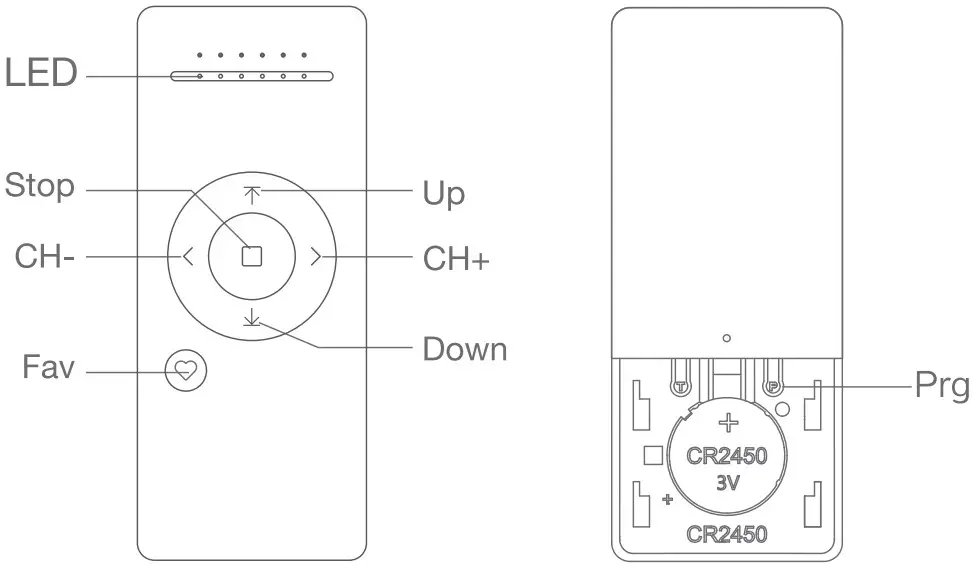

Remote Controller Buttons

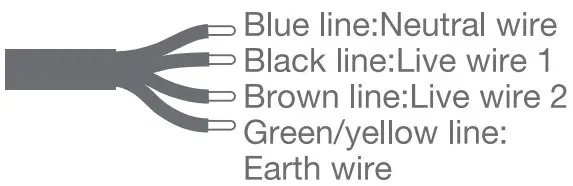

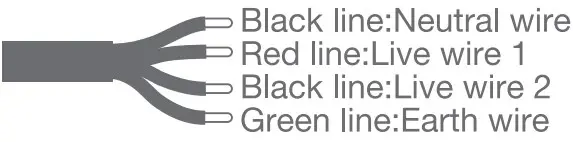

Power Options
Caution
- The power supply is AC supply.
- Please confirm the rated voltage and frequency according to the nameplate when using it.
- One motor cannot be connected to two switches or external receivers at the same time.
- Two motors cannot be connected in parallel to the same switch or external receiver.
- The motor cannot be immersed in liquid for use.
- Please do not use heavy objects or sharp objects to damage the motor.
- Do not lift the motor by grabbing and pulling the power wire.
Instructions
Upper and Lower limits Setting

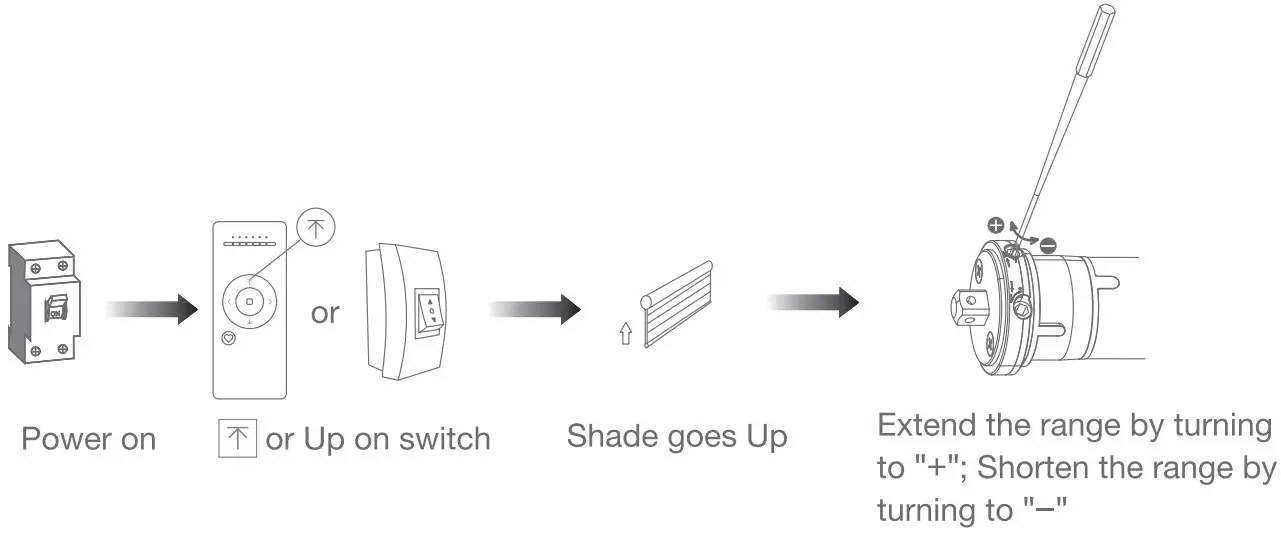

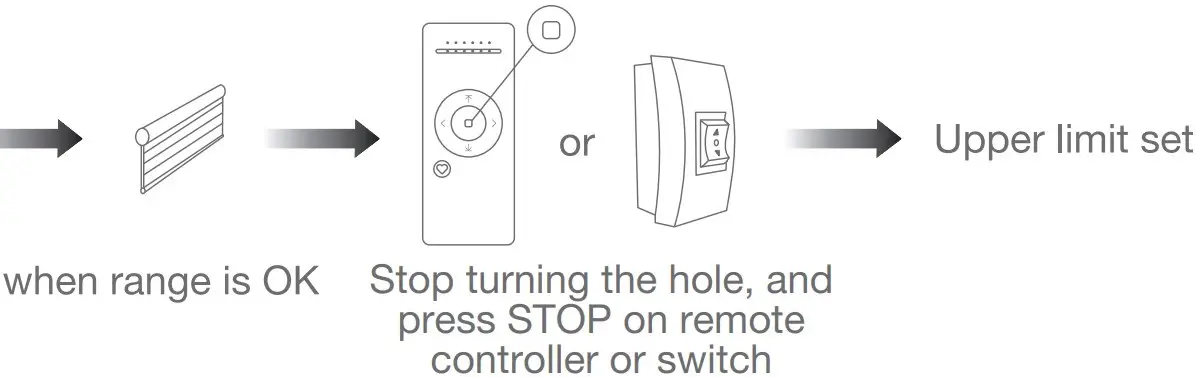

Upper limit

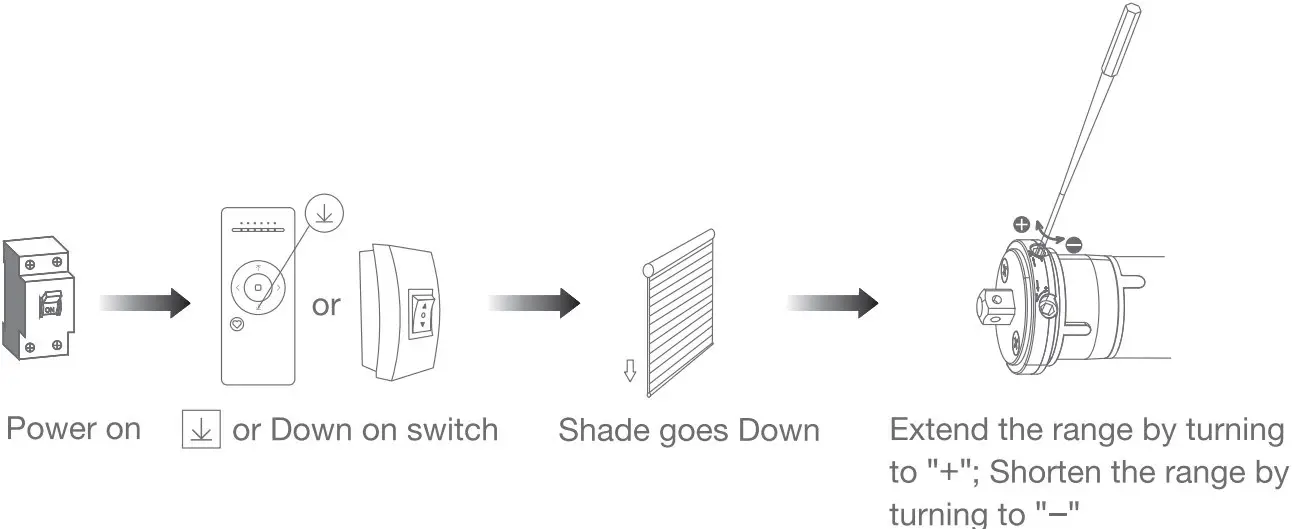

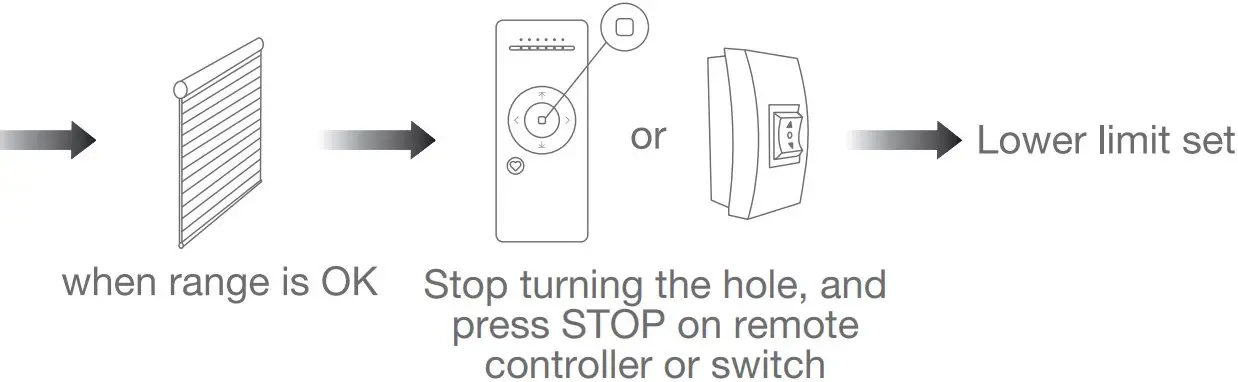

Lower limit
Note: Use remote controller to operate the motor if an external receiver is connected. If external switch is connected, operate the motor directly by the switch. When motor is not working, do not turn the hole with hexdriver.
Troubleshooting
| Fault | Cause | Solution |
| The motor runs only towards in one directionafter powering on | Inside limit switch of motor doesn’t open | Turn the crown and driving adaptor in the reverse direction |
| The motor does not run or start slowly | 1.Low voltage2.Wrong wire connection 3.Overloading4.Wrong installation | 1.Adjust the voltage to rated data2.Correct the wire connection 3.Put the suitable weight for roller shade4.Reinstall the tubular motor |
| The motor suddenly stop | The motr has exceeded termal overheat protection (4 minutes) | Wait for the motor to cool down for approximately 20 minutes |
| The motor makes a strange noise when it runs | 1.The crown and drive adapter are not well adapterd to tube2•The driving tube is too long, cused the brackets are too tightly | 1.Change correct size crown and drive adapter2.If idler is active, make driving tube shorter toavoid the tight status |
