Amp35b Dc Tubular Motor User Manual

            AMP35B

Fields of Application

Roller

Specifications

Working temperature: -10º C ~ +50º C
Input Voltage: USB 5V 1A / USB 5V 2A
Maximum Running Time: 6 minutes

Attention

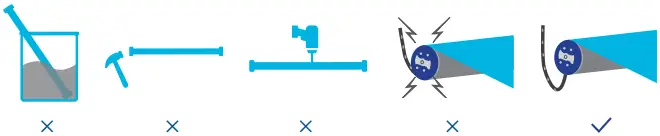

Never drop, knock, drill or submerge the motor. Keep the power cable in the proper position as shown below.

Read all safety instructions before installation.

Incorrect installation can lead to serious injury and will void manufacturer’s liability and warranty.

Safety Instructions

1. Do not expose motor to humid, damp, or extreme temperature conditions.
2. Do not drill into motor.
3. Do not cut the antenna. Keep it clear from metal objects.
4. Do not allow children to play with this device.
5. If the power cable or connector is damaged, do not use.
6. Ensure the correct crown and drive adaptor are used.
7. Ensure the power cable and aerial is clear and protected from moving parts.
8. Cable routed through walls should be properly isolated.
9. Motor is to be mounted in horizontal position only.
10. Before installation, remove unnecessary cords and disable equipment not needed for powered operation.
11. Installation and programming should be performed by a qualified professional. Use or modification outside the scope of these instructions may void warranty

Do not dispose of in general waste.
Please recycle batteries and damaged electrical products appropriately.

Please scan QR code to see more
AMP™ product information

Charging Instructions

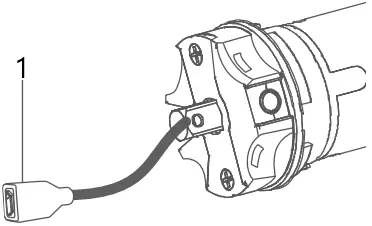

1. Micro-USB Port

This motor has a built in Li-ion battery pack with integrated charge management.
Max power input for recharging: 5V 2A.
Before first use please charge motor for 6 hours using a 5V charger.
During operation, when the motor starts, the buzzer will beep 10 times, indicating a low-voltage alarm and needs to be charged.
During operation, if the voltage is detected to be too low, the battery stops running and needs to be recharged.

Rechargeable Battery

Blinking red:
Low battery alert

Blinking green:
Charging in process

Solid green:
Battery has finished charging

P1 Button Instructions

1 Test Motor
Happening as you press for 1 second  Press P1 Less than 1 sec.		when released Motor Response: Wakes & Runs
2 Activate Pairing Mode
Happening as you press for 2 seconds Press P1 Approx. 2 sec.	Until Shade: Jog x1	when released Motor Response:Beep x1
3 Sleep Mode
Happening as you press for 6 seconds Press P1 Approx. 6 sec.	Until Shade:Jog x2	when released Motor Response:Beep x2
4 Reverse Direction
Happening as you press for 10 seconds Press P1 Approx. 10 sec.	Until Shade:Jog x3	when released Motor Response:Beep x3
5 Reset To Factory Settings
Happening as you press for 14 seconds Press P1 Approx. 14 sec.	Until Shade:Jog x4	when released Motor Response:Beep x4

Button Instructions

1. Micro-USB Port
2. P1 button (LED Light)
3. Lower Channel
4. LCD Display
5. Up
6. Stop
7. Down
8. Higher Channel
9. P2
10. P2
11. Switch

Essential Settings
The steps in factory mode must be completed to ensure proper operation.

1. Pair / Unpair Remote Control

a. Press “P1” button (about 2 sec) on P1 the motor head until motor jog x1 and beep x1.

Action on Motor

Motor Response

b. In the next 10 secs, press and hold “Stop” button on the remote control until motor jog x2 and beep x3.

Action on Remote Control

Motor Response

* Repeat the same procedure to unpair remote control.

2. Change Motor Direction (if necessary)

Press “Up” or “Down” button to check if the shade moves in the desired direction.

If you need to reverse the direction, press and hold (about 2 sec) “Up” and “Down” buttons simultaneously until motor jog x1 and beep x1.

Action on Remote Control

Motor Response

*The operation is only valid when there are no limits. If the motor has already set the upper and lower limit, then you can only switch direction by pressing P1 button (See P1 button instructions).

3. Setting the Upper and Lower Limits

3.1 Set Upper Limit

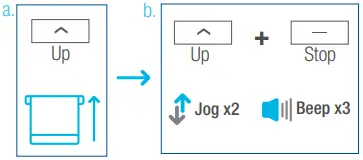

a. Press “Up” button to raise the shade, then press “Stop” button when it is in the desired upper limit.

b. Press and hold (about 2 sec) “Up” and “Stop” buttons simultaneously until motor jog x2 and beep x3.

Action on Remote Control

Motor Response

3.2 Set Lower Limit

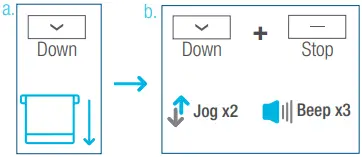

a. Press “Down” button to lower the shade, then press “Stop” button when it is in the desired lower limit.

b. Press and hold (about 2 sec) “Down” and “Stop” buttons simultaneously until motor jog x2 and beep x3.

Action on Remote Control

Motor Response

*If you exit the limit setting status before you finish the limit settings, the motor will take the previous existing limits.

Factory Mode Complete User Mode Begins

4. Adjust Limits

4.1 Adjust the Upper Limit

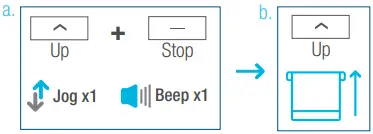

a. Press and hold (about 5 sec) “Up” and “Stop” buttons simultaneously until motor jog x1 and beep x1.

b. Use “Up” button to raise the shade to the desired highest position, and use “Up” or “Down” button to do the final adjustment if necessary.

Action on Remote Control

Motor Response

c. Press and hold (about 2 sec) “Up” and “Stop” buttons simultaneously until motor jog x2 and beep x3.

Action on Remote Control

Motor Response

4.2 Adjust the Lower Limit

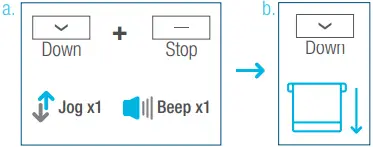

a. Press and hold (about 5 sec) “Down” and “Stop” buttons simultaneously until motor jog x1 and beep x1.

b. Use “Down” button to lower the shade to the desired lowest position, and use “Up” or “Down” button to do the final adjustment if necessary.

Action on Remote Control

Motor Response

c. Press and hold (about 2 sec) “Down” and “Stop” buttons simultaneously until motor jog x2 and beep x3.

Action on Remote Control

Motor Response

5. Favorite Position

5.1 Set Favorite Position

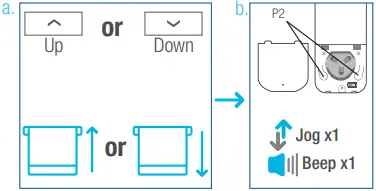

a. Use “Up” or “Down” button to move the shade to desired Favorite position.

b. Press one “P2” button on the back of remote control until motor jog x1 and beep x1.

Action on Remote Control

Motor Response

c. Press and hold (about 2 sec) “Stop” button until motor jog x1 and beep x1.

d. Once more, press and hold (about 2 sec) “Stop” button until motor jog x2 and beep x3.

Action on Remote Control

Motor Response

5.2 Send Shade to Favorite Position

Press and hold (about 2 sec) “Stop” button, motor will move to Favorite position.

Action on Remote Control

Shade Response

5.3 Delete Favorite Position

a. Press one “P2” button until motor jog and beep x1.

b. Press and hold (about 2 sec) “Stop” button until motor jog and beep x1.

Action on Remote Control

Motor Response

c. Once more, press and hold (about 2 sec) “Stop” button until motor jog x1 and long beep x1.

Action on Remote Control

Motor Response

6. Roller Mode and Sheer Mode

6.1 Roller Shade Mode – continue movement after a short press – Default Mode

a. Press and hold (about 5 sec) “Up” and “Down” buttons simultaneously until motor jog x1.

Action on Remote Control

Motor Response

b. Press and hold (about 2 sec) “Stop” button until motor jog x2 and beep x3.

Action on Remote Control

Motor Response

6.2 Sheer Shade Mode – jog movement after a short press (continue movement after a long press)

a. Press and hold (about 5 sec) “Up” and “Down” buttons simultaneously until motor jog x1.

Action on Remote Control

Motor Response

b. Press and hold (about 2 sec) “Stop” button until motor jog x1 and beep x1.

Action on Remote Control

Motor Response

7. Add or Remove Additional Remote

7.1 Using Current Remote Control

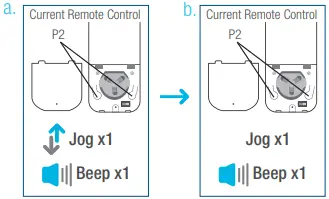

a. On the current remote control, press one “P2” button until motor jog x1 and beep x1.

b. Once more, on the current remote control, press one “P2” button until motor jog x1 and beep x1.

Action on Remote Control

Motor Response

c. On the New remote control, press one “P2” button until motor jog x2 and beep x3.

Action on Remote Control

Motor Response

*Repeat the same procedure to remove additional remote control.

7.2 New Remote Control

Follow instructions under the section 1.
Pair / Unpair Remote Control

8. Adjust Motor Speed

8.1 Acceleration Speed

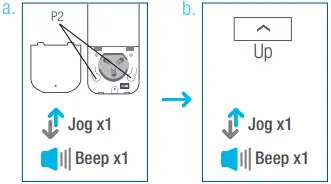

a. Press one “P2” button until motor jog x1 and beep x1.

b. Press “Up” button until motor jog x1 and beep x1.

Action on Remote Control

Motor Response

c. Once more, press “Up” button until motor jog x2 and beep x1.

Action on Remote Control

Motor Response

8.2 Deceleration Speed

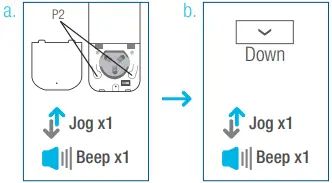

a. Press one “P2” button until motor jog x1 and beep x1.

b. Press “Down” button until motor jog x1 and beep x1.

Action on Remote Control

Motor Response

c. Once more, press “Down” button until motor jog x2 and beep x1.

Action on Remote Control

Motor Response

*If the motor has no response, it already has a Maximum or Minimum speed.

Declarations

U.S. Radio Frequency FCC Compliance

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

ISED RSS Warning:

This device complies with Innovation, Science and Economic Development Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.
