Z8, Z8 MG, Z8 TG ATX MID Tower Computer Case
User Manual
Ver. 041120
* To ensure safe and easy installation, please read the following precaution.
* Product design and specifications may be revised to improve quality and performance without notice.
Precautions
- Read this manual carefully before installing.
- Check the product and components before installing. If you find any abnormality, contact the location where you purchased the product for a replacement or refund.
- Wear gloves to prevent accidents when installing the product.
- Severe damage may occur when mounting the system, so do not apply excessive force.
- Connecting the cable incorrectly may cause a fire due to a short circuit. Make sure to refer to the manual when connecting the cable.
- Be careful not to block the ventilation hole of the product when using the system.
- Avoid locations with direct sunlight, water, moisture, oil, and excessive dust. Store and use the product in a well-ventilated location.
- Do not wipe the surface of the product using chemicals. (organic solvents such as alcohol or acetone)
- Do not insert your hand or other object into the product during operation, as this may injure your hand or damage the object.
- Store and use the product out of children’s reach.
- Our company assumes no responsibility for any problem that occurs due to the use of the product for purposes other than its designated purposes and/or the carelessness of the consumer.
- The exterior design and specifications of the product are subject to change without prior notice to consumers for quality improvement.
Specifications
| Model | Z8 I | Z8 MS | I Z8 TG | ||
| Case Form Factor | ATX Mid-Tower | ||||

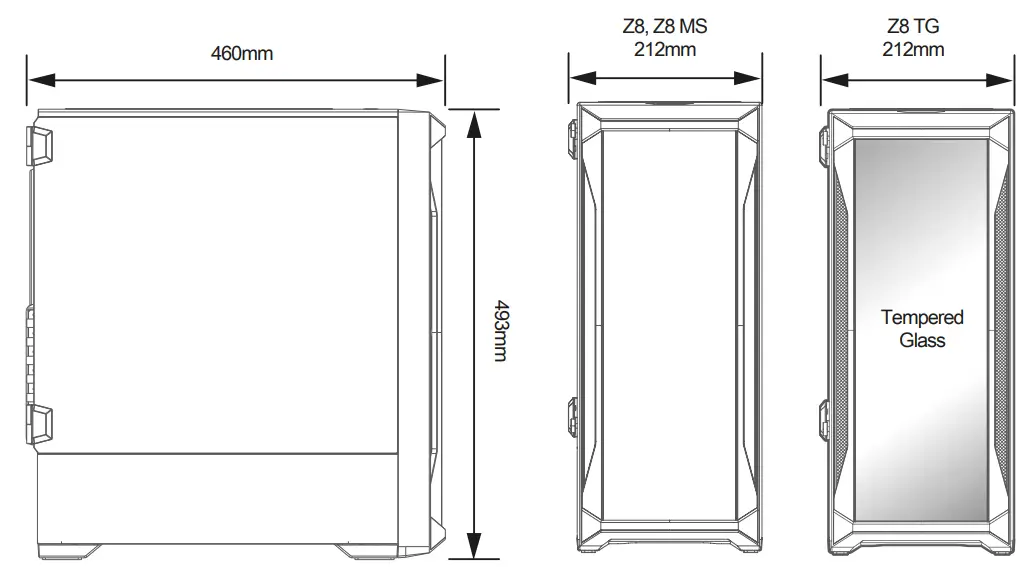

| Dimensions | 460 x 212 x 493(H)mm | ||||
| Weight | 6.3kg | I 6.8kg | |||
| Case Materials | Tempered Glass, Plastic, Steel | ||||
| Motherboard Support | E-ATX(-280mm) / ATX / mATX / Mini-ID( | ||||
| Maximum VGA Length | 350mm | ||||
| Maximum CPU Cooler Height | 160mm | ||||
| Maximum PSU Length | 180mm | ||||
| PCI Expansion Slots | 7 | ||||
| Drive Bays | 2 x Combo (3.5″ or 2.5″, Toolless ), 4 x 2.5″ | ||||
| Fan Support | Top | 2 x 120mm / 2 x 140mm | |||
| Front | 3 x 120mm / 3 x 140mm | ||||
| Rear | 1 x 120mm | ||||
| Bottom | 2 x 120mm (Remove SSD Brackets) | ||||
| Fan(s) Included | Front | 3 x 120mm | Addressable RGB 3 x 120mm | ||
| Rear | 1 x 120mm | ||||
| ARGB Controller Included | |||||
| Radiator Support | Top | 120mm / 240mm / 280mm | |||
| Front | 120mm | ||||
| Rear | 120mm | ||||
| I/0 Ports | 2 x USB3.0, 1 xUSB2.0, 1 x Headphone Jack, 1 x Microphone jack, Power Button, Reset Button, LED Button | ||||

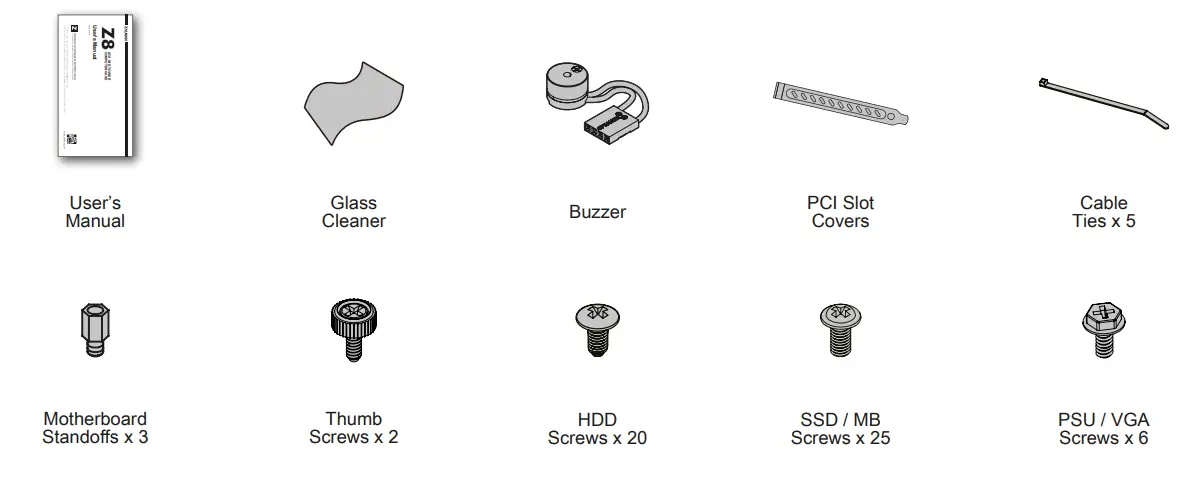

Accessories

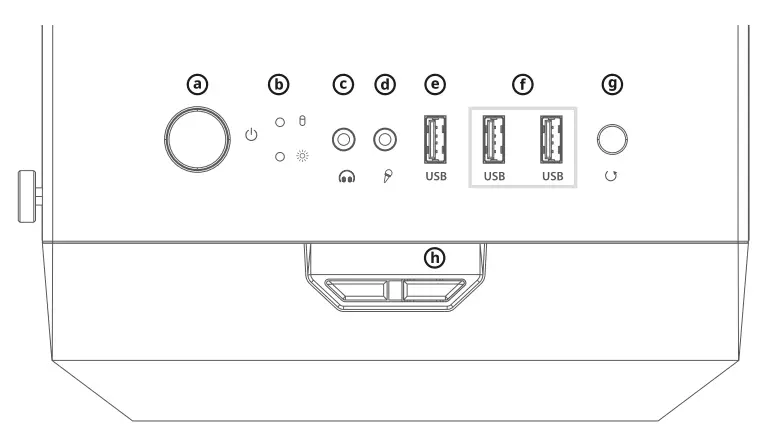

I/O Ports
| # | Part |
| ⓐ | Power Button |
| ⓑ | HDD / Power LED |
| ⓒ | Headphone Jack |
| ⓓ | Microphone Jack |
| ⓔ | USB 2.0 Port |
| ⓕ | USB 3.0 Ports |
| ⓖ | Reset Button |
| ⓗ | LED Button |

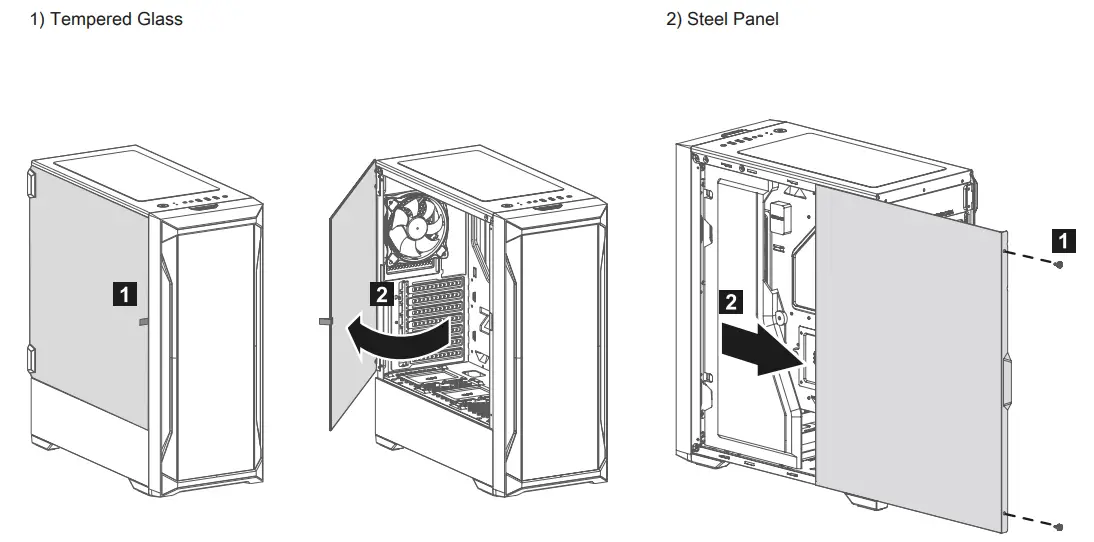

Removing the side panels

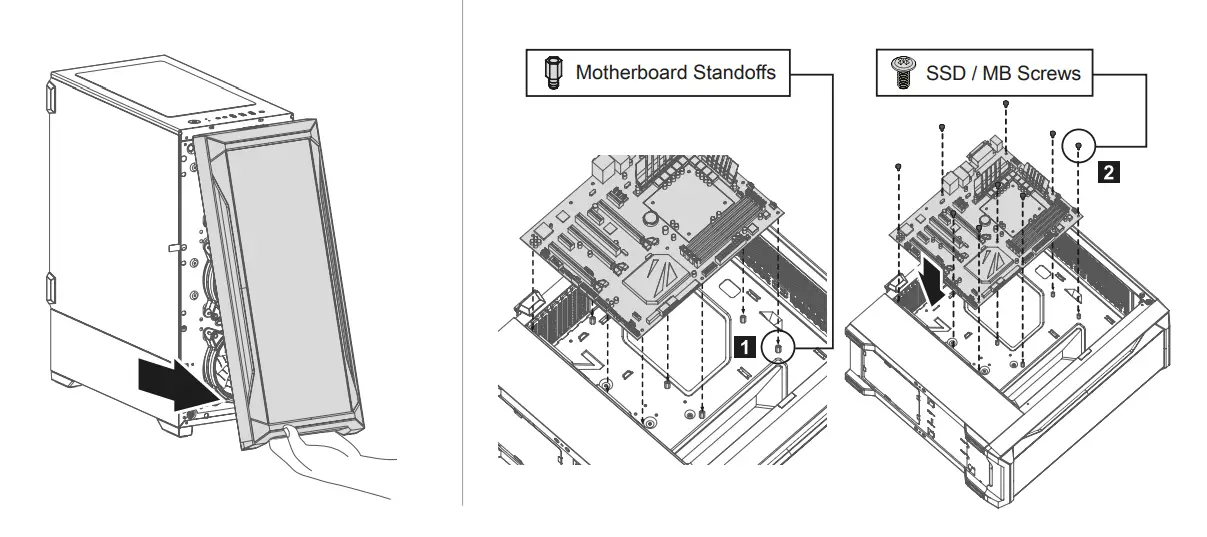

| 2. Removing the front panel | 3. Mounting the motherboard |
 | |

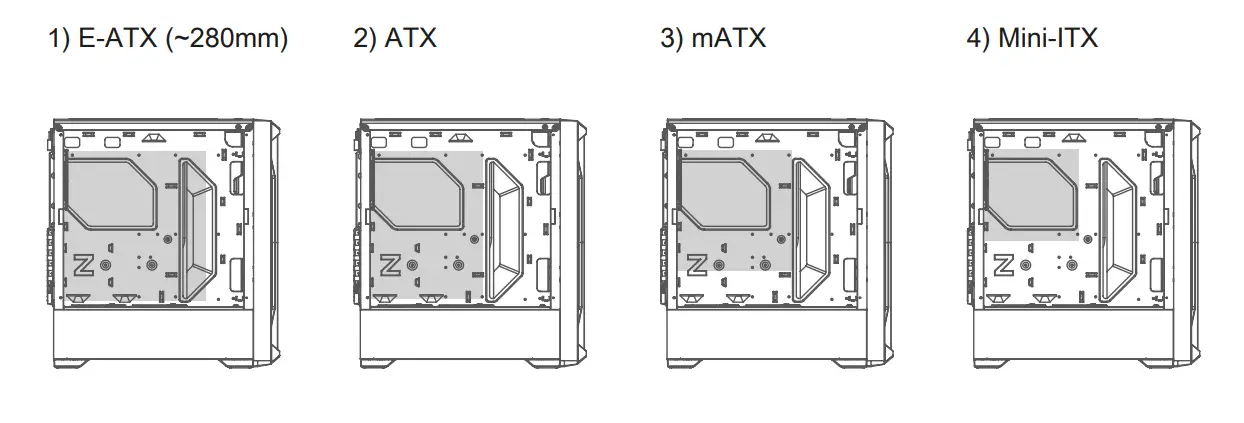

3-1. Motherboard size

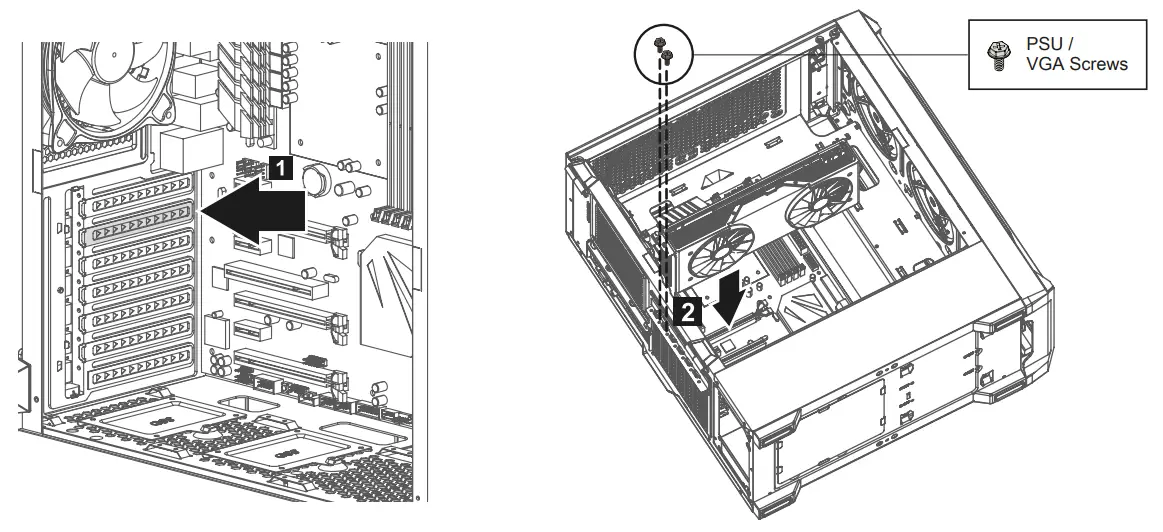

4. Mounting the PCI-E(VGA) Card

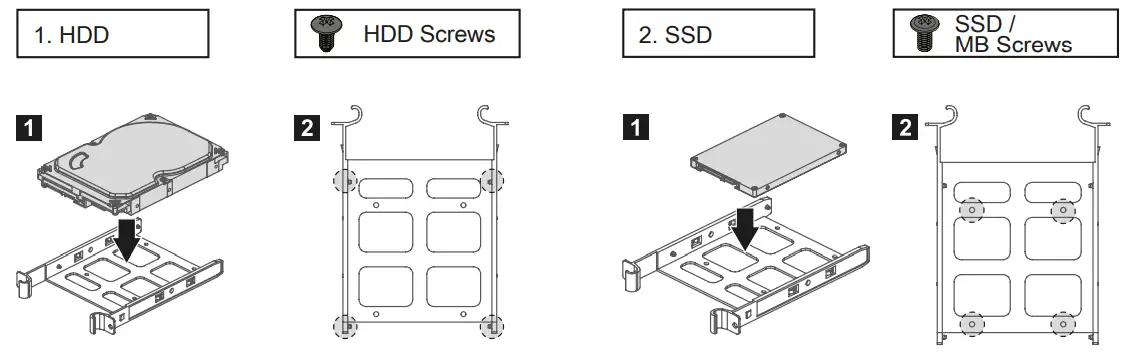

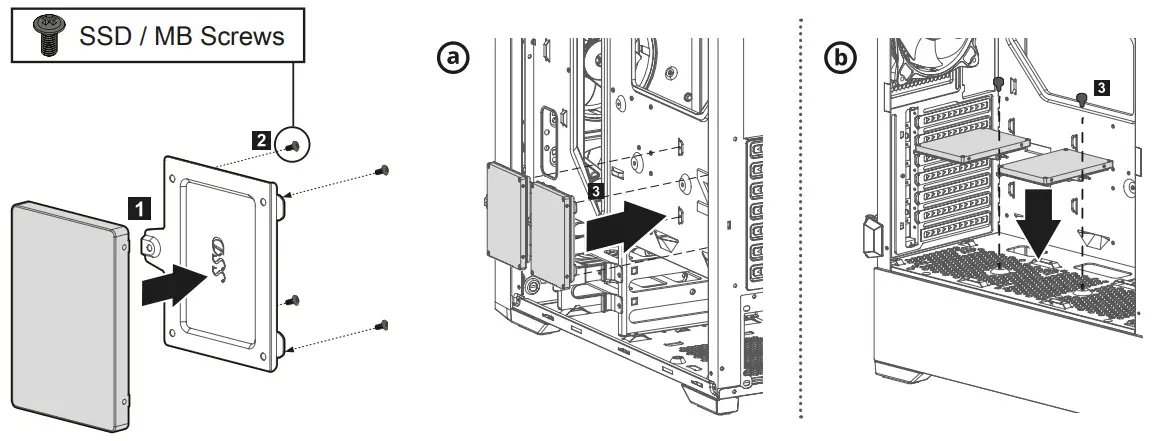

5. Mounting the 2.5” SSD

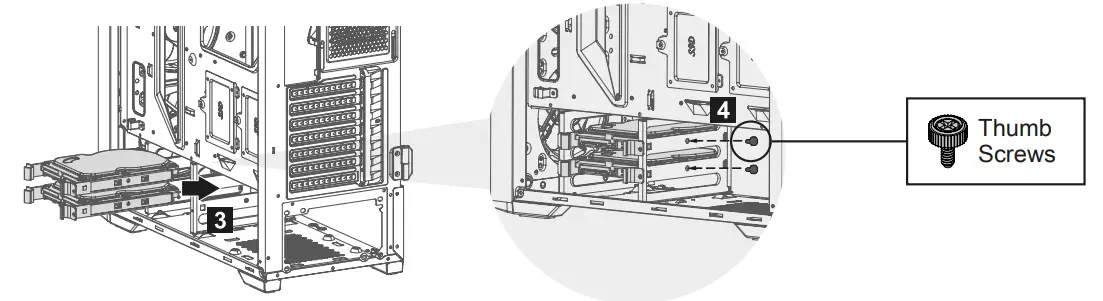

6. Mounting the 3.5″ HDD
Mounting the PSU

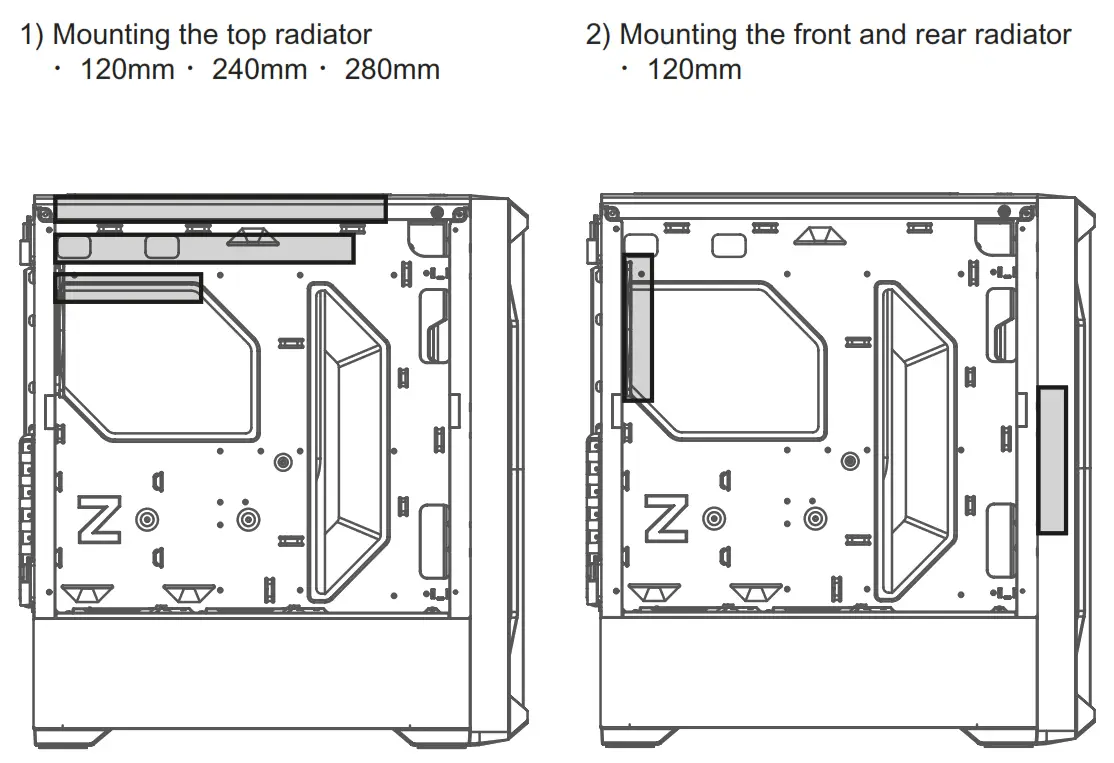

8. Mounting the radiator
Fans Included / Specifications
| Z8 Front (120mm Fan) RPM : 1,100 ±15% Input : 12V  0.16ASleeve Bearing 4-Pin | Z8 MS, Z8 TG Front (ARGB 120mm Fan) RPM : 1,300 ±15% Input : (Fan)12V 0.16A(LED)5V 0.5AHydro Bearing 4-Pin |

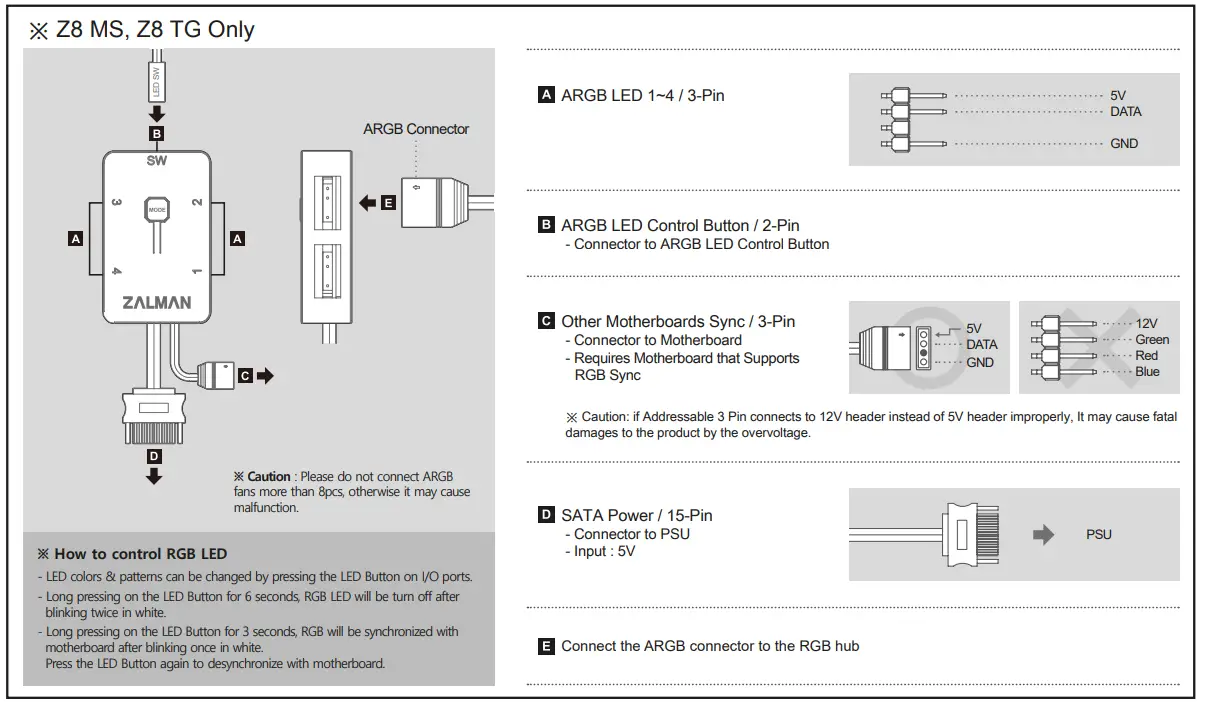

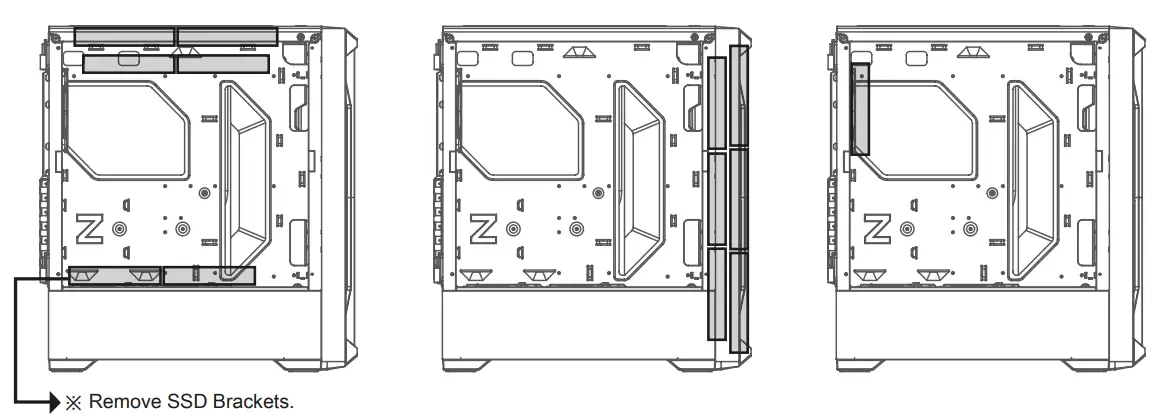

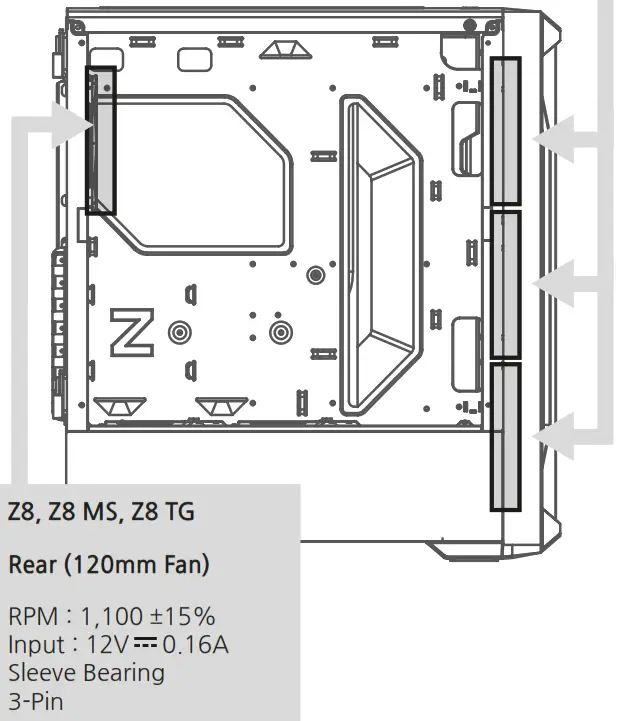

10. Mounting the fans
| 1) Mounting the top & bottom fans ・2 x 120mm ・2 x 140mm | 2) Mounting the front fans ・3 x 120mm ・3 x 140mm | 3) Mounting the rear fan ・1 x 120mm |
 | ||
11. I/O Connectors
Developed and designed by ZALMAN in Korea.
This product is protected by ZALMAN’s pending or registered patents.
zalman.com
zalmansvc.com
