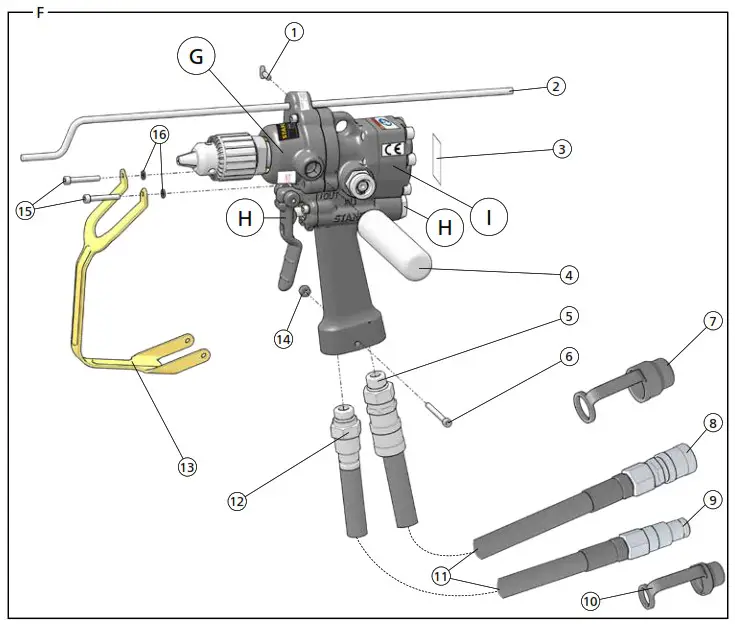

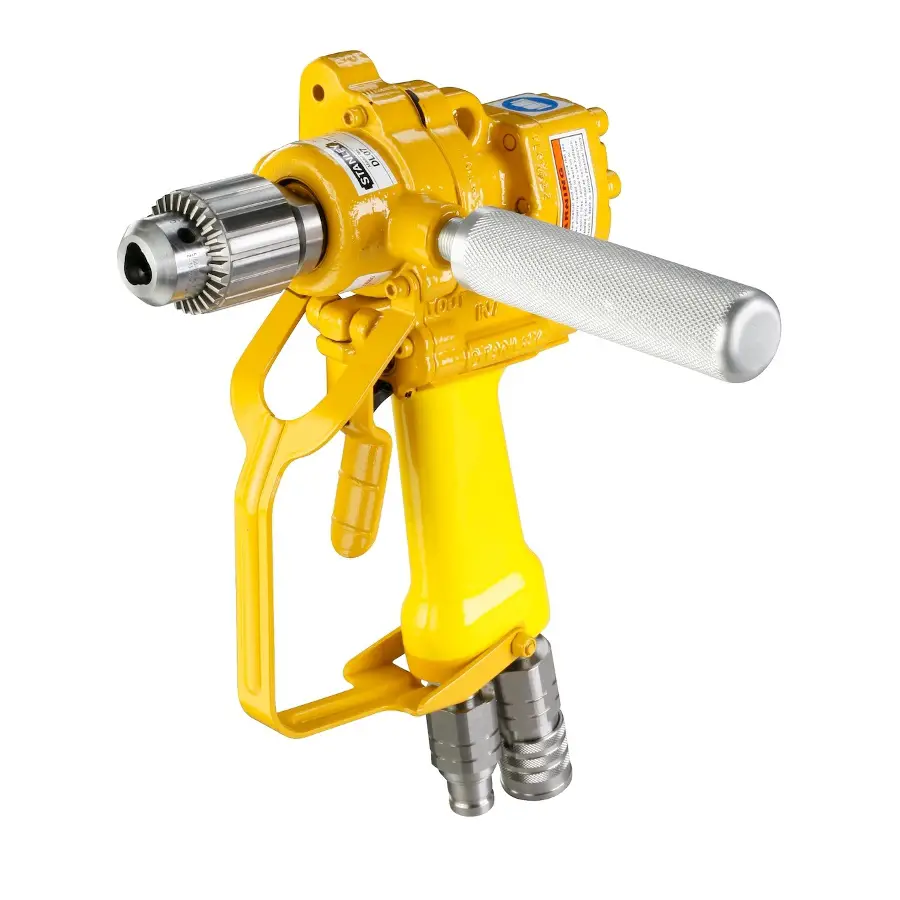

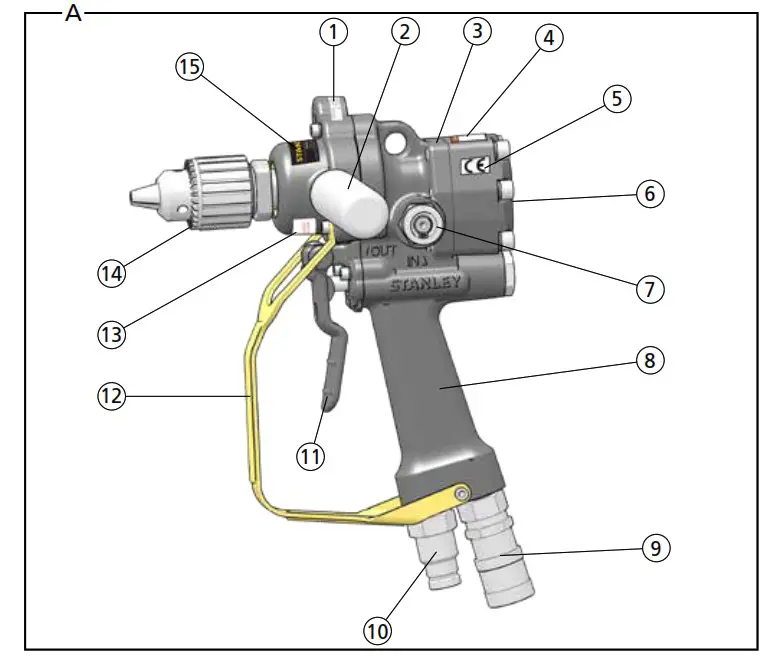

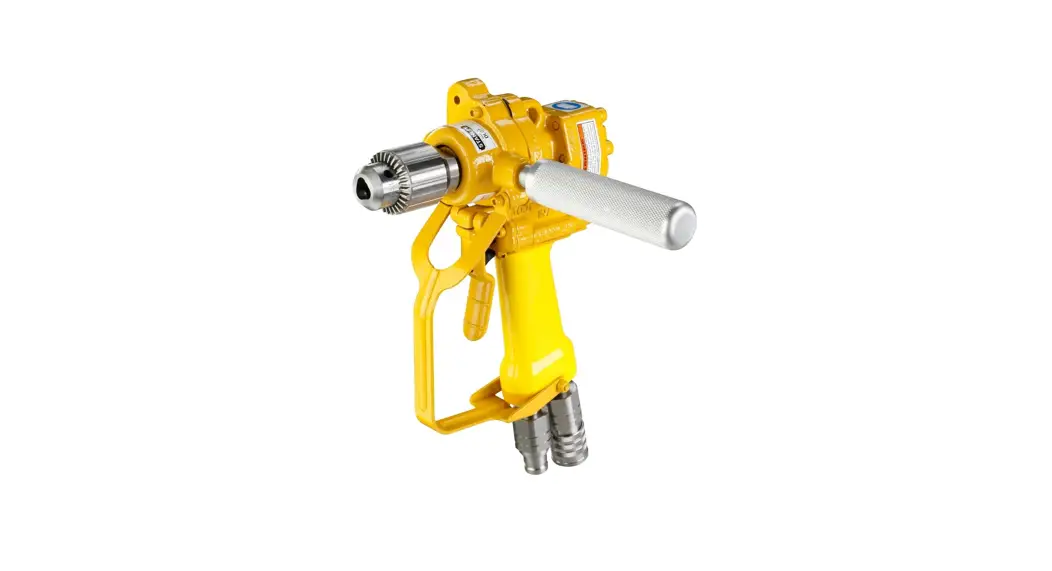

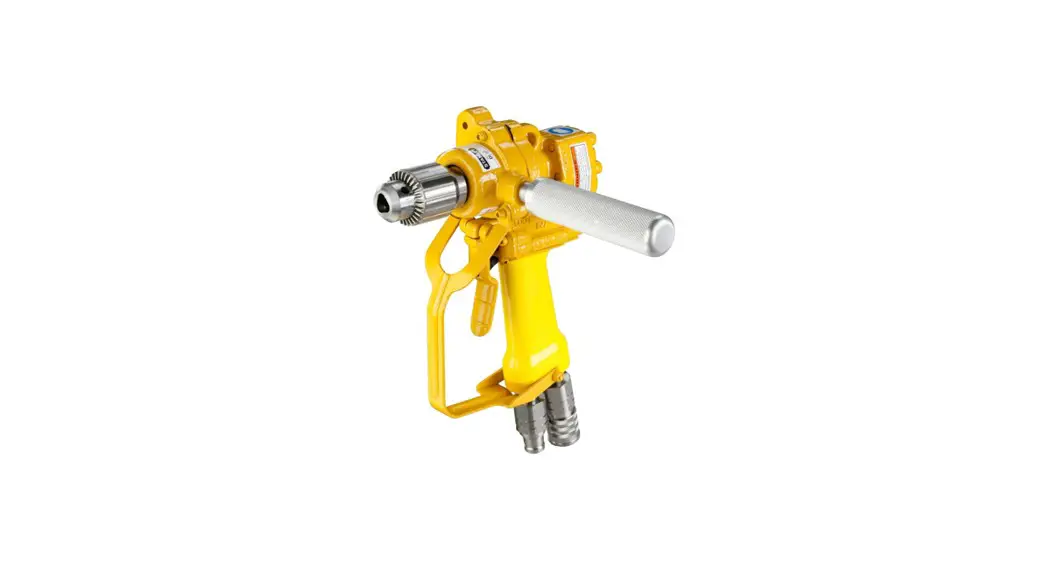

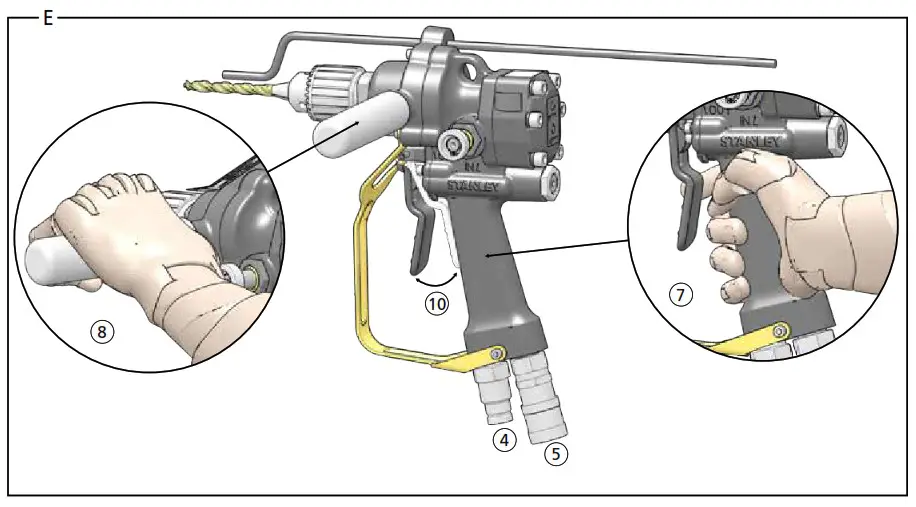

DL07 Parts Illustration – Detail F
ITEM	P/N	DESCRIPTION
1	38685	Depth Gauge Screw – Models DL07552B, DL07552M, DL075525, DL07572B, DL07572S.
2	38676	Depth Gauge – Models DL07552B, DL07552M, DL07552S, DL07572B, DL075725.
3	29149	Rotation Direction Decal – CE Models
4	8130	Assist Handle
5	58856	Female Coupler – Models DL0755201, DL0765201
6	9687	Cap Screw
7	2324	Hose Cap – Model DL07552SUP
8	3972	Female Coupler – Models DL075525, DL07552SUP, DL07572S
9	3973	Male Coupler – Models DL075525, DL07552SUP, DL07572S
10	3288	Hose Cap – Model DL07552SUP
11	56725	Hose (Parker)
	66727	Hose (Aeroquip)
12	58857	Male Coupler- Models DL0755201, DL0765201
13	60710	Trigger Guard
14	7724	Nylock Nut
15	62228	Cap Screw
16	9623	Lockwasher
17	60792	DL07 Seal Kit – Not Shown (*In seal kit)

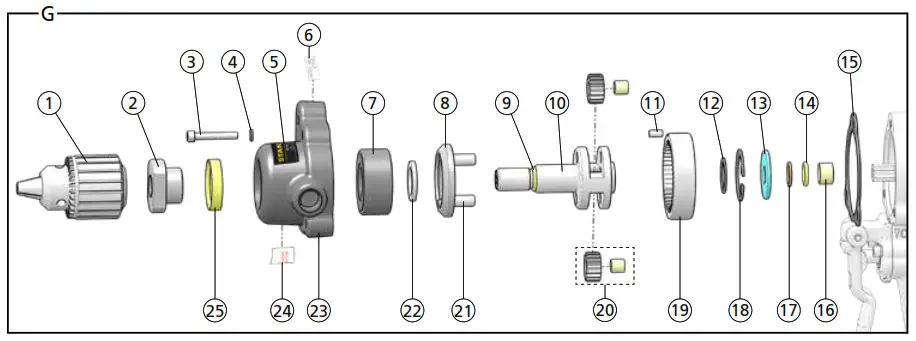

DLO7 Gear Box Illustration – Detail G
ITEM	P/N	DESCRIPTION
1	9624	1/2 Inch Chuck
	27628	5/8 Inch Chuck – Models DL07572B, DL075725
2	9778	Seal Nut
3	62228	Cap Screw
4	9623	Lock Washer
5	74696	Tool Name Tag
6	29148	RPM Decal
7	8175	Bearing
8	8163	Bearing Keeper
9	354	0-Ring*
10	9779	Output Shaft
11	563	Roll Pin
12	8440	Retaining Ring
13	20767	Seal Back-up Washer
14	354	0-Ringi,
15	58635	Gasket*
16	20758	Bushing
17	13995	Back-up Ring*
18	6635	Retaining Ring
19	8166	Ring Gear
20	8165	Planet Gear Assembly
21	8161	Planet Shaft
22	8162	Shaft Keeper
23	58403	Gear Housing
24	11354	Open Center / Closed Center Decal
25	9621	Shaft Seal*
26	60792	DL07 Seal Kit – Not Shown (*In seal kit)

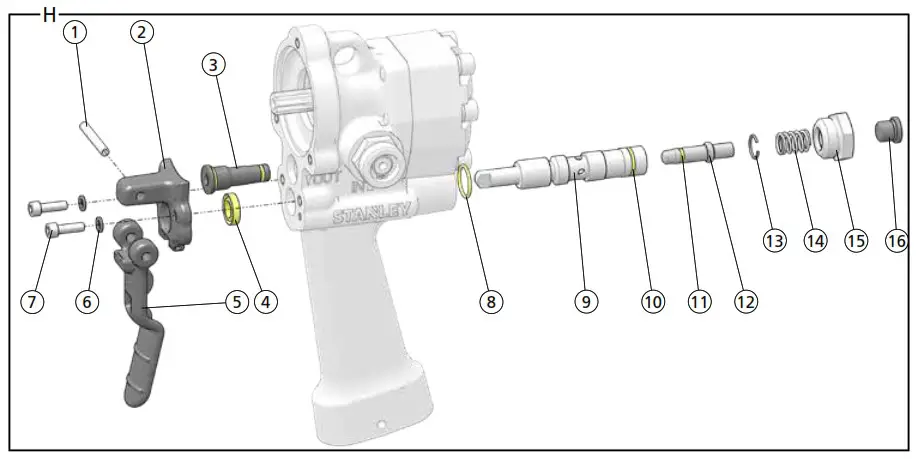

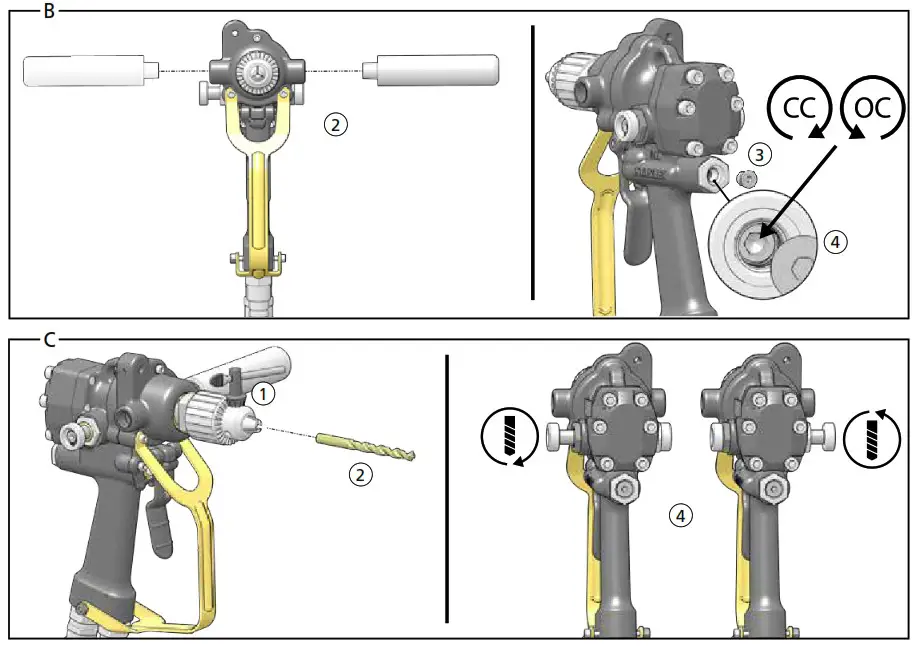

DLO7 Trigger & OC/CC Valve Illustration – Detail H
ITEM	P/N	DESCRIPTION
1	7970	Roll Pin
2	60678	Trigger Mount Casing
3	58462	Relief Cartridge Plug Assembly
4	49139	Seal Wiper*
5	60677	Trigger
6	9623	Lock Washer
7	62229	Cap Screw
8	7627	0-Ring*
9	48986	Valve Spool Assembly (Includes 00026, 07626, 16070, 48987, 48989, 48990, 49132)
10	7626	0-Ring*
11	26	0-Ring*
12	48986	Selector Screw (Must be purchased as part of the valve spool assembly)
13	16070	Retaining Ring
14	65480	Spring
15	56758	Spring Cap (Loctite 242)
16	350041	Hex Plug
17	60792	DLO7 Seal Kit – Not Shown (*In seal kit)

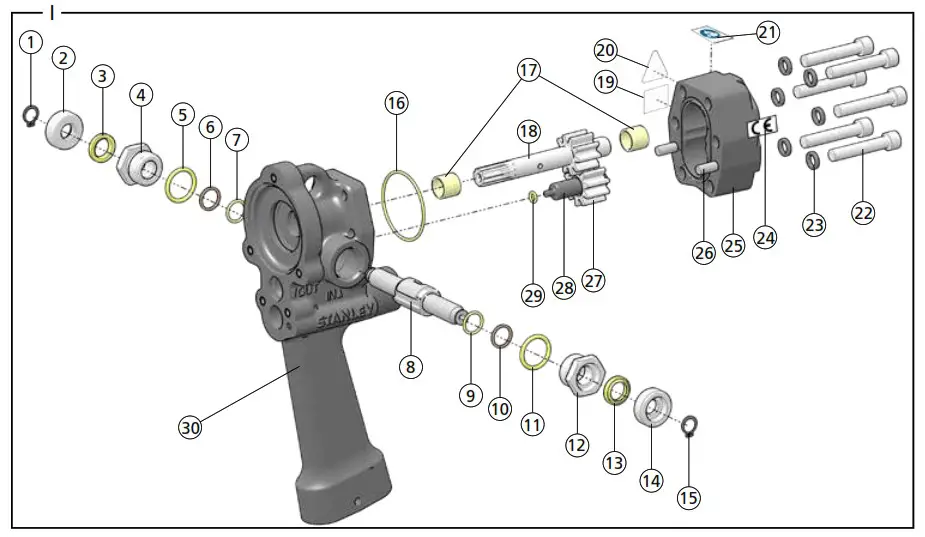

DLO7 Reversing Valve & Hydraulic Motor Illustration – Detail I
ITEM	P/N	DESCRIPTION
1	56764	Retaining Ring
2	56757	End Cap
3	56747	Seal Wiper*
4	56749	Seal Cap
5	1604	0-Ring*
6	7224	Back-up 0-Ring*
7	175	0-Ring*
8	56765	Reversing Spool
9	175	0-Ring*
10	7224	Back-up 0-Ring*
11	1604	0-Ring*
12	56749	Seal Cap
13	56747	Seal Wiper*
14	56757	End Cap
15	56764	Retaining Ring
16	1262	0-Ring*
17	5207	Bushing
18	24271	Main Shaft
19	88451	Sound Power Decal – Model DL0755201
