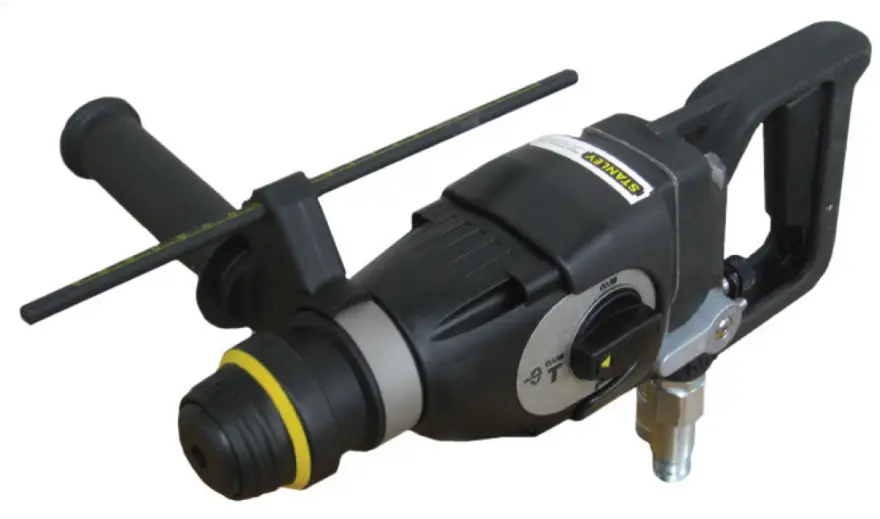

STANLEY HD01 Hammer Drill
STANLEY HD01 Hammer Drill

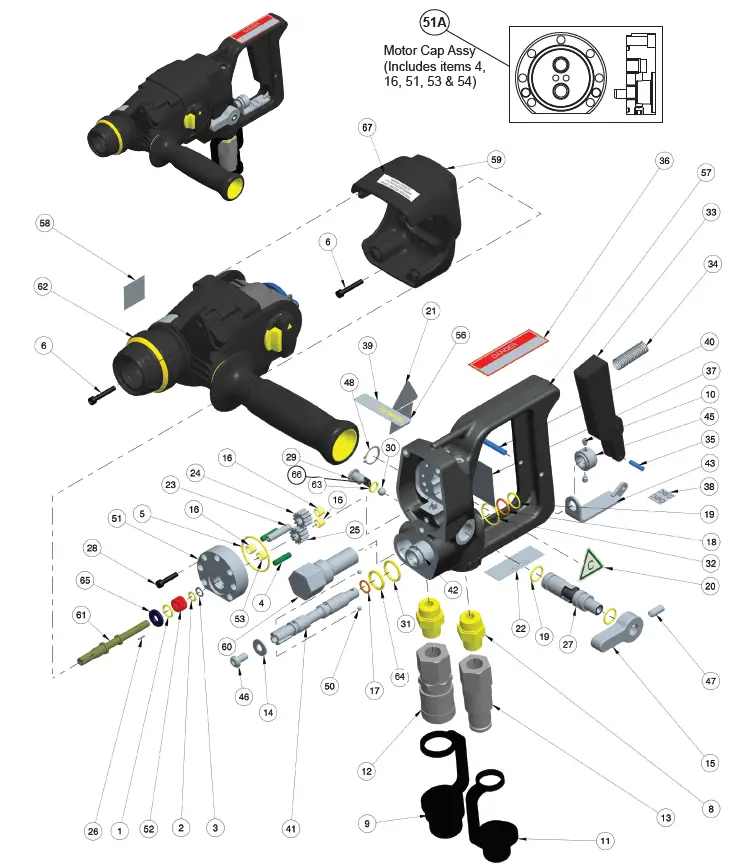

PARTS ILLUSTRATION
PARTS LIST
| ITEM | P/N | QTY | DESCRIPTION |
| 1 | 00106 | 1 | * O-RING 3/8 X 1/2 X 1/16 -012 |
| 2 | 00112 | 1 | * QUAD RING 1/4 X 3/8 X 1/16 -010 |
| 3 | 00179 | 1 | MOTOR SEAL WASHER |
| 4 | 00289 | 2 | DOWEL PIN 3/16 X 3/4 LG. |
| 5 | 00621 | 1 | * O-RING 1-1/4 X 1-3/8 X 1/16 -026 |
| 6 | 00779 | 7 | HSHCS 8-32 X 1.000 |
| 7 | 00783 | 7 | PIPE PLUG (NOT PICTURED) PART OF ITEM 57 |
| 8 | 00936 | 2 | ADAPTER -8 (1/2) SAE X 3/8 NPT |
| 9 | 02324 | 1 | CAP & PLUG 1/2″ |
| 10 | 02837 | 2 | SETSCREW 10-24 X 1/4 |
| 11 | 03288 | 1 | CAP & PLUG 3/8″ |
| 12 | 03972 | 1 | COUPLER,3/8FEM.3/8NPTFL.FACESET 03971 |
| 13 | 03973 | 1 | COUPLER,3/8MALE 3/8NPT FL.FACE SET 03971 |
| 14 | 04539 | 1 | WASHER 1/4″ I.D. |
| 15 | 04939 | 1 | LEVER |
| 16 | 05205 | 3 | BUSHING, GARLOCK 04DU04 |
| 17 | 07223 | 1 | * BACK-UP RING -012 |
| 18 | 07224 | 1 | * BACK-UP RING -014 |
| 19 | 07626 | 3 | * O-RING 1/2 X 5/8 X 1/16 -014 |
| 20 | 11206 | 1 | CIRCUIT TYPE “C” STICKER |
| 21 | 11207 | 1 | CIRCUIT TYPE “D” STICKER |
| 22 | 11354 | 1 | OC/CC STICKER |
| 23 | 15890 | 1 | IDLER SHAFT |
| 24 | 15894 | 1 | IDLER GEAR |
| 25 | 15895 | 1 | DRIVE GEAR |
| 26 | 15896 | 1 | KEY |
| 27 | 15904 | 1 | REVERSING SPOOL |
| 28 | 15909 | 7 | HSHCS 8-32 X 3/4 |
| 29 | 15956 | 1 | CHECK PLUG |
| 30 | 15966 | 1 | STEEL BALL 9/32 |
| 31 | 17924 | 1 | * O-RING .644 X .818 X .087 -908 |
| 32 | 16555 | 1 | * O-RING 3/4 X 7/8 X 1/16 -018 |
| 33 | 16598 | 1 | TRIGGER |
| 34 | 16647 | 1 | COMPRESSION COIL SPRING |
| 35 | 16648 | 1 | ROLL PIN 5/32 O.D. X .625 LG. |
| 36 | 17160 | 1 | DANGER STICKER |
| 37 | 09612 | 1 | GENERAL CAUTION STICKER |
| 38 | 17162 | 1 | OC/CC STICKER |
| 39 | 76648 | 1 | TOOL NAME TAG |
| 40 | 17668 | 1 | ROLL PIN 3/16 O.D. X 1.250 LG. |
| ITEM | P/N | QTY | DESCRIPTION |
| 41 | 17811 | 1 | SPOOL OC/CC |
| 42 | —– | 1 | ON/OFF VALVE SLEEVE (PART OF ITEM 57) |
| 43 | 17815 | 1 | TRIGGER STRUT |
| 44 | —– | — | ON ITEM |
| 45 | 17817 | 1 | KNOB OC/CC |
| 46 | 17821 | 1 | 1/4-20 X 1/2 BUTTON HEAD H.S. |
| 47 | 17897 | 1 | SETSCREW 1/4-20 X .625 |
| 48 | 17904 | 1 | RETAINING RING EXTERNAL |
| 49 | 18277 | 7 | HELICOIL 8-32 UNC (NOT PICTURED) PART OF ITEM 57 |
| 50 | 21338 | 2 | STEEL BALL 5/32 |
| 51 | 23326 | 1 | MOTOR CAP |
| 51A | 23330 | 1 | MOTOR CAPASSY (INCLUDES ITEMS 4, 16, 51, 53 & 54) |
| 52 | 23327 | 1 | SEAL LINER |
| 53 | 23328 | 1 | MODIFIED DU BEARING |
| 54 | 23329 | 1 | SETSCREW (NOT PICTURED) PART OF ITEM 57 |
| 56 | 88348 | 1 | STICKER – MANUAL |
| 57 | 47451 | 1 | MAIN HOUSING ASSEMBLY INCLUDES ITEMS 7, 16, 29-32, 42, 49, & 63 |
| 58 | 81435 | 1 | SOUND POWER LEVEL STICKER |
| 59 | 72638 | 1 | ADAPTOR ASSY |
| 60 | 72728 | 1 | PRIORITY FLOW CONTROL 5 GPM |
| 61 | 72729 | 1 | MOTOR SHAFT |
| 62 | 72733 | 1 | DEWALT GEARBOX ASSEMBLY |
| 63 | 350792 | 1 | * O-RING .301 X .365 X .064 -903 |
| 64 | 350810 | 1 | * O-RING 9/16 X 3/4 X 3/32 -113 |
| 65 | 72915 | 1 | WASHER |
| 66 | 01602 | 1 | COMPRESSION COIL SPRING |
| 73018 | 1 | LOCK-OUT KIT (SHIPS UNINSTALLED) | |
| 28323 | 1 | CE DECAL-NOT PICTURED , ATTACHED ON SIDE OF GEARBOX. | |
| 67 | 88344 | 1 | IMPORTER DECAL |
DENOTES PART IN SEAL KIT
SEAL KIT PART NUMBER 72864
HD01 SERVICE KIT 72661 (INCLUDES ITEM NUMBER 6, 59, 60, 61, and 62)
