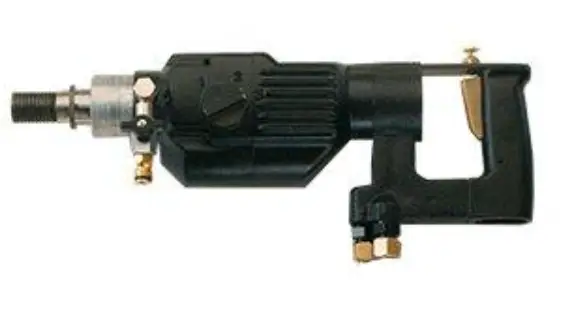

STANLEY CD10 Core Drill

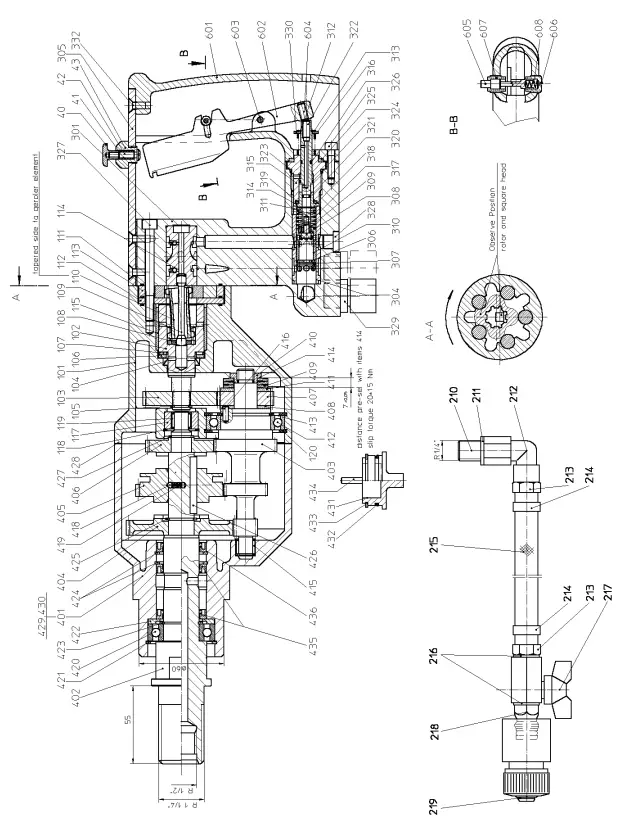

CD10 PARTS ILLUSTRATION
CD10 PARTS LIST
| ITEM | P/N | QTY | DESCRIPTION |
| TG4 | 88347 | 1 | COMPOSITE SAFETY DECAL (NOT SHOWN) |
| A10 | 40507 | 1 | HOSE SET WITH QUICK COUPLERS (NOT SHOWN) |
| TG5 | 76482 | 1 | CD10 NAME TAG (SEE PAGE # 6) |
| AY1 | 41249 | 1 | MOTOR ASSEMBLY (INCLUDES ITEMS 101 – 210) |
| 101 | 41253 | 1 | MOTOR HOUSING |
| 102 | 41254 | 1 | OUTPUT SHAFT |
| 103 | 41255 | 1 | SPUR GEAR |
| 104 | 41256 | 1 | SHAFT SEALING |
| 105 | 41257 | 1 | SNAP RING |
| 106 | 41258 | 1 | THRUST WASHER |
| 107 | 41259 | 1 | THRUST BEARING |
| 108 | 41260 | 1 | SHAFT SPACER |
| 109 | 41261 | 1 | SPOOL DRIVE |
| 110 | 41262 | 1 | DRIVE |
| 111 | 41263 | 3 | O-RING * |
| 112 | 41264 | 1 | SPACER PLATE |
| 113 | 41265 | 1 | GEROLER ASSY |
| 114 | 41266 | 1 | SPOOL |
| 115 | 41267 | 1 | BEARING |
| 117 | 41624 | 1 | BEARING RING |
| 118 | 41268 | 1 | SNAP RING |
| 119 | 41269 | 1 | NEEDLE BEARING |
| 120 | 41270 | 1 | SNAP RING |
| AY2 | 41252 | 1 | CENTERING AID HANDLE ASSY (INCLUDES ITEMS AY3 CENTERING AID & AY4 CLAMP CLIP ASSY) |
| AY3 | 41608 | 1 | CENTERING AID (INCLUDES ITEMS 259 & 260) |
| 259 | 41609 | 1 | GAS PRESSURE SPRING W/BUFFER (INCLUDES ITEM 261) |
| 260 | 41611 | 1 | EXTENSION ROD |
| 261 | 56607 | 1 | BUFFER (INCLUDED WITH ITEM 259 GAS PRESSURE SPRING W/ BUFFER) |
| AY4 | 41612 | 1 | CLAMPCLIPASSY(INCLUDESITEMS 250 – 256) |
| 250 | 41613 | 1 | CLAMP CLIP |
| 251 | 41614 | 3 | LOCKING SCREW |
| 252 | 41616 | 3 | SQUARE NUT |
| 254 | 41621 | 2 | WASHER |
| 255 | 41622 | 4 | DISTANCE RING |
| 256 | 41623 | 1 | HANDLE |
| AY5 | 41250 | 1 | THREE-SPEED GEARBOX ASSY (INCLUDES ITEMS 401 THRU 436 & 210 – 219) |
| 401 | 41271 | 1 | BEARING HOUSING |
| ITEM | P/N | QTY | DESCRIPTION |
| 402 | 41272 | 1 | OUTPUT SHAFT |
| 404 | 41273 | 1 | SPUR GEAR |
| 405 | 41274 | 1 | NOTCHED WHEEL |
| 406 | 41275 | 1 | SPUR GEAR |
| 415 | 41276 | 1 | NEEDLE BEARING |
| 418 | 41277 | 1 | BALL |
| 419 | 41278 | 1 | COMPRESSION SPRING |
| 420 | 41279 | 1 | GROOVED BALL BEARING |
| 421 | 41280 | 1 | SNAP RING |
| 422 | 41281 | 1 | WASHER |
| 423 | 41284 | 1 | SNAP RING |
| 424 | 41286 | 2 | SNAP RING |
| 425 | 41287 | 1 | SNAP RING |
| 426 | 41298 | 1 | FEATHER KEY |
| 427 | 41348 | 1 | SNAP RING |
| AY6 | 41349 | 1 | GEARSHIFTLEVERASSY(INCLUDES ITEMS 431 – 436) |
| 431 | 41361 | 1 | GEARSHIFT LEVER * |
| 432 | 41362 | 1 | O-RING * |
| 433 | 41373 | 1 | SNAP RING |
| 434 | 41375 | 1 | DOWEL PIN |
| 435 | 41376 | 2 | RADIAL SHAFT SEALING |
| 436 | 41377 | 1 | RADIAL SHAFT SEALING |
| AY7 | 41379 | 1 | COUNTERSHAFT ASSY (INCLUDES ITEMS 403 – 417) |
| 403 | 41380 | 1 | GEAR SHAFT |
| 407 | 41381 | 1 | SPUR GEAR |
| 408 | 41382 | 1 | WASHER |
| 409 | 41383 | 3 | BELLEVILLE BEARING |
| 410 | 41384 | 1 | NUT |
| 411 | 41385 | 1 | WASHER |
| 412 | 41386 | 1 | GROOVED BALL BEARING |
| 413 | 41387 | 1 | SNAP RING |
| 414 | 41388 | 1 | SHIM |
| 417 | 41389 | 1 | SHIM |
| 416 | 41390 | 1 | DOWEL PIN * |
| 428 | 41391 | 1 | SEAL |
| 429 | 41392 | 4 | FILLISTER-HEAD SCREW |
| 430 | 52661 | 2 | DOWEL PIN |
| AY8 | 65204 | 1 | WATER VALVE HOSE ASSY (INCLUDES ITEMS 210 – 219 |
| 210 | 41587 | 1 | CONNECTING PIECE |
| 211 | 41396 | 1 | GASKET |
| 212 | 65204 | 1 | ELBOW (PART OF ITEM AY8 WATER VALVE HOSE ASSY P/N-65204) |
| ITEM | P/N | QTY | DESCRIPTION |
| 213 | 65204 | 2 | HOSE CONNECTOR (PART OF ITEM AY8 WATER VALVE HOSE ASSY P/N- 65204) |
| 214 | 65204 | 2 | CLAMP (PART OF ITEM AY8 WATER VALVE HOSE ASSY P/N-65204) |
| 215 | 65204 | 1 | HOSE (PART OF ITEM AY8 WATER VALVE HOSE ASSY P/N-65204) |
| 216 | 41396 | 2 | GASKET |
| 217 | 65206 | 1 | STOPCOCK |
| 218 | 41586 | 1 | CONNECTING PIECE |
| 219 | 41588 | 1 | WATER STOP GARDENA 1/2 IN. |
| AY9 | 41251 | 1 | HANDLE ASSY (INCLUDES ITEMS 301 THRU 332, 601 – 608 & 40 – 43) |
| 301 | 41590 | 1 | VALVE HOUSING ASSY |
| 305 | 41591 | 1 | BAR |
| 306 | 41593 | 1 | GLAND |
| 313 | 41062 | 1 | SNAP RING |
| 316 | 41065 | 1 | COMPRESSION SPRING |
| 324 | 41594 | 1 | SWIVEL RING-SEGMENT |
| 325 | 40957 | 1 | FILLISTER-HEAD SCREW |
| 327 | 41595 | 5 | FILLISTER-HEAD SCREW |
| 328 | 41075 | 1 | PLUG |
| 329 | 01652 | 2 | HOSE ASSY |
| 332 | 41596 | 4 | SCREW |
| 601 | 41597 | 1 | HANDLE |
| 602 | 41598 | 1 | VALVE LEVER |
| 603 | 41599 | 1 | DOUBLE-NOTCHED PIN |
| 604 | 41600 | 1 | SCREW |
| 605 | 52663 | 1 | LOCK BOLT |
| 606 | 52664 | 1 | BUSHING |
| 607 | 52665 | 1 | BUSHING |
| 608 | 52666 | 1 | COMPRESSION SPRING |
| A11 | 03971 | 1 | COUPLER SET (NOT SHOWN) |
| A12 | 41601 | 1 | VALVE ASSY (INCLUDES ITEMS 307 – 330) |
| 307 | 41056 | 1 | SNAP RING |
| 308 | 41057 | 1 | FILLISTER-HEAD SCREW |
| 309 | 41058 | 1 | WASHER |
| 310 | 41059 | 1 | CONTROL PISTON |
| 311 | 41060 | 1 | SPRING SEAT |
| 312 | 41061 | 1 | PIN |
| 314 | 41063 | 1 | BUSHING |
| 315 | 41064 | 1 | GUIDE |
| 317 | 41066 | 1 | COMPRESSION SPRING |
| 318 | 41067 | 1 | SNAP SPRING |
| 319 | 41068 | 1 | O-RING |
| 320 | 41069 | 1 | O-RING |
| ITEM | P/N | QTY | DESCRIPTION |
| 321 | 41070 | 1 | O-RING |
| 322 | 41071 | 1 | SCREW |
| 323 | 41602 | 1 | O-RING |
| 326 | 41073 | 1 | O-RING |
| 330 | 52660 | 1 | WASHER |
| A13 | 41603 | 1 | VALVE LEVER LOCKING ASSY (INCLUDES ITEMS 40 – 43) |
| 40 | 41604 | 1 | HOUSING |
| 41 | 41605 | 1 | LATCH PIN |
| 42 | 41606 | 1 | COMPRESSION SPRING |
| 43 | 41607 | 1 | PUSH BUTTON |
