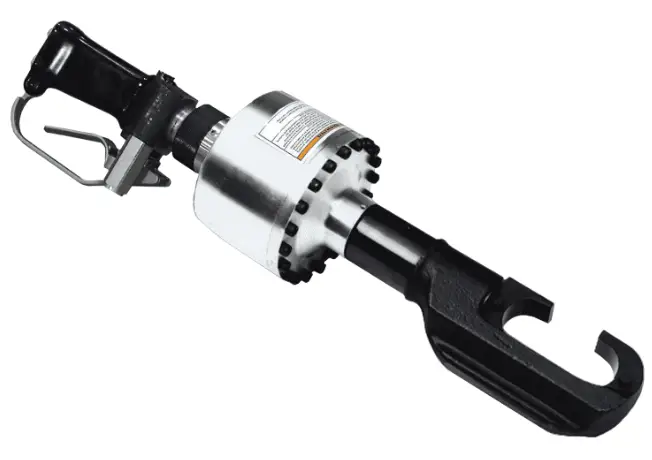

STANLEY CT15 Crimping Tool
STANLEY CT15 Crimping Tool
PART ILLUSTRATION
PART LIST
| ITEM NO. | PART NO. | QTY | DESCRIPTION |
| 1 | 118 | 1 | Retaining Ring |
| 2 | 144 | 18 | HSHCS 5/16-18 x 1-1/4 |
| 3 | 7626 | 2 | O-Ring |
| 4 | 9330 | 1 | O-Ring |
| 5 | 294 | 1 | O-Ring |
| 6 | 360 | 1 | O-Ring |
| 7 | 936 | 2 | Adapter |
| 8 | 1259 | 1 | O-Ring |
| 9 | 1521 | 2 | HSHCS 1/4-20 x 1 |
| 10 | 1534 | 1 | Roll Pin |
| 11 | 7736 | 2 | Setscrew |
| 12 | 1608 | 4 | Steel Ball 3/16 |
| 13 | 1809 | 1 | Valve Spool |
| 14 | 1812 | 1 | Valve Spool Screw |
| 15 | — | – | No Item |
| 16 | — | – | No Item |
| 17 | 16556 | 1 | Spring |
| 18 | 18050 | 1 | Back-Up Ring -029 |
| 19 | 21424 | 1 | Relief Valve |
| 20 | 21847 | 1 | T-Seal |
| 21 | 21848 | 1 | O-Ring |
| 22 | 22147 | 2 | Capscrew |
| 23 | 65726 | 1 | Push Rod |
| 24 | 1259 | 1 | O-Ring |
| 25 | 28294 | 1 | Die Yoke |
| 26 | 38622 | 1 | Valve Sleeve |
| 27 | 39925 | 1 | Compression Spring |
| 28 | 39939 | 1 | Valve Handle |
| 29 | 51182 | 1 | Trigger Guard |
| 30 | 51183 | 1 | Trigger |
| 31 | 52534 | 2 | Setscrew |
| 32 | — | – | No Item |
| 33 | 58439 | 1 | Adapter |
| 34 | 58440 | 1 | Retaining Ring |
| 35 | 58441 | 1 | Sleeve |
| 36 | 58442 | 1 | Oil Tube |
| 37 | 58443 | 1 | Piston |
| 38 | 58444 | 1 | Cylinder |
| 39 | 62286 | 1 | Cylinder Head |
| 40 | 76653 | 1 | CT15 Sticker |
| ITEM NO. | PART NO. | QTY | DESCRIPTION |
| 41 | 58594 | 1 | Retaining Ring |
| 42 | 935 | 1 | O-Ring |
| 43 | 1459 | 1 | Lockwasher, 3/8 |
| 44 | 4311 | 1 | HHCS 3/8-16 x 2.25 |
| 45 | 7467 | 2 | Die Button |
| 46 | 18689 | 2 | Spring |
| 47 | 18690 | 2 | Die Pin |
| 48 | 24874 | 1 | Setscrew 10-32 x 1/4 |
| 49 | 28295 | 1 | Head Adapter |
| 50 | 28507 | 1 | Rod Wiper |
| 51 | 37734 | 1 | Extender |
| 52 | 37735 | 1 | Die Retainer |
| 53 | 7961 | 1 | Warning Sticker |
| 54 | 67259 | 1 | Check Valve Assy |
| 58552 | Seal Kit |
