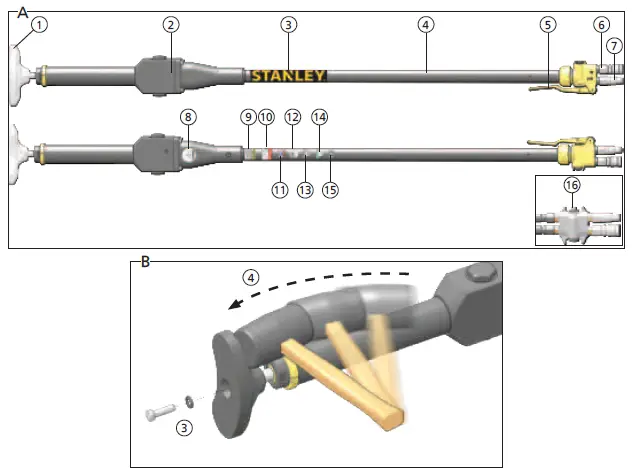

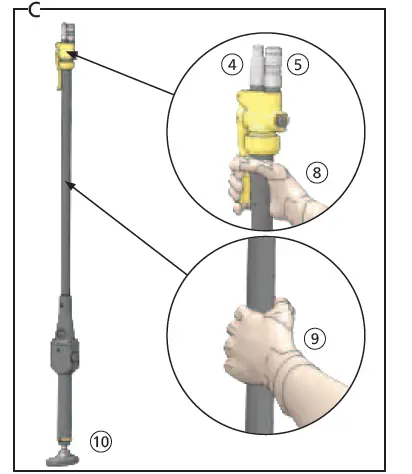

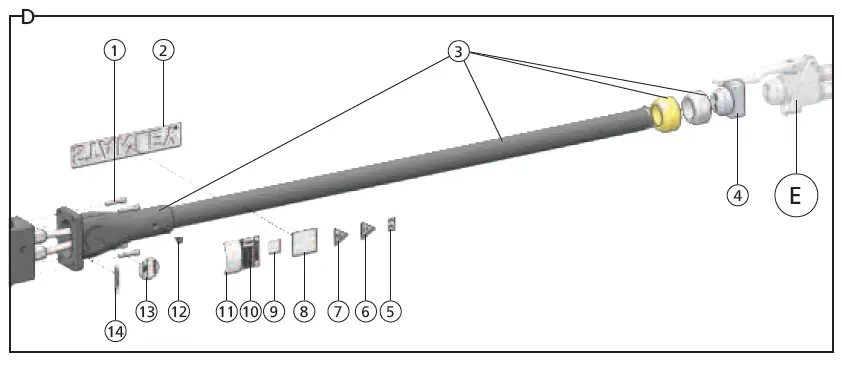

TA54 Handle Illustration – Detail D
ITEM	P/N	DESCRIPTION
1	00144	Cap Screw
2	74707	STANLEY Logo Decal
3	07737	Handle Assembly
4	35036	Hose Block – Models TA54603 & TA54603A
5	28323	CE Decal
6	11206	Circuit Type “C” Decal
7	11207	Circuit Type “D” Decal
8	88358	Sound Power Decal
9	88348	“Read the Manual” Decal
10	12412	Electrical Danger Decal
11	03783	GPM Decal
12	02529	Cap Screw
13	74699	Tool Name Tag
14	88344	Importer Decal – Model TA5410301
15	02030	TA54 No Handle Trigger Seal Kit – Not Shown (*In seal kit)
16	02032	TA54 Handle Trigger Seal Kit – Not Shown (**In seal kit)

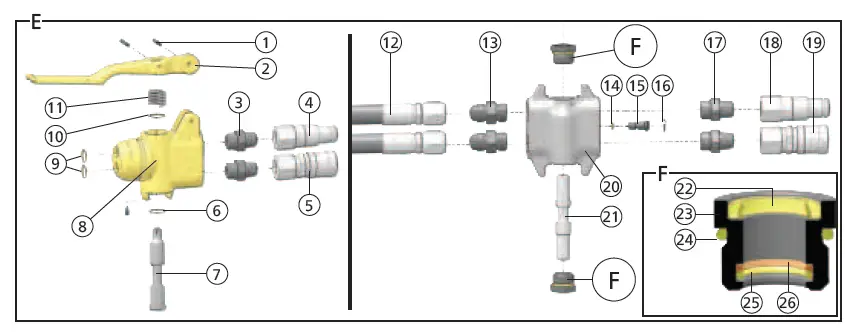

TA54 Trigger Illustration – Detail E & F
ITEM	P/N	DESCRIPTION
TA54103, TA5410301, TA5410318 & TA54113 – Detail D
1	00114	Roll Pin
2	04525	Trigger
3	00936	Adapter
	56725	Hose Whip (Model TA5410318)

TA54 Trigger Illustration – Detail E & F
ITEM	P/N	DESCRIPTION
4	03973	Male Coupler
5	03972	Female Coupler
6	07627	O-ring* / **
7	04098	Valve Spool
8	04897	Valve Body Assembly
9	00175	O-ring**
10	07627	O-ring* / **
11	04097	Compression Coil
TA54603A Trigger – Detail D
12	35784	Hose Assembly
13	00856	Adapters
14	00026	O-ring
15	10536	Selector Screw
16	16070	Retaining Ring
17	00936	Adapters
18	03973	Male Coupler
19	03972	Female Coupler
20	67007	Inline Valve Body
21	67008	Valve Spool
TA54603A Seal Cap – Detail F
22	56747	Seal Wiper
23	56749	Seal Cap
24	01604	O-ring
25	07626	O-ring
26	07224	Backup ring

TA54 Trigger Illustration – Detail E & F
ITEM	P/N	DESCRIPTION
27	02030	TA54 No Handle Trigger Seal Kit – Not Shown (*In seal kit)
28	02032	TA54 Handle Trigger Seal Kit – Not Shown (**In seal kit)

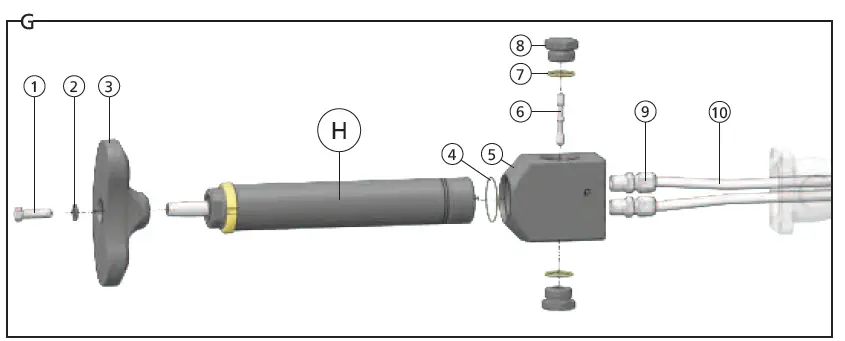

TA54 Lower Body Illustration – Detail G
ITEM	P/N	DESCRIPTION
1	00845	Tool Retaining Bolt – Torque to 41 Ft. Lbs. (54 Nm)
2	00825	Lock Washer
3	00833	Kidney Shaped Tamper Shoe
	00840	Round Tamper Shoe – Model TA54113
4	00178	O-ring
5	34684	Valve Assembly
6	00819	Reversing Spool
7	06533	O-ring* / **
8	14882	End Cap
9	01236	Tube Fitting
10	07738	Oil Tube
11	02030	TA54 No Handle Trigger Seal Kit – Not Shown (*In seal kit)
12	02032	TA54 Handle Trigger Seal Kit – Not Shown (**In seal kit)

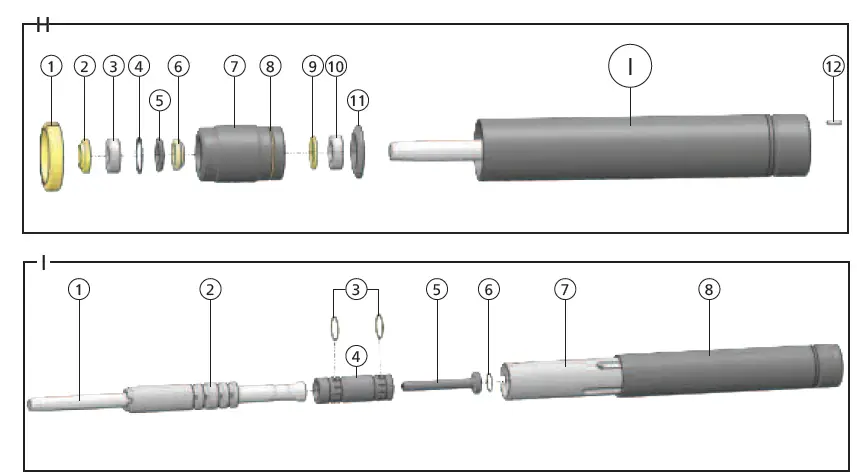

TA54 Nose Illustration – Detail H
ITEM	P/N	DESCRIPTION
1	01795	Jam Nut
2	15016	Rod Wiper* / **
3	08434	Felt Washer* / **
4	04902	Retaining Ring
5	14884	Seal Washer
6	14891	Rod Wiper* / **
7	14883	Nose
8	01262	O-ring* / **
9	00834	O-ring* / **
10	00823	Piston Cushion
11	01038	Thrust Washer
12	01749	Roll Pin
13	02030	TA54 No Handle Trigger Seal Kit – Not Shown (*In seal kit)
14	02032	TA54 Handle Trigger Seal Kit – Not Shown (**In seal kit)

TA54 Piston Assembly Illustration – Detail I
ITEM	P/N	DESCRIPTION
1	14886	Piston
2	01037	Front Sleeve
3	29690	Oil Control Seal* / **
4	00927	Back Sleeve
5	00806	Oil Tube
6	00940	O-ring* / **

TA54 Piston Assembly Illustration – Detail I
ITEM	P/N	DESCRIPTION
7	01036	Flow Sleeve
8	01787	Outer Tube
9	02030	TA54 No Handle Trigger Seal Kit – Not Shown (*In seal kit)
10	02032	TA54 Handle Trigger Seal Kit – Not Shown (**In seal kit)
