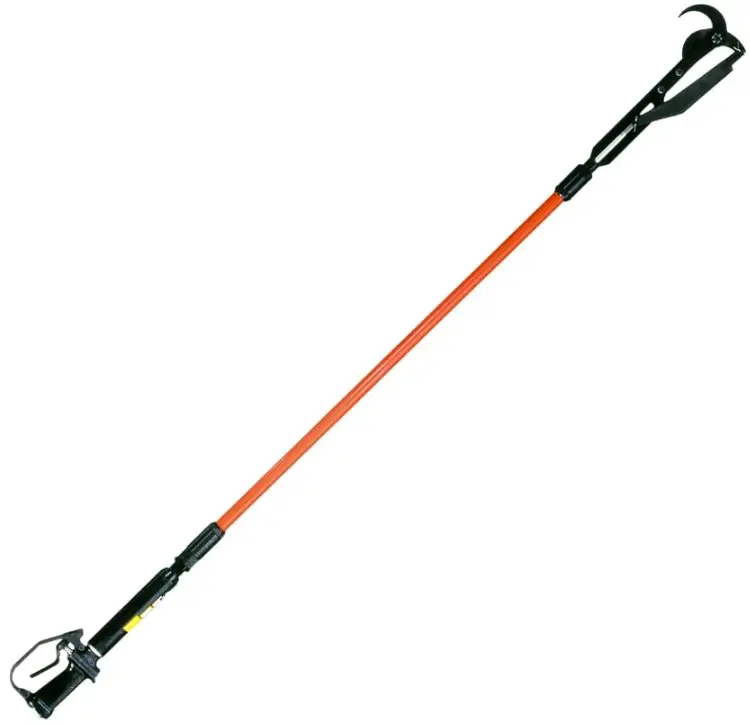

STANLEY PR41 Pole Pruner Instructions
PR41 PARTS ILLUSTRATION
PR41 PARTS LIST
| ITEM | PART NO. | QTY | DESCRIPTION |
| 1 | 28415 | 1 | CYLINDER |
| 2 | 28416 | 1 | CYLINDER OIL TUBE |
| 3 | 00252 | 2 | O-RING |
| 4 | 00175 | 2 | O-RING |
| 5 | 01809 | 1 | SPOOL |
| 6 | 01812 | 1 | SPOOL SCREW |
| 7 | 73650 | 1 | VALVE HANDLE ASSY |
| 8 | 00936 | 2 | ADAPTOR 1/2 SAE / 3/8 NPT |
| 9 | 22147 | 2 | CAPSCREW |
| 10 | 51182 | 1 | TRIGGER GUARD |
| 11 | 01534 | 1 | ROLL PIN |
| 12 | 16556 | 1 | SPRING |
| 13 | 00560 | 1 | O-RING |
| 14 | 00018 | 1 | O-RING |
| 15 | 00535 | 1 | PISTON (PR41131, PR4113101) |
| 16 | 18885 | 1 | PISTON (PR41231 ONLY) |
| 17 | 00539 | 1 | DISC VALVE (PR41131, PR4113101 ONLY) |
| 18 | 00552 | 1 | DISC VALVE SPRING (PR41131, PR4113101 ONLY) |
| 19 | 00534 | 1 | PISTON NUT (PR41131, PR4113101) |
| 20 | 36133 | 1 | INTERNAL TUBE ASSY |
| 21 | 36128 | 1 | PISTON ROD |
| 22 | 00574 | 1 | O-RING |
| 23 | 01815 | 1 | BACK-UP RING |
| 24 | 01211 | 1 | O-RING |
| 25 | 08248 | 1 | SLIDE LINK BOLT |
| 26 | 28418 | 1 | TUBE COUPLING |
| 27 | 28432 | 1 | LOCK NUT |
| 28 | 36130 | 1 | EXTERNAL TUBE ASSY |
| 29 | 08249 | 1 | CLEVIS PIN |
| 30 | 00283 | 2 | LOCK WASHER |
| 31 | 00569 | 2 | CAPSCREW |
| 32 | 00757 | 1 | ROLL PIN |
| 33 | 36237 | 1 | WASHER |
| 34 | 27747 | 1 | HOOK |
| 35 | 58649 | 1 | KNIFE |
| 36 | 03029 | 2 | COTTER PIN |
| 37 | 36213 | 1 | KNIFE BOLT |
| 38 | 08246 | 1 | SLIDE HEAD ASSY |
| 39 | 28401 | 1 | LINK BAR |
| 40 | 08247 | 1 | CLEVIS PIN |
| 41 | — | 1 | DIELECTRIC TEST STICKER |
| 42 | 12412 | 1 | WARNING STICKER |
| 43 | 03783 | 1 | GPM STICKER |
| 44 | 28502 | 1 | NAME TAG |
| 45 | 25910 | 1 | NOTICE STICKER |
| 46 | 51183 | 1 | TRIGGER |
| 47 | 05268 | 1 | HEX SLOTTED NUT |
| 48 | 03972 | 1 | FEMALE COUPLER (SUPPLIED W/ PR4113103 ONLY) |
| 49 | 03973 | 1 | MALE COUPLER (SUPPLIED W/ PR4113103 ONLY) |
| 50 | 03971 | 1 | COUPLER SET (PR411303 ONLY) |
| 03693 | 1 | CLOSED CENTER DECAL (PR41231 ONLY) |
Note: Use Part Number and Part Name when ordering.
MODEL DESIGNATIONS
- PR41131 Open Center (OC) only
- PR41231 Closed Center (CC) only
- PR413103 Open Center (OC) only
