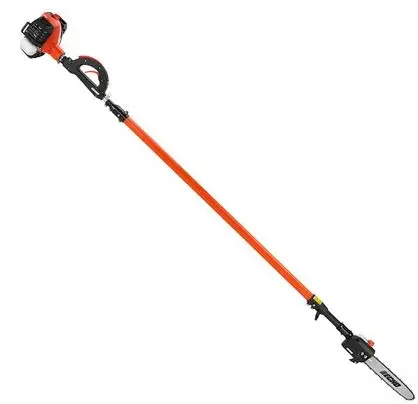

ECHO PPT-2620-H Telescopic Power Pruner
SPECIFICATIONS
NOTICE
Some tree sap and resins are corrosive. Thoroughly wash the guide bar and sprocket areas after each use, then coat metal parts with light oil.
- Perform all periodic lubrication and services that are required.
- Tighten all the screws and nuts.
- Drain fuel tank completely. Press purge bulb 6-7 times to remove remaining fuel from carburetor then drain the tank again. Close choke, start and run the engine until it stops due to lack of fuel.
- Allow engine to cool. Remove the spark plug lead from the spark plug. Remove the spark plug. Pour 7 cc (0.25 oz.) of fresh, clean, two-stroke engine oil into the cylinder through the spark plug hole.
- Pull the recoil starter handle 2-3 times to distribute the oil inside the engine.
- Observe the piston location through the spark plug hole. Pull the recoil handle slowly until the piston reaches the top of its travel and leave it there.
- Install the spark plug. Connect the spark plug lead to the spark plug.
| Model | PPT-2620 I PPT-2620H |
| Length (standard) | 2,716 mm (107 in.) |
| Length (Extended) | 3,704 mm (146 in) |
| Width | 273 mm (11 in.) |
| Height | 260 mm (1O in.) |
| Weight (dry) | 7.9 kg (17.4 lb.) 17.7 kg (17 lb.) |
| Engine Type | Air cooled, two-stroke, single cylinder gasoline engine |
| Bore | 34 mm (1.34 in.) |
| Stroke | 28 mm (1.1 in.) |
| Displacement | 25.4 cc (1.55 cu. in.) |
| Exhaust | Spark arrestor muffler or spark arrestor muffler with catalyst |
| Carburetor | Diaphragm w /purge pump |
| Ignition System | Flywheel magneto, capacitor discharge ignition type |
| Spark Plug | NGK CMR 7H (Gap 0.65 mm [0.026 in.]) |
| Fuel | Mixed (Gasoline and Two-stroke Oil) |
| Model | PPT-2620 I PPT-2620H |
| Fuel/Oil Ratio | 50: 1 |
| Gasoline | Use 89 Octane unleaded. Do not use fuel containing methyl alcohol, more than 10% ethyl alcohol or 15% MTBE. Do not use alternative fuels such as E15 or E85. |
| Oil | ISO-L-EGD (ISO/CD 13738) and J.A.S.O. M345- FD, two- stroke, air-cooled engine oil. |
| Fuel Tank Capacity | 0.53 L (17.9 US fl. oz.) |
| Starter System | Automatic Rewind Starter |
| Clutch | Centrifugal Type |
| Drive Shaft | Aluminum Extrusion |
| Sprocket Type | 6 tooth spur, 9.53 mm (3/8 inch) pitch |
| Gear Case Ratio | 1.5 : 1 |
| Oiling System | Automatic |
| Chain Oil Capacity | .2 L (6.76 oz.) |
| Handles | Right hand grip w/throttle trigger and throttle trigger lockout |
| Shoulder Harness | Standard |
| Idle Speed | 3,100 |
| Clutch Engagement Speed | 4,100 |
| Wide Open Throttle Speed (W.O.T.} | 11,250 |
| Guide Bar and Saw Chain (91) | 305 mm (12 in.); 9.53 mm (3/8 inch) pitch chain, 0.050 gauge |
PRODUCT REGISTRATION
Thank you for choosing ECHO Power Equipment Please go to http://www.echo-usa.com/Warranty/Register -Your-ECHO to register your new product on-line. It’s FAST and EASY
NOTE: your information will never be sold or misused by ECHO, Inc. Registering your purchase enables us to contact you in the unlikely event of a service update or product recall, and verifies your ownership for warranty consideration. If you do not have access to the Internet, you can complete the form below and mail to: ECHO Inc., Product Registration, PO Box 1139, Lake Zurich IL 60047.
