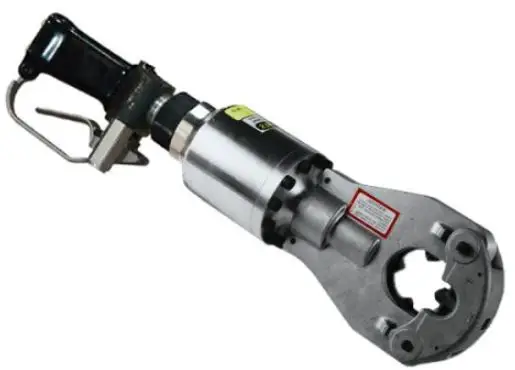

STANLEY CT06 Hydraulic Crimper

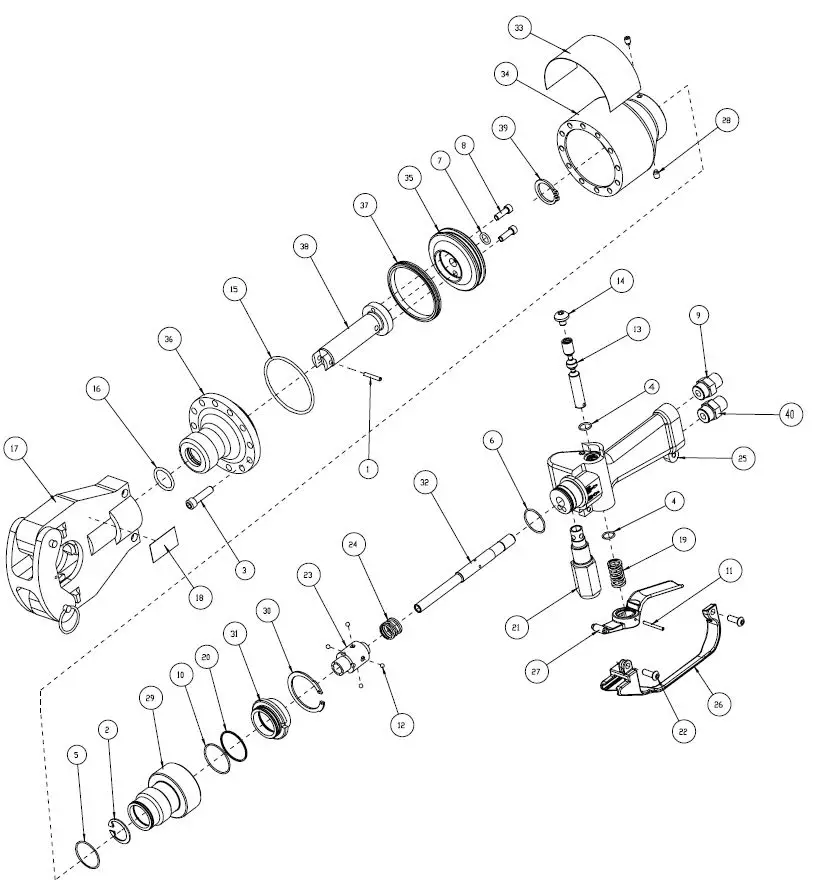

CT06 PARTS ILLUSTRATION
CT06 PARTS LIST
| ITEM NO. | PART NO. | QTY | DESCRIPTION |
| 1 | 00114 | 1 | ROLL PIN |
| 2 | 00118 | 1 | RETAINING RING |
| 3 | 00144 | 12 | HSHCS |
| 4 | 07626 | 2 | O-RING ■ |
| 5 | 09330 | 1 | O-RING ■ |
| 6 | 00294 | 1 | O-RING ■ |
| 7 | 00360 | 1 | O-RING ■ |
| 8 | 00769 | 2 | HSHCS |
| 9 | 00936 | 2 | ADAPTER |
| 10 | 01259 | 1 | O-RING ■ |
| 11 | 01534 | 1 | ROLL PIN |
| 12 | 01608 | 4 | STEEL BALL |
| 13 | 01809 | 1 | VALVE SPOOL |
| 14 | 01812 | 1 | VALVE SPOOL SCREW |
| 15 | 04054 | 1 | O-RING ■ |
| 16 | 04794 | 1 | O-RING ■ |
| 17 | 79307 | 1 | FLIP-TOP CRIMPING HEAD |
| 18 | 07427 | 1 | CAUTION STICKER |
| 19 | 16556 | 1 | SPRING |
| 20 | 18050 | 1 | BACK-UP RING ■ |
| 21 | 21424 | 1 | RELIEF VALVE |
| 22 | 22147 | 2 | CAPSCREW |
| 23 | 38622 | 1 | VALVE SLEEVE |
| 24 | 39925 | 1 | COMPRESSION SPRING |
| 25 | 39939 | 1 | VALVE HANDLE |
| 26 | 51182 | 1 | TRIGGER GUARD |
| 27 | 51183 | 1 | TRIGGER |
| 28 | 52534 | 2 | SETSCREW |
| 29 | 58439 | 1 | ADAPTER |
| 30 | 58440 | 1 | RETAINING RING |
| 31 | 58441 | 1 | SLEEVE |
| 32 | 58442 | 1 | OIL TUBE |
| 33 | 76651 | 1 | COMBINED CT06 1650 PSI STICKER |
| 34 | 58520 | 1 | CYLINDER |
| 35 | 58521 | 1 | PISTON |
| 36 | 58522 | 1 | CYLINDER HEAD |
| 37 | 58523 | 1 | T-SEAL ■ |
| 38 | 58525 | 1 | PUSH ROD |
| 39 | 58594 | 1 | RETAINER RING |
| 40 | 67259 | 1 | CHECK VALVE ASSY |
| 58550 | 1 | SEAL KIT (■ INDICATES PART IN SEAL KIT) |
