STANLEY CD12 Core Drill

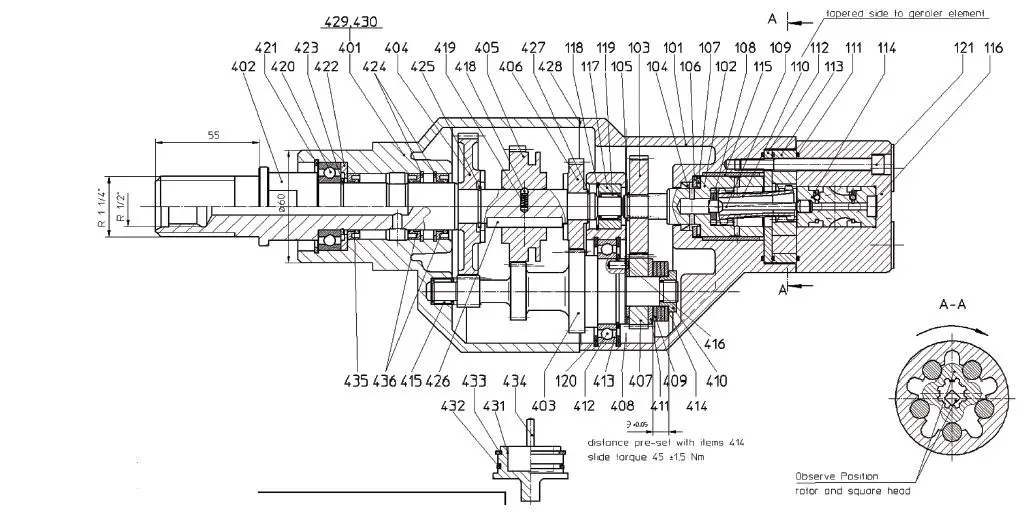

CD12 PARTS ILLUSTRATION
CD12 PARTS LIST
| ITEM | PART NO. | QTY | DESCRIPTION |
| AY1 | 65311 | 1 | MOTORASSEMBLY(INCLITEMS 101 THROUGH 121) |
| 101 | 65207 | 1 | MOTOR HOUSING |
| 102 | 41254 | 1 | OUTPUT SHAFT |
| 103 | 41255 | 1 | SPUR GEAR |
| 104 | 41256 | 1 | SHAFT SEALING |
| 105 | 41257 | 1 | SNAP RING |
| 106 | 41258 | 1 | THRUST WASHER |
| 107 | 41259 | 1 | THRUST BEARING |
| 108 | 41260 | 1 | SHAFT SPACER |
| 109 | 65208 | 1 | SPOOL DRIVE |
| 110 | 65209 | 1 | DRIVE |
| 111 | 41263 | 3 | O-RING* |
| 112 | 41264 | 1 | SPACER PLATE |
| 113 | 65211 | 1 | GEROLER ASSEMBLY |
| 114 | 41266 | 1 | SPOOL |
| 115 | 41267 | 1 | BEARING |
| 116 | 65212 | 1 | COVER |
| 117 | 41624 | 1 | BEARING RING |
| 118 | 41268 | 1 | SNAP RING |
| 119 | 41269 | 1 | NEEDLE BEARING |
| 120 | 41270 | 1 | SNAP RING |
| 121 | 65213 | 5 | HSH CAPSCREW |
| AY2 | 41250 | 1 | THREE SPEED GEARBOX (INCL ITEMS 401 THROUGH 436 & 210 THROUGH 219) |
| 401 | 41271 | 1 | BEARING HOUSING |
| 402 | 41272 | 1 | OUTPUT SHAFT |
| 404 | 41273 | 1 | SPUR GEAR |
| 405 | 41274 | 1 | NOTCHED WHEEL |
| 406 | 41275 | 1 | SPUR GEAR |
| 415 | 41276 | 1 | NEEDLE BEARING |
| 418 | 41277 | 1 | BALL |
| 419 | 41278 | 1 | COMPRESSION SPRING |
| 420 | 41279 | 1 | GROOVED BALL BEARING |
| 421 | 41280 | 1 | SNAP RING |
| 422 | 41281 | 1 | WASHER |
| 423 | 41284 | 1 | SNAP RING |
| 424 | 41286 | 2 | SNAP RING |
| 425 | 41287 | 1 | SNAP RING |
| 426 | 41298 | 1 | FEATHER KEY |
| 427 | 41348 | 1 | SNAP RING |
| 433 | 41373 | 1 | SNAP RING |
| 435 | 41376 | 2 | RADIAL SHAFT SEALING |
| 436 | 41377 | 1 | RADIAL SHAFT SEALING |
| ITEM | PART NO. | QTY | DESCRIPTION |
| AY3 | 41379 | 1 | COUNTERSHAFT ASSEMBLY (INCL ITEMS 403 THROUGH 417) |
| 403 | 41380 | 1 | GEAR SHAFT |
| 407 | 41381 | 1 | SPUR GEAR |
| 408 | 41382 | 1 | WASHER |
| 409 | 41383 | 4 | BELLEVILLE SPRING |
| 410 | 41384 | 1 | NUT |
| 411 | 41385 | 1 | COMPRESSION RING |
| 412 | 41386 | 1 | GROOVED BALL BEARING |
| 413 | 41387 | 1 | SNAP RING |
| 414 | 41388 | 2 | SHIM |
| 417 | 41389 | 1 | SHIM |
| 416 | 41390 | 1 | DOWEL PIN* |
| 428 | 41391 | 1 | SEAL |
| 429 | 41392 | 4 | HSH CAPSCREW, M5 X 50 |
| 430 | 52661 | 2 | DOWEL PIN |

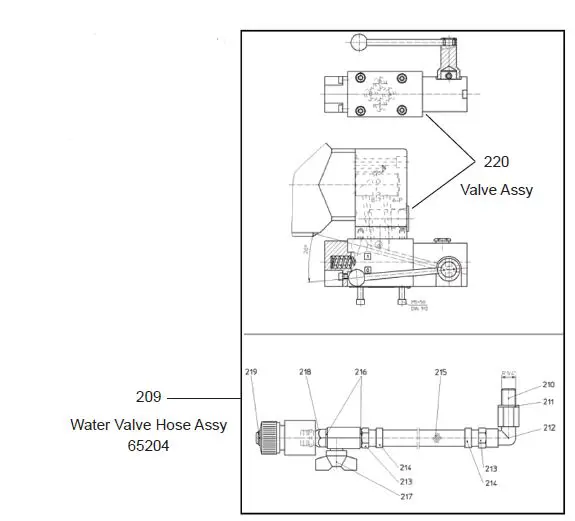

| 209 | 65204 | 1 | WATER VALVE HOSE ASSY (INCL ITEMS 210 THROUGH 219) |
| 210 | 41587 | 1 | CONNECTING PIECE |
| 211 | 41396 | 1 | GASKET* |
| 212 | 65204 | 1 | ELBOW (PART OF ITEM 209) |
| 213 | 65204 | 2 | HOSE CONNECTOR (PART OF ITEM 209) |
| 214 | 65204 | 2 | CLAMP (PART OF ITEM 209) |
| 215 | 65204 | 1 | HOSE (PART OF ITEM 209) |
| 216 | 41396 | 2 | GASKET |
| 217 | 65206 | 1 | STOPCOCK |
| 218 | 41586 | 1 | CONNECTING PIECE |
| 219 | 41588 | 1 | WATER-STOP GARDENA 1/2 IN |
| 220 | 65203 | 1 | VALVE ASSY |
| 221 | 03971 | 1 | COUPLER SET (NOT SHOWN) |
| 222 | 62377 | 1 | DRILL MOTOR & ANCHOR STAND (NOT SHOWN) |
| 223 | 01652 | 1 | HOSE ASSY (NOT SHOWN) |
| 224 | 62416 | 1 | SPACER, 1 IN (CD12200 ONLY, NOT SHOWN) |
| TOOL DECALS | |||
| 11206 | 1 | CIRCUIT TYPE C | |
| 11207 | 1 | CIRCUIT TYPE D | |
| 28409 | 1 | COMPOSITE | |
| 76483 | CD12 NAME/GPM | ||
| 09612 | CAUTION | ||
| SEAL KIT | |||
| SK | 45110 | SEAL KIT (* DENOTES PART IN SEAL KIT) | |

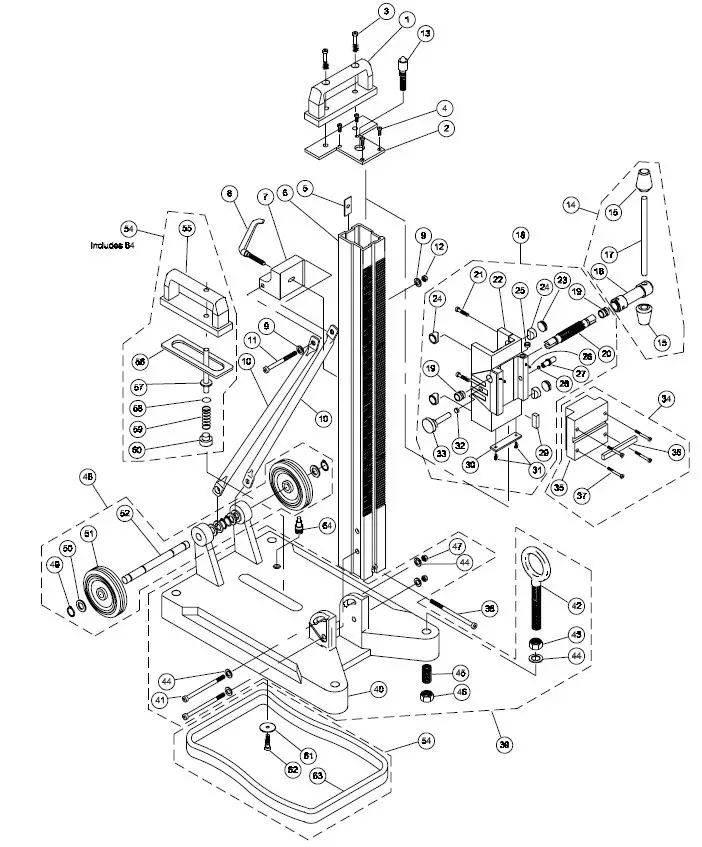

CD12 ANCHOR STAND ILLUSTRATION
CD12 ANCHOR STAND PARTS LIST
| ITEM | PART NO. | QTY | DESCRIPTION |
| 1 | 65214 | 1 | HANDLE |
| 2 | 65215 | 1 | STOP PLATE |
| 3 | 65216 | 2 | HSH CAPSCREW |
| 4 | 65217 | 4 | HSFH SCREW |
| 5 | 65218 | 1 | CLAMP PLATE |
| 6 | 65219 | 1 | DRILL STAND COLUMN |
| 7 | 65220 | 1 | CLAMP BLOCK |
| 8 | 65221 | 1 | CLAMP LEVER |
| 9 | 65222 | 2 | WASHER |
| 10 | 65223 | 2 | SUPPORT TUBE |
| 11 | 65224 | 1 | HSH CAPSCREW |
| 12 | 65225 | 1 | HEX NUT |
| 13 | 65226 | 1 | CENTERING SCREW |
| 14 | 65227 | 1 | HANDLE ASSY (INCL ITEMS 15 THROUGH 17) |
| 18 | 65228 | 1 | CARRIAGE ASSY (INCL ITEMS 19–33) |
| 19 | 65229 | 2 | THREADING BUSHING |
| 20 | 65230 | 1 | GEARED SPINDLE |
| 21 | 65231 | 2 | HSH CAPSCREW |
| 22 | 65232 | 1 | CARRIAGE |
| 23 | 65233 | 2 | GUIDE ADJUSTING SCREW |
| 24 | 65234 | 4 | CARRIAGE GUIDE |
| 25 | 65235 | 1 | BULLSEYE LEVEL |
| 26 | 65236 | 2 | PIN |
| 27 | 65237 | 1 | DRILL MOUNT LOCKING SCREW |
| 28 | 65238 | 1 | NIB |
| 29 | 65239 | 1 | SQUARE KEY |
| 30 | 65240 | 1 | STOP PLATE, MOTOR MOUNT |
| 31 | 65241 | 2 | HSFH SCREW |
| 32 | 65242 | 1 | CARRIAGE LOCK BUSHING |
| 33 | 65243 | 1 | CARRIAGE LOCK |
| 34 | 65244 | 1 | DOVETAIL MOTOR MTG BLOCK ASSY (INCL ITEMS 35–37) |
| 35 | 65245 | 1 | DOVETAIL MOTOR MTG BLOCK |
| 36 | 65246 | 1 | SQUARE KEY, LONG |
| 37 | 65224 | 4 | HSH CAPSCREW CD12100 ONLY |
| 60950 | 4 | HSH CAPSCREW CD12200 ONLY | |
| 38 | 65247 | 1 | HSH CAPSCREW |
| 39 | 65248 | 1 | BASE ASSY (INCL ITEMS 40–47) |
| 40 | 65249 | 1 | BASE |
| 41 | 65251 | 2 | HSH CAPSCREW |
| 42 | 65252 | 2 | EYE BOLT |
| 43 | 65253 | 2 | HEX NUT |
| 44 | 65254 | 4 | WASHER |
| 45 | 65255 | 2 | SLEEVE |
| ITEM | PART NO. | QTY | DESCRIPTION |
| 46 | 65256 | 2 | LEVELING LEG NUT |
| 47 | 65257 | 2 | HEX NUT |
| 48 | 65258 | 1 | WHEEL & AXLE ASSY (INCL ITEMS 49–52) |
| 55 | 65259 | 1 | VACUUM HANDLE |
| 56 | 65260 | 1 | VACUUM HANDLE GASKET |
| 57 | 65261 | 1 | VACUUM RELEASE BUTTON |
| 58 | 65262 | 1 | O-RING |
| 59 | 65263 | 1 | SPRING |
| 60 | 65264 | 1 | VACUUM VALVE SEAT |
| 61 | 65265 | 1 | WASHER |
| 62 | 65266 | 1 | HSH CAPSCREW |
| 63 | 65267 | 1 | BASE GASKET |
| 64 | 65268 | 1 | HOSE BARB |
