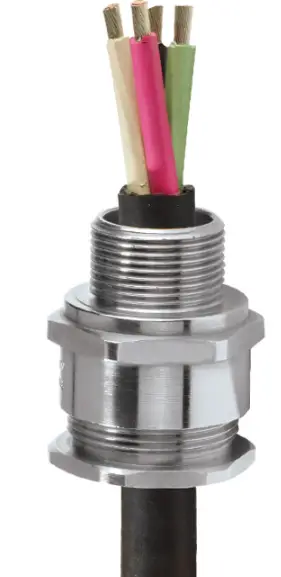

STAHL CMP-63A2F Cable Gland
- Ex d and Ex e cable entry for unarmoured cables and cables with wire-braid armoring
- More safety: sealing of the outer cable sheath, flood seal, designed to prevent cold flow
- Worldwide certification in accordance with IECEx, ATEX and CSA
WebCode A2FA
A2F series metal Ex d and Ex e cable entries are designed for unarmoured cables and cables with wire-braid armoring. The flood seal with integral protection and sealing for the outer cable sheath provided by an explosion-protected displacement seal ensure added safety. And because they are designed to prevent cold flow, safety is improved even further. They have worldwide certification according to IECEx, ATEX, and CSA.
Technical Data
| Explosion Protection | |
| Ex version | Ex e & Ex d & Ex nR & Ex ta |
| Application range (zones) | 1 2 20 21 22 |
| IECEX gas certificate | IECEx CML 18.0179X |
| IECEx gas explosion protection | Ex db IIC Gb |
| IECEX dust certificate | IECEx CML 18.0179X |
| IECEx dust explosion protection | Ex ta IIIC Da |
| IECEx restricted breathing certificate | IECEx CML 18.0179X |
| IECEx restricted breathing | Ex nR IIC Gc |
| ATEX gas certificate | CML 18ATEX1321X |
| ATEX gas explosion protection | E II 2 G Ex db IIC Gb |
| ATEX dust certificate | CML 18ATEX1321X |
| ATEX dust explosion protection | E II 1 D Ex ta IIIC Da |
| ATEX restricted breathing certificate | CML 18ATEX4313X |
| ATEX restricted breathing | E II 3 G Ex nR IIC Gc |
| EAC certificate | TS RU S-GB.AA87.B.00487 |
| EAC gas explosion protection | 7 1 Ex d e IIC Gb X 7 2 Ex nR IIC Gc X |
| EAC dust explosion protection | 7 Ex ta IIIC Da X |
| Notes | The product certification and certificates can be downloaded from the manufacturer’s homepage (www.cmp-products.com) |
| Ambient Conditions | |
| Ambient temperature | -60 °C … +130 °C |
Installation Equipment and Accessories
Cable gland
| Mechanical Data | |
| Version | 63 |
| Strain relief | No |
| Degree of protection (IP) | IP66 |
| Degree of protection note | IP67 and IP68 mounting in accordance with the specifications of the manufacturer, CMP |
| Sealing material | SOLO LSF |
| Material | Nickel-plated brass |
| Silicone-free | Yes |
| Number of cables | 1 |
| Clamping range | 47.2 – 55.9 mm |
| Armouring type | Unarmoured cable types |
| Armouring type 2 | Cable with protective braiding |
| Min. armour wire thickness | 0 mm |
| Max. armour wire thickness | 0 mm |
| Clamping range | 47.2…. 55.9 mm |
| Construction type | BS 6121, IEC/EN 62444 |
| Width across corners | 82.5 mm |
| Width across flats | 75 mm |
| Thread size | M63 |
| Thread length | 15 mm |
| Thread pitch | 1,5 |
| Thread standard | Metric |
| Gland size | 63 |
| Inner sheath | 47.2 … 55.9 mm |
| Protrusion length | 35.8 mm |
| Impact strength | 20 J |
| PVC boot | PVC23 |
| Lot size | 1 |
| Weight | 0.4 kg |
| Weight | 0.88 lb |

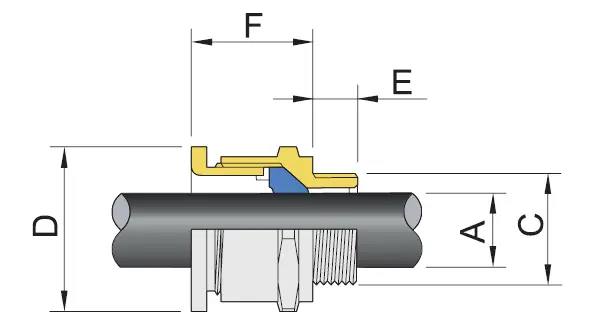

Dimensional Drawings (All Dimensions in mm [inches]) – Subject to Alterations
- A = Inner sheath
- C = Thread size
- D = Width across corners
- D = Width across flats
- E = Thread length
- F = Protrusion length
We reserve the right to make alterations to the technical data, dimensions, weights, designs, and products available without notice. The illustrations cannot be considered binding.
2022-09-02 R. STAHL Schaltgeräte GmbH | Am Bahnhof 30 | 74638 WALDENBURG
V 0.96 EN Tel. +49 7942 943 1700 | +49 7942 943 1777 | Email: [email protected] | r-stahl.com
