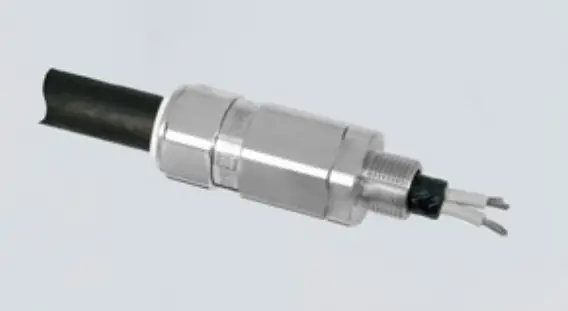

STAHL CMP-50T3CDS Cable Gland

ABOUT
- Cable entry with multi- functional holder for different types of armour
- Compensating displacement seal (CDS), flood seal with inte-gral protection, controlled outer load retention seal
- EMC- tested, worldwide certification in accordance with IECEx, ATEX, TR CU, UL and cCSAus
WebCode T3CDSA
T3CDS series metal Ex d and Ex e cable entries are suitable for all types of armoured cables, i.e. for SWA, braid- and tape- type steel and aluminium armouring. They feature a multi- functional hold-er for the armouring and various seals. They are also designed to prevent cold flow and are EMC- tested. Their auxiliary functions and the sequential, three-stage installation offer increased safety and reduce the amount of time, the costs and the risks involved in installation.
Technical Data
| Explosion Protection | |
| Ex version | Ex e & Ex d & Ex nR & Ex ta |
| Application range (zones) | 1 2 20 21 22 |
| IECEX gas certificate | IECEx CML 18.0183X |
| IECEx gas explosion protection | Ex db IIC Gb |
| IECEX dust certificate | IECEx CML 18.0183X |
| IECEx dust explosion protection | Ex ta IIIC Da |
| IECEX firedamp certificate | IECEx CML 18.0183X |
| IECEx firedamp protection | Ex db I Mb |
| IECEx firedamp protection 2 | Ex eb I Mb |
| IECEx restricted breathing certificate | IECEx CML 18.0183X |
| IECEx restricted breathing | Ex nR IIC Gc |
| ATEX gas certificate | CML 18ATEX1326X |
| ATEX gas explosion protection | E II 2 G Ex db IIC Gb |
| ATEX dust certificate | CML 18ATEX1326X |
| ATEX dust explosion protection | E II 1 D Ex ta IIIC Da |
| ATEX firedamp certificate | CML 18ATEX1326X |
| ATEX firedamp protection | E I M2 Ex db I Mb |
| ATEX firedamp protection 2 | E I M2 Ex eb I Mb |
| ATEX restricted breathing certificate | CML 18ATEX4318X |
| ATEX restricted breathing | E II 3 G Ex nR IIC Gc |
| EAC certificate | TC RU C-GB.AA87.B.00487 |
| EAC gas explosion protection | 7 1 Ex d e IIC Gb X 7 2 Ex nR IIC Gc X |
| Explosion Protection | |
| EAC dust explosion protection | 7 Ex ta IIIC Da X |
| Notes | The product certification and certificates can be downloaded from the manufacturer’s homepage (www.cmp-products.com) |
| Ambient Conditions | |
| Ambient temperature | -60 °C … +130 °C |
| Mechanical Data | |
| Version | 50 |
| Strain relief | No |
| Degree of protection (IP) | IP66 |
| Degree of protection note | IP67 and IP68 mounting in accordance with the specifications of the manufacturer, CMP |
| Sealing material | SOLO LSF |
| Sealing ring material | Viton |
| Material | Nickel-plated brass |
| Silicone-free | Yes |
| Halogen-free | Yes |
| Number of cables | 1 |
| Clamping range | 40.4 – 53 mm |
| Armouring type | All armouring |
| Armouring type 2 | Without lead sheath |
| Armouring type 3 | With double seal |
| Min. armour wire thickness | 0 mm |
| Max. armour wire thickness | 0 mm |
| Clamping range | 40.4 … 53 mm |
| Max. number of cores | 0 |
| Construction type | BS 6121, IEC/EN 62444 |
| Width across corners | 77.1 mm |
| Width across flats | 70.1 mm |
| Thread size | M50 |
| Thread length | 15 mm |
| Thread pitch | 1,5 |
| Thread standard | Metric |
| Gland size | 50 |
| Grooved cone | 0.6 … 1.6 mm |
| Stepped cone | 2 … 2.5 mm |
| Inner sheath | 35.6 … 44 mm |
| Max. internal conduit diameter | 0 mm |
| Min. inner conduit diameter | 0 mm |
| Outer sheath | 40.4 … 53 mm |
| Min. outer conduit diameter | 0 mm |
| Max. external conduit diameter | 0 mm |
| Protrusion length | 105.8 mm |
| Impact strength (IEC 60079) | 7 J |
| Impact strength | 20 J |
| PVC boot | PVC21 |
| Mechanical Data | |
| Lot size | 1 |
| Weight | 1.6 kg |
| Weight | 3.53 lb |
Dimensional Drawings

- A = Inner sheath
- B = Outer sheath
- C = Thread size
- D = Width across corners
- D = Width across flats
- E = Thread length
- F = Protrusion length
We reserve the right to make alterations to the technical data, dimensions, weights, designs and products available without notice. The illustrations cannot be considered binding.
