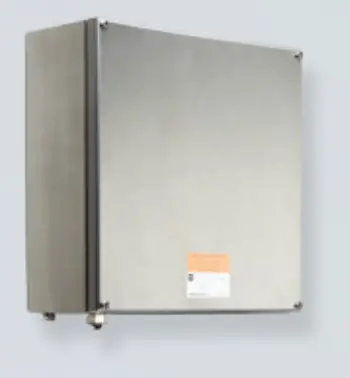

STAHL 8150L Exe Terminal Box
ABOUT
- Class I Div. 2, Class I Zone 1
- Resistant Ex e terminal boxes made of stainless steel
- Degree of protection IP66
- External earth connection M8
- Version as screw-on cover for other alternatives contact factory
- Equipped as required
WebCode 8150L
R. STAHL Series 8150 Ex e terminal boxes are made of brushed stainless steel (1.4301, ANSI 304 or 1.4404, ANSI 316L) and are particularly resistant. The optimised design and the circumfer-ential protection channel on the cover opening and the silicone seal suitable for the most extreme temperature ranges make the enclosure usable worldwide. Various optional accessories are available.
Technical Data
| Explosion Protection | |
| Scope of validity | European Union (ATEX) IECEx USA |
| Application range (zones) | 1 2 21 22 |
| IECEX gas certificate | IECEx PTB 09.0048 |
| IECEx gas explosion protection | Ex eb IIC T6 … T4 Gb |
| IECEX dust certificate | IECEx PTB 09.0048 |
| IECEx dust explosion protection | Ex tb IIIC T80 °C … T135 °C Db |
| ATEX gas certificate | PTB 09 ATEX 1108 |
| ATEX gas explosion protection | E II 2 G Ex eb IIC T6 … T4 Gb |
| ATEX dust certificate | PTB 09 ATEX 1108 |
| ATEX dust explosion protection | E II 2 D Ex tb IIIC T80 °C … T135 °C Db |
| Certificates | ATEX (PTB), Brazil (ULB), Canada (UL), EAC (ENDCE), IECEx (PTB), India (PESO), Korea (KGS), Taiwan (ITRI), USA (UL) |
| Ship approval | ABS, DNVGL |
| Electrical Data | |
| Rated operational voltage AC IEC | 690 V |
| AC UL rated operational voltage | 600 – 600 V |
| UL rated operational current | 65 A |
| Current carrying capacity IEC | max. 54 A |
| Current carrying capacity NEC, CEC | Max. 65 A |
| Ambient Conditions | |
| Ambient temperature | -50 °C … +40 °C (T6) (T80 °C) -50 °C … +55 °C (T5) (T95 °C) -50 °C … +85 °C (T4) (T135 °C) |
| Ambient temperature | -58°F … +104°F (T6) (T80 °C) -58°F … +131°F (T5) (T95 °C) -58°F … +185°F (T4) (T135 °C) |
| Mechanical Data | |
| IP degree of protection (IEC 60529) | IP66 |
| Enclosure material | Stainless steel 1.4404, (AISI 316L), brush finished |
| External protective conductor connection | M8 |
| Silicone-free | No |
| Connection cross-section | 10 mm² |
| Connection cross-section AWG | AWG 8 |
| Connection cross-section AWG2 | AWG 0 |
| Cover thickness | 2 mm |
| Cover thickness inch | 0.079 in |
| Wall thickness | 1.5 mm |
| Wall thickness, inches | 0.059 in |
| Dimensions (WxHxD) inch | 14.2 x 14.2 x 5.9 inch |
| Width | 360 mm |
| Width, inches | 14.173 in |
| Height | 360 mm |
| Height, inches | 14.173 in |
| Depth | 150 mm |
| Depth, inches | 5.906 in |
| Material note | special version on request |
| Weight | 8 kg |
| Weight | 17.64 lb |
| Mounting / Installation | |
| Tightening torque lbf in | 0 lbf in |
| Tightening torque of cover screw 1 | 4.5 Nm |
| Cover screw 1 tightening torque lbf in | 39.83 lbf in |
| Components | |
| Flange and plates | Without flange |
| Entry 1 | 0 x |
| 1 inch entry | 0 in |
| Entry 2 | 0 x |
| Entry 3 | 0 |
| Entry 4 | 0 |
| Entry 5 | 0 |
| Entry 6 | 0 |
| Entries installation options/side | Without drilled holes |
| Terminal rail | 35 x 301 mm (1x) |
| Terminal rail | 1.38 x 11.85″ (1x) |
| Type of terminals 1 | 1 x Phoenix UT 2-conductor, 10 mm², grey |
| Components | |
| Type of terminals 2 | 0 |
| Type of terminals PE 1 | 1 x Phoenix UT 2-conductor, 10 mm², green-yellow |
We reserve the right to make alterations to the technical data, dimensions, weights, designs and products available without notice. The illustrations cannot be considered binding.
