STAHL 136900 Ex e Terminal Box

Installation Equipment

Ex e terminal box
8146/1093 Art. No. 136900

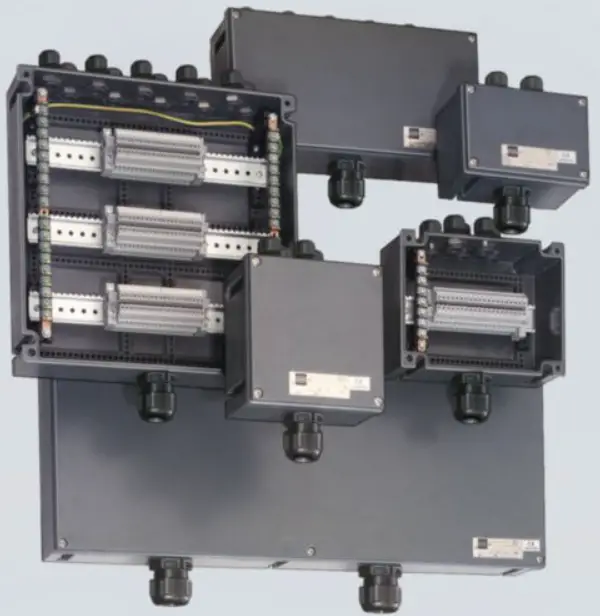

Wide range of Ex e terminal boxes in various sizes and materials, degree of protection IP66
Customized equipping in accordance with customer specifications
Enclosures with captive cover screws, if required, flange on enclosure sides is possible

Web Code 8146A
R. STAHL Series 8146 terminal boxes, made of high- quality, glass fibrereinforced polyester resin, are ideal for use in harsh operating conditions. With eight basic sizes in various heights, they are universally usable. If requested by the customer, they are equipped with series terminals up to 300 mm² and, as an option, a flange on several enclosure sides is possible.

Technical Data

Explosion Protection

Scope of validity	IECEx European Union (ATEX)
Application range (zones)	1 2 21 22
IECEX gas certificate	IECEx PTB 06.0046
IECEx gas explosion protection	Ex eb IIC T6 … T5 Gb
IECEX dust certificate	IECEx PTB 06.0046
IECEx dust explosion protection	Ex tb IIIC T80 °C / T95 °C Db
ATEX gas certificate	PTB 01 ATEX 1016
ATEX gas explosion protection	E II 2 G Ex eb IIC T6 … T5 Gb
ATEX dust certificate	PTB 01 ATEX 1016
ATEX dust explosion protection	E II 2 D Ex tb IIIC T80 °C / T95 °C Db
Certificates	ATEX (PTB), Brazil (ULB), Canada / USA (UL), Canada (UL), China (NEPSI), EAC (ENDCE), IECEx (PTB), India (PESO), Korea (KGS), Taiwan (ITRI), USA (UL)
Ship approval	BVIS
Explosion protection note	Product label may vary. Series devices have certification according to ATEX and IECEx.

Electrical Data

Rated operational voltage AC

0 – 690 V

Ambient Conditions

Ambient temperature	-60 °C … +40 °C (T6) -60 °C … +55 °C (T5) -60 °C … +70 °C (T4)
Ambient temperature	-76°F … +104°F (T6) -76°F … +131°F (T5) -76°F … +158°F (T4)

Mechanical Data

IP degree of protection (IEC 60529)	IP66
Enclosure material	Polyester resin, Glass fibre reinforced
Silicone-free	No
Connection cross-section	2.5 mm²
Connection cross-section AWG	AWG14
Connection cross-section AWG2	AWG 0
Cover thickness	2.8 mm
Cover thickness inch	0.11 in
Wall thickness	2.8 mm
Wall thickness, inches	0.11 in
Width	681.5 mm
Width, inches	26.831 in
Height	340.5 mm
Height, inches	13.4060 in
Depth	150 mm
Depth, inches	5.906 in
Enclosure colour	Dark grey
Weight	7.3 kg
Weight	16.09 lb

Mounting / Installation

Tightening torque of cover screw 1	4.5 Nm
Cover screw 1 tightening torque lbf in	39.83 lbf in

Components

Flange and plates	Without flange
Entries installation options/side	Without drilled holes
Terminal rail	35 x 637 mm (2x)
Terminal rail	1,38 x 25,08 ” (2x)
Type of terminals 1	1 x Phoenix UT 2-conductor, 2.5 mm², grey
Earth rail	18 x 4 mm² (2x)

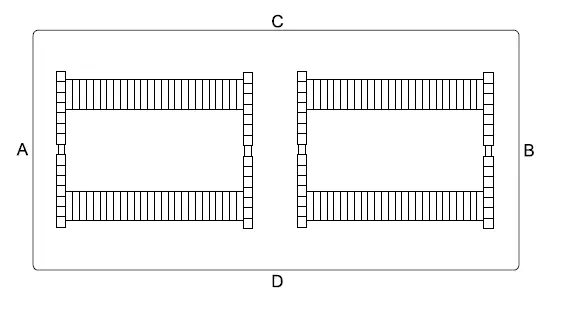

Technical Drawings – Subject to Alterations

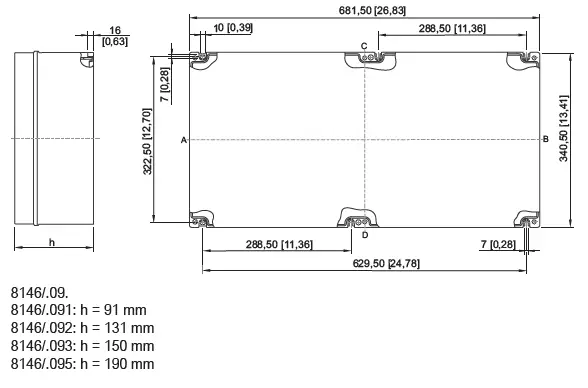

Dimensional Drawings (All Dimensions in mm [inches]) – Subject to Alterations

Accessories

Brass plate 2 mm for enclosure

for 8146/.093 (enclosure sides C2 / D2)

136982

Brass plate 3 mm for flanges Art. No.

for

8146/.073 (enclosure sides C / D) 8146/.083 (enclosure sides A / B) 8146/.093 (enclosure sides C1 / D1)

136621

Spare Parts

Brass plate 2 mm for enclosure Art. No.

	for 8146/.073 (enclosure sides C / D) 8146/.083 (enclosure sides A / B) 8146/.093 (enclosure sides C1 / D1)	136977
	for 8146/.S73 (enclosure sides C / D) 8146/.083 (enclosure sides C / D) 8146/.093 (enclosure sides C1 / D1)	136979

Brass plate 2 mm for flanges Art. No.

for flange size 2 (126 x 266 mm)

136960

Brass plate 3 mm for enclosure

for

8146/.S73 (enclosure sides C / D) 8146/.083 (enclosure sides C / D) 8146/.093 (enclosure sides A / B)

136626

Flange Art. No.

	Size 2: 126 x 266 mm, 2.8 mm thick	136045
	Size 2: 126 x 266 mm, 5.8 mm thick	136083

Frame Art. No.

Size 2,126 x 266 mm

136031

We reserve the right to make alterations to the technical data, dimensions, weights, designs and products available without notice. The illustrations cannot be considered binding.
