STAHL 136714 Ex e Terminal Box

Installation Equipment

Ex e terminal box
8146/1061 Art. No. 136714

Wide range of Ex e terminal boxes in various sizes and materials, degree of protection IP66
Customized equipping in accordance with customer specifications
Enclosures with captive cover screws, if required, flange on enclosure sides is possible

Web Code 8146A
R. STAHL Series 8146 terminal boxes, made of high- quality, glass fibrereinforced polyester resin, are ideal for use in harsh operating conditions. With eight basic sizes in various heights, they are universally usable. If requested by the customer, they are equipped with series terminals up to 300 mm² and, as an option, a flange on several enclosure sides is possible.

Technical Data

Explosion Protection

Scope of validity	IECEx European Union (ATEX)
Application range (zones)	1 2 21 22
IECEX gas certificate	IECEx PTB 06.0046
IECEx gas explosion protection	Ex eb IIC T6 … T5 Gb
IECEX dust certificate	IECEx PTB 06.0046
IECEx dust explosion protection	Ex tb IIIC T80 °C / T95 °C Db
ATEX gas certificate	PTB 01 ATEX 1016
ATEX gas explosion protection	E II 2 G Ex eb IIC T6 … T5 Gb
ATEX dust certificate	PTB 01 ATEX 1016
ATEX dust explosion protection	E II 2 D Ex tb IIIC T80 °C / T95 °C Db
Certificates	ATEX (PTB), Brazil (ULB), Canada / USA (UL), Canada (UL), China (NEPSI), EAC (ENDCE), IECEx (PTB), India (PESO), Korea (KGS), Taiwan (ITRI), USA (UL)
Ship approval	BVIS
Explosion protection note	Product label may vary. Series devices have certification according to ATEX and IECEx.

Electrical Data

Rated operational voltage AC

0 – 690 V

Ambient Conditions

Ambient temperature	-60 °C … +40 °C (T6) -60 °C … +55 °C (T5)
Ambient temperature	-76°F … +104°F (T6) -76°F … +131°F (T5)

Mechanical Data

IP degree of protection (IEC 60529)	IP66
Enclosure material	Polyester resin, Glass fiber reinforced

Mechanical Data

Silicone-free	No
Connection cross-section	2.5 mm²
Connection cross-section AWG	AWG14
Connection cross-section AWG2	AWG 0
Cover thickness	2.8 mm
Cover thickness inch	0.11 in
Wall thickness	2.8 mm
Wall thickness, inches	0.11 in
Width	227 mm
Width, inches	8.937 in
Height	170 mm
Height, inches	6.692 in
Depth	91 mm
Depth, inches	3.583 in
Enclosure colour	Dark grey
Weight	1.4 kg
Weight	3.09 lb

Mounting / Installation

Tightening torque of cover screw 1	4.5 Nm
Cover screw 1 tightening torque lbf in	39.83 lbf in

Components

Flange and plates	Without flange
Entries installation options/side	Without drilled holes
Terminal rail	35 x 189 mm (1x)
Terminal rail	1.38 x 7.44″ (1x)
Type of terminals 1	1 x Phoenix UT 2-conductor, 2.5 mm², grey
Earth rail	7 x 4 mm² (1x)

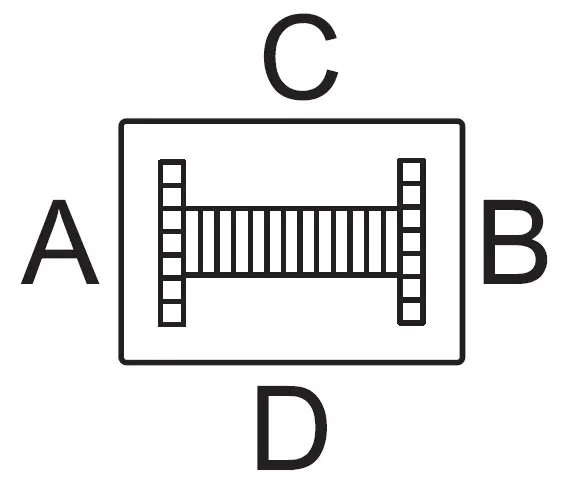

Technical Drawings – Subject to Alterations

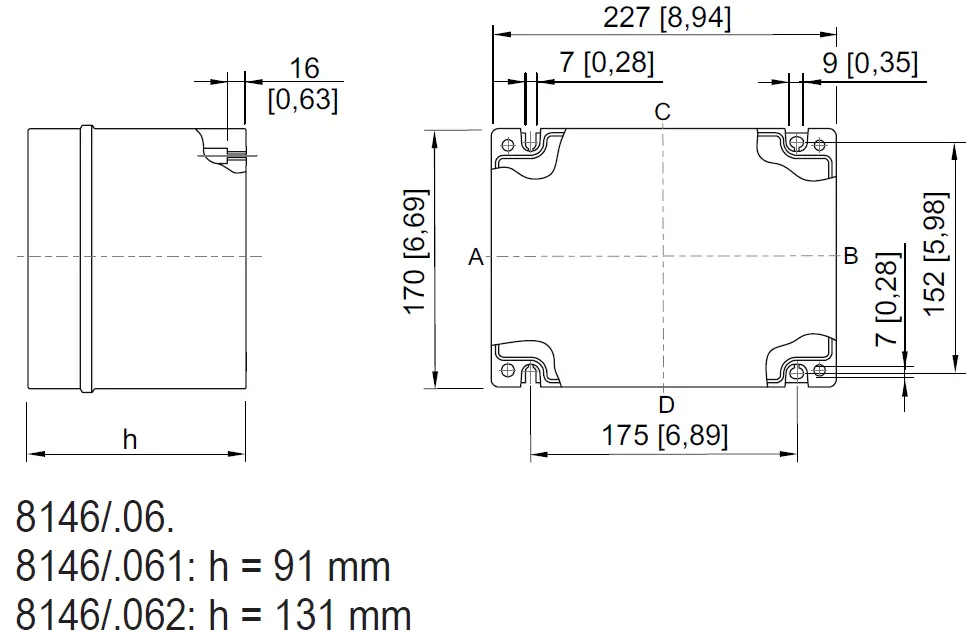

Dimensional Drawings (All Dimensions in mm [inches]) – Subject to Alterations

Accessories

8146/1061 Art. No. 136714

	for	136430
	8146/.051, 8146/.052 (enclosure sides C / D)
	8146/.061, 8146/.062 (enclosure sides A / B)
	8146/.071, 8146/.072 (enclosure sides A / B)
	for	136283
	8146/.051, 8146/.052 (enclosure sides C / D)
	8146/.061, 8146/.062 (enclosure sides A / B)
	8146/.071, 8146/.072 (enclosure sides A / B)

Brass plate 3 mm for flanges Art. No.

for flange size 1 (68 x 126 mm)

136201

Flange Art. No.

Size 1: 68 x 128 mm, 5.8 mm thick

136032

Spare Parts

Brass plate 2 mm for enclosure Art. No.

	for	136921
	8146/.051, 8146/.052 (enclosure sides C / D)
	8146/.061, 8146/.062 (enclosure sides A / B)
	8146/.071, 8146/.072 (enclosure sides A / B)
	for 8146/.061, 8146/.062 (enclosure sides C / D)	136933

Brass plate 2 mm for flanges Art. No.

for flange size 1 (68 x 126 mm)

136888

Brass plate 3 mm for enclosure Art. No.

for 8146/.061, 8146/.062 (enclosure sides C / D)

136374

Flange Art. No.

Size 1: 68 x 128 mm, 2.8 mm thick

135978

Frame Art. No.

Size 1, 68 x 128 mm

135974

We reserve the right to make alterations to the technical data, dimensions, weights, designs and products available without notice. The illustrations cannot be considered binding.
