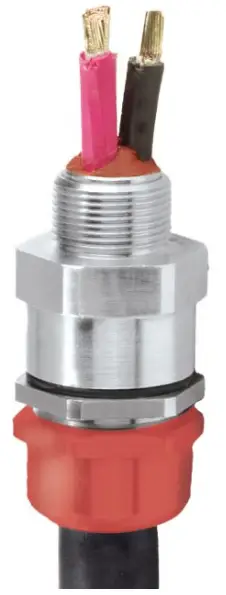

STAHL CMP-32PXSS2K Cable Gland with Compound
Product Information
- Product Name: CMP-32PXSS2K
- Art. No.: 109443
- Explosion Protection:
- Ex d and Ex e barrier cable entries
- Suitable for unarmoured cables and cables with wire-braid armouring
- Explosion protection certificates: IECEx gas certificate, IECEx dust certificate, IECEx firedamp certificate, ATEX gas certificate, ATEX dust certificate, ATEX firedamp certificate
- Ambient Conditions:
- Ambient temperature: -20°C to +60°C
- Degree of protection (IP): IP66/68
- Sealing material: Silicone-free compound
- Clamping range: 16mm to 32mm
- Max. number of cores: Dependent on cable diameter and type
- Gland size: M32 x 1.5
- Protrusion length: Dependent on cable diameter and type
Product Usage Instructions
- Select the appropriate size and type of cable to be used with the cable gland.
- Ensure that the cable is clean and free from any damage or defects.
- Remove any excess outer sheath from the cable to expose the conductor wires.
- Insert the cable through the cable gland and tighten the locknut until the gland is securely fastened onto the cable.
- Apply a suitable sealant compound around the cable sheath to create a watertight seal.
- Connect the conductor wires to the appropriate terminals or connectors.
- Ensure that all connections are secure and properly insulated.
- Verify that the cable gland is installed in the appropriate hazardous area according to the explosion protection certificate and local regulations.
Note: For further technical details, refer to the manufacturer’s website or consult with a certified technician.
Installation Equipment and Accessories
Cable gland with compound
- Cable entry for unarmoured cables and cables with wire- braid armouring
- Designed to prevent cold flow
- Worldwide certification in accordance with IECEx, ATEX, UL and cCSAus
WebCode PXSS2KA
PXSS2K series metal Ex d and Ex e barrier cable entries are suitable for unarmoured cables and cables with wire- braid armouring. They are equipped with a compound barrier. They feature a displacement seal for the outer cable sheath coupled with a double flood seal with integral protection.
Technical Data
| Explosion Protection | |
| Ex version | Ex e & Ex d & Ex nR & Ex ta |
| Application range (zones) | 1 2 20 21 22 |
| IECEx gas certificate | IECEx CML 18.0182X |
| IECEx gas explosion protection | Ex db IIC Gb |
| IECEx dust certificate | IECEx CML 18.0182X |
| IECEx dust explosion protection | Ex ta IIIC Da |
| IECEX firedamp certificate | IECEx SIM 14.0008 X |
| IECEx firedamp protection | Ex db I Mb |
| IECEx firedamp protection 2 | Ex eb I Mb |
| IECEx restricted breathing certificate | IECEx CML 18.0182X |
| IECEx restricted breathing | Ex nR IIC Gc |
| ATEX gas certificate | CML 18ATEX1325X |
| ATEX gas explosion protection | E II 2 G Ex db IIC Gb |
| ATEX dust certificate | CML 18ATEX1325X |
| ATEX dust explosion protection | E II 1 D Ex ta IIIC Da |
| ATEX firedamp certificate | CML 18ATEX1325X |
| ATEX firedamp protection | E I M2 Ex db I Mb |
| ATEX firedamp protection 2 | E I M2 Ex eb I Mb |
| ATEX restricted breathing certificate | CML 18ATEX4317X |
| ATEX restricted breathing | E II 3 G Ex nR IIC Gc |
| Notes | The product certification and certificates can be downloaded from the manufacturer’s homepage (www.cmp-products.com) |
| Ambient Conditions | |
| Ambient temperature | -60 °C … +85 °C |
Mechanical Data
| Version | 32 |
| Strain relief | No |
| Degree of protection (IP) | IP66 |
| Degree of protection note | IP67 and IP68 mounting in accordance with the specifications of the manufacturer, CMP |
| Sealing material | SOLO LSF |
| Sealing ring material | Viton |
| Material | Nickel-plated brass |
| Silicone-free | Yes |
| Clamping range | 17 – 26.3 mm |
| Armouring type | Unarmoured cable types |
| Clamping range | 17…. 26.3 mm |
| Max. number of cores | 38 |
| Construction type | BS 6121, IEC/EN 62444 |
| Width across corners | 45.1 mm |
| Width across flats | 41 mm |
| Thread size | M32 |
| Thread length | 15 mm |
| Thread pitch | 1,5 |
| Thread standard | Metric |
| Gland size | 32 |
| Inner sheath | 23.6 mm |
| Max. internal conduit diameter | 23.6 mm |
| Outer sheath | 17 … 26.3 mm |
| Protrusion length | 61.1 mm |
| Impact strength | 20 J |
| PVC boot | PVC10 |
| Lot size | 1 |
| Weight | 0.39 kg |
| Weight | 0.86 lb |

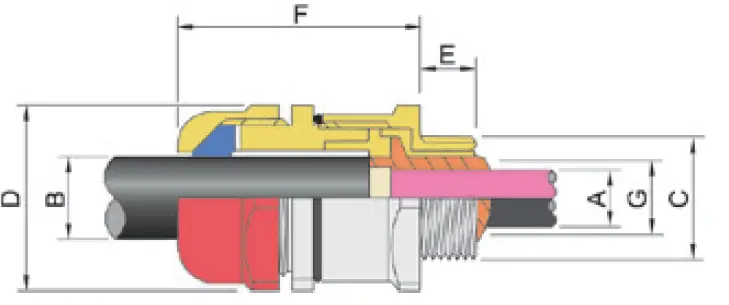

Dimensional Drawings (All Dimensions in mm [inches]) – Subject to Alterations
- A = Max. inner sheath
- G = Max. internal conduit diameter
- B = Outer sheath
- C = Thread size
- D = Width across corners
- D = Width across flats
- E = Thread length
- F = Protrusion length
We reserve the right to make alterations to the technical data, dimensions, weights, designs and products available without notice. The illustrations cannot be considered binding.
