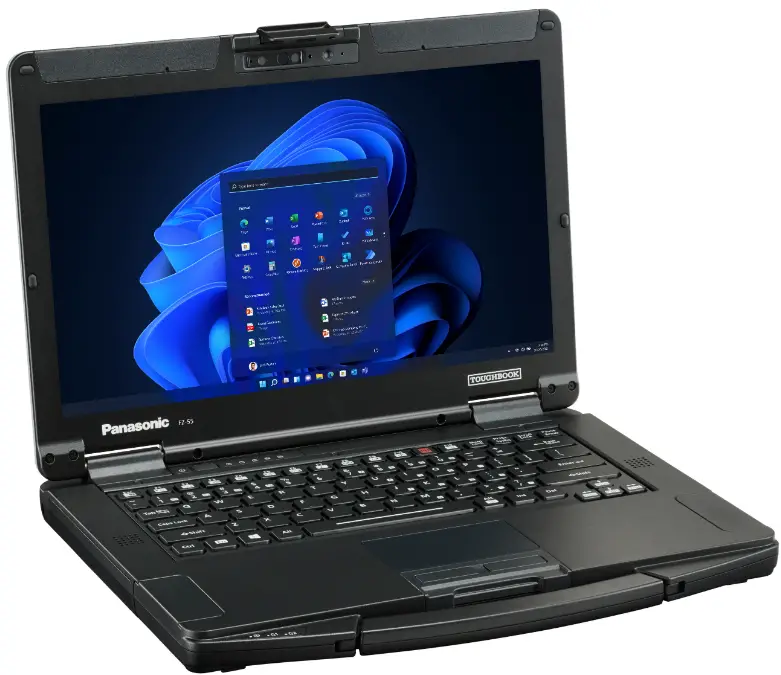

Panasonic CONNECT TOUGHBOOK 55 Full-HD Touch Screen Owner’s Manual
TOUGHBOOK 55 with Windows 11 Pro, magnesium chassis, flexible configurations and universal bay is the most versatile 14″ rugged Toughbook ever built, but doesn’t compromise on durability, with an unique ‘honeycomb’ design for improved strength and splash resistant design. In terms of flexibility, the TOUGHBOOK 55 is equally outstanding. It offers a huge array of configuration options, making it easier for customers to have exactly the device they want.

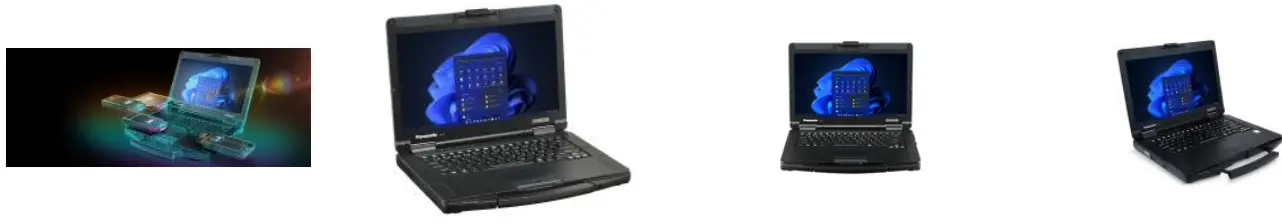

Instruction
| Mobile Computing Platform | Intel® Core™ i5 1145G7 vPro™ Processor |
| Operating System | Windows 11 Pro / Windows 10 Downgrade Model available |
| RAM | 8GB DDR4 RAM (max. 64GB) |
| Graphic Chip | Intel® UHD Graphics, support Intel® Iris® Xe Graphics when 2 RAM Modules installed |
| Storage | 512GB NVMe OPAL SSD (with heater) |
| LCD | 14″ Active Matrix (TFT) colour LCD 1920 x 1080 pixels (Full-HD), capacitive 10 finger Touch Screen |
| Bluetooth™ | 5.1 |
| Wireless LAN | Intel® Wi-Fi6 AX201 |
| Mobile Broadband* | 4G LTE, EM7455, eSIM support |
| Global Positioning* | u-blox NEO-M8N (supports GPS, GLONASS, Beidou, Galileo) |
| LAN | IEEE 802.3 10Base-T / IEEE 802.3u 100BASE-TX / IEEE 802.3ab 1000BASE-T (2nd GLAN optional |
| Sound | WAVE and MIDI playback, Intel® High Definition Audio subsystem support |
| Enhanced Voice Recognition* | 4 Microphones (included in Front Camera) |
| Front Camera | 2 MP with IR / privacy shutter (Windows Hello compliant) |
| Micro SDXC Memory Car | x1 |
| USB 3.2 | x2 |
| Thunderbolt 4 | x1 |
| USB 3.1 type C PD | x1 |
| HDMI | x1 |
| Headset | x1 |
| DC InDC In | x1 |
| Port Replicator | x1 |
| Dual Path Through Connector* | x1 |
| TOUGHBOOK Universal Bay** | 2nd SSD, Smart Card Reader, DVD Multi Drive, Blu Ray Drive |
| Front Expansion Slot** | nd Battery, Fingerprint Reader, HF-RFID Reader (Contactless Smart Card), Smart Card Reader |
| Rear Expansion Slot** | VGA + True Serial + 4th USB 3.2, VGA + True Serial + 2nd native GLAN, VGA + True Serial + Rugged USB 2.0 |
| AC Adapter | Input: 100V – 240V AC, 50Hz/ 60Hz, Output: 15.6V DC, 7.05A |
| Battery | Lithium-Ion 10.8V, 6500mAh (typ.), 6300mAh (min.) |
| Battery Life | Approx. 18 hours (Mobile Mark™ 2014) Approx. 36 hours with 2nd battery (Mobile Mark™ 2014)” |
| Power Management | Standby function, ACPI BIOS |
| Hot Swap* | With 2nd Battery |
| Dimensions (WxHxD) | 345mm x 272mm x 32.8mm |
| Weight | Approx. 2.22 kg |
| Drop Resistance*** | 91cm |
| Dust Resistance*** | IP5x |
| Water Resistance*** | IPx3 |
| Operating Temperature*** | -29°C to +60°C |
| Standard Configuration | FZ-55mk2 (Full-HD with touchscreen), 8GB RAM, 512GB SSD, battery pack |
| Included in the box | Power Supply, Power Cord, capacitive pen, Display cleaning cloth and User Manua |
Key Features
Intel® Core™ i5 1145G7 vPro™ Processor Windows 11 Pro / Windows 10 Downgrade Model available 14″ Full-HD Active Matrix LCD, capacitive Touch Screen, 1.000cd/m² brightness Maximum flexibility by two Expansion Slots and TOUGHBOOK Universal Bay; up to 18 hours battery life with standard battery Up to 18 hours battery life with standard battery
