Panasonic CONNECT TOUGHBOOK 33 Tablet Owner’s Manual
Introduction
Tablet total minter resistant con Windows 11 Pro con patella Full-HD de 12″ para exteriors.

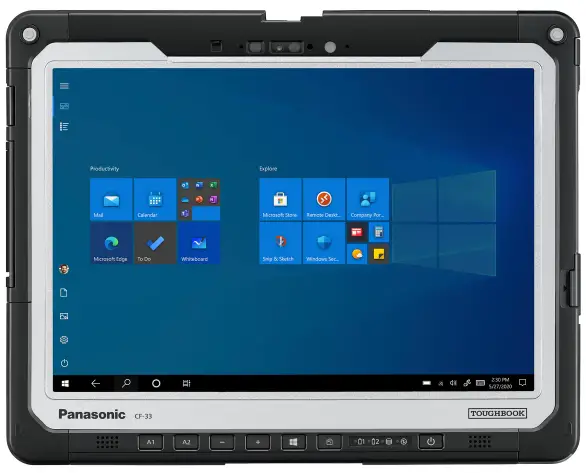

TOUGHBOOK 33 Tablet
TABLET TOTALMENTE RESISTENTE CON WINDOWS 11 PRO CON PANTALLA FULL-HD DE 12″ PARA EXTERIORES

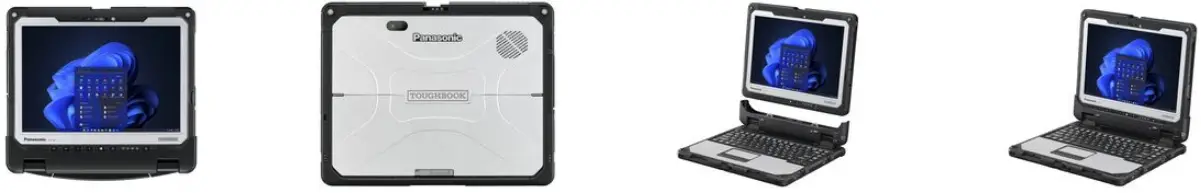

Product Overview
Key Features
- Processor Intel® Core™ i5-10310U vPro™
- Model de downgrade de Windows 11 Pro / Windows 10 Responsible
- LCD a color de matrix activate (TFT) de 12,0″ y 2160 x 1440 (QHD) con patella tactile capacitive compatible con el use de gauntest visible a la luz del sol (hasta 1200 cd/m²), digitalized IP55
- Resistant al agua y al polo IP65**, certification MIL-STD 810G**
Specification
| Mobile Computing Platform | Intel® Core™ i5-10310U vPro™ Processor |
| Operating System | Windows 11 Pro / Windows 10 Downgrade Model available |
| RAM | 16GB (max. 32GB) DDR4 |
| Graphic Chip | Intel® UHD Graphics |
| Storage | 512GB OPAL NVMe SSD (1TB optional) with heater |
| LCD | 12.0″ Active Matrix (TFT) colour LCD 2160 x 1440 (QHD) LCD with sunlight-viewable glove-enabled capacitive touchscreen (up to 1.200cd/m²), IP55 Digitizer |
| Bluetooth™ | 4.2 + EDR Class 1 |
| Wireless LAN | Intel® WI-Fi6 AX201 |
| Mobile Broadband* | 4G LTE, supports 3G |
| GPS | U-Blox NEO-M8N |
| LAN | x1 |
| Sound | WAVE and MIDI playback, Intel® High Definition Audio subsystem support |
| Security | TPM (TCG V2.0 compliant) Password security (supervisor password, user password, hard disc lock) Integrated hardware security lock slot |
| Front Camera | 2 MP with IR / privacy shutter (Windows Hello compliant) |
| Rear Camera | 8mpixel with autofocus and LED flash |
| Micro SD/SDXC Memory Card | Project based |
| Configuration port (Tablet)** | Serial, 2D Barcode Reader, 2nd USB 2.0 |
| USB 3.1 | x1 |
| USB 3.1 type C PD | x1 |
| USB 2.0** | x1 |
| HDMI | x1 |
| Native Serial Port** | x1 |
| Headset | x1 |
| DC In | x1 |
| Port Replicator | x1 |
| Dual Antenna Connector | x1 |
| Business Expansion Module** | Smart Card Reader, NFC, Fingerprint Reader |
| AC Adapter | Input: 100 V – 240 V AC, 50 Hz/ 60 Hz, Output: 15.6 V DC, 4.06A |
| Battery | Standard: x2 Li-Ion (3 cell, 22Whr) Extended: x2 Li-Ion (6 cell, 45 Whr) optional |
| Battery Life | Standard: Approx. 11 hours (Mobile Mark™ 2014) Extended: Approx. 22 hours (Mobile Mark™ 2014) |
| Power Management | Hot swap, Standby function, ACPI BIOS |
| Dimensions (WxHxD) | Standard Battery: 308.0 mm × 243.6 mm × 21.6 mm / 12.1″ × 9.6″ × 0.9″ Extended Battery: 308.0 mm x 243.6 mm x 32.1 mm / 12.1″ x 9.6″ x 1.3″ |
| Weight | Standard Battery: 1.56kg / 3.5lb Extended Battery: 1.91kg / 4.2lb |
| Drop Resistance | MIL-STD 810G, 150cm*** |
| Dust Resistance | IEC529 ( JIS C0920) IP6x*** |
| Water Resistance | IEC529 ( JIS C0920) IPx5*** |
| Operating Temperature | MIL-STD 810G, -29 °C to 60 °C *** |
| Standard Configuration | CF-33mk2 Tablet, 16GB RAM, 512GB SSD, 2x standard battery pack, IP55 digitizer pen |
| Included in the box | Power Supply, Power Cord, Display cleaning cloth and User Manual |
| Footnote | Optional One option exclusive possible in configuration port / business expansion module Tested by an independent third party lab following MIL-STD-810G and IEC 60529, Sections 13.4, 13.6.2, 14.2.5 and 14.3 |
