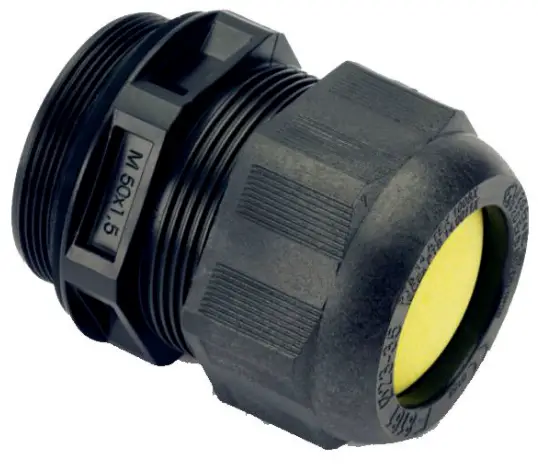

STAHL 246318 Cable Gland
Installation Equipment and Accessories
- Ex e cable glands for all armoured cables: SWA, braid- and tape- type steel or aluminium armouring
- Safety provided by flood seal with integral protection and controlled outer load retention seal
- Worldwide certification in accordance with IECEx and ATEX, EMC- tested
WebCode C2KA
C2K series metal Ex e cable glands are suitable for all types of armoured cables, i.e. for SWA, braid- and tape- type steel and aluminium armouring. They feature a multifunctional holder for the armouring and various seals. They are also EMC- tested.
Technical Data
| Explosion Protection | |
| Ex version | Ex e & Ex nR & Ex ta |
| Application range (zones) | 1 2 20 21 22 |
| IECEx gas certificate | IECEx CML 18.0180X |
| IECEx gas explosion protection | Ex eb IIC Gb |
| IECEx dust certificate | IECEx CML 18.0180X |
| IECEx dust explosion protection | Ex ta IIIC Da |
| ATEX gas certificate | CML 18ATEX1323X |
| ATEX gas explosion protection | E II 2 G Ex eb IIC Gb |
| ATEX dust certificate | CML 18ATEX1323X |
| ATEX dust explosion protection | E II 1 D Ex ta IIIC Da |
| EAC certificate | TS RU S-GB.AA87.B.00487 |
| EAC gas explosion protection | 7 1 Ex e IIC Gb X 7 2 Ex nR IIC Gc X |
| EAC dust explosion protection | 7 Ex ta IIIC Da X |
| Notes | The product certification and certificates can be downloaded from the manufacturer’s homepage (www.cmp-products.com) |
| Ambient Conditions | |
| Ambient temperature | -60 °C … +130 °C |
| Mechanical Data | |
| Version | 50 |
| Strain relief | No |
| Degree of protection (IP) | IP66 |
| Degree of protection note | IP67 and IP68 mounting in accordance with the specifications of the manufacturer, CMP |
| Mechanical Data | |
| Sealing material | SOLO LSF |
| Sealing ring material | Viton |
| Material | Nickel-plated brass |
| Silicone-free | Yes |
| Clamping range | 40.4 – 53 mm |
| Armouring type | All armouring |
| Armouring type 2 | Without lead sheath |
| Clamping range | 40.4 … 53 mm |
| Construction type | BS 6121, IEC/EN 62444 |
| Width across corners | 77.1 mm |
| Width across flats | 70.1 mm |
| Thread size | NPT2 |
| Thread length | 26.9 mm |
| Thread pitch | 11,5 TPI |
| Thread standard | NPT |
| Gland size | 50 |
| Grooved cone | 0.6 … 1.6 mm |
| Stepped cone | 2 … 2.5 mm |
| Inner sheath | 44.1 mm |
| Outer sheath | 40.4 … 53 mm |
| Protrusion length | 77 mm |
| Impact strength | 20 J |
| PVC boot | PVC21 |
| Lot size | 1 |
| Weight | 1.13 kg |
| Weight | 2.49 lb |
Dimensional Drawings (All Dimensions in mm [inches]) – Subject to Alterations
- A = Max. inner sheath
- B = Outer sheath
- C = Thread size
- D = Width across corners
- D = Width across flats
- E = Thread length
- F = Protrusion length
We reserve the right to make alterations to the technical data, dimensions, weights, designs and products available without notice. The illustrations cannot be considered binding.
