Rs Pro 811-1511 Black Nylon Cable Tie Owner's Manual (+ PDF)

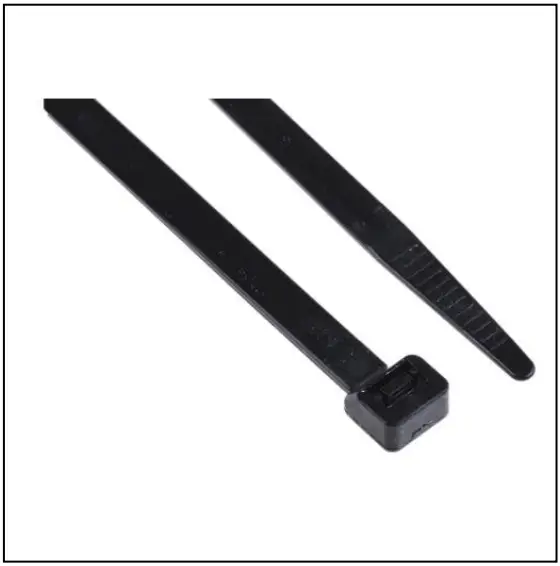

RS PRO Black Nylon
Cable Tie, 300mm x 7.6 mm

RS Stock No.: 811-1511

RS Professionally Approved Products bring to you professional quality parts across all product categories. Our product range has been tested by engineers and provides a comparable quality to the leading brands without paying a premium price.

Contents hide

1 FEATURES

2 Product Description

3 General Specifications

4 Mechanical Specifications

5 Approvals

6 Documents / Resources

6.1 References

7 Related Posts

FEATURES

Excellent UV resistance
Flame retardant: UL 94V-2 Flammability Standard
Suitable for a multitude of uses
Easy to thread and install
Ideal for use outdoors

Product Description

These ties are a one-piece, self-locking fastener and function like straps to keep cables tidy. They are available in a range of sizes. The design of a cable tie includes a head which provides the slot for the tape to be pulled through, to make a loop. The cable can be pulled through the slot until the preferred loop is achieved and then the excess cable can be cut off.

General Specifications

Type	Non-Releasable
Colour	Black
Material	Nylon 66
Application	Cable management Home/DIY Garden
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	85°C
Fire Behaviour	Flame Retardant
Quantity	100

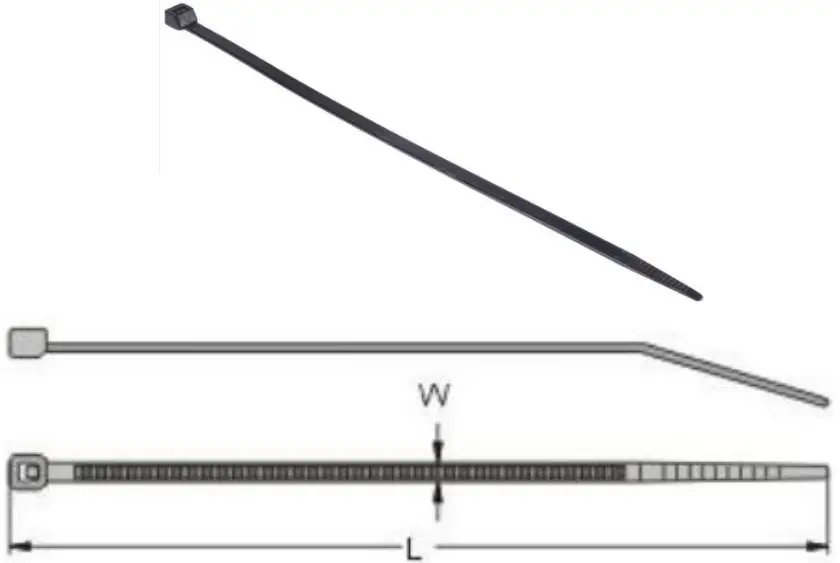

Mechanical Specifications

Length	300mm
Width	7.6mm
Tensile Strength	539N
Maximum Bundle Strength	80mm

Approvals

Standards Met

UL 94V-2

Item No.	Length L		Width W	Max. Bundle Dia.	Min Loop Tensile Strength		packing
Item No.	mm	inch	Width W	Max. Bundle Dia.	lbs	kgs	packing
8111482	100		3.	22	18	8	100PC:BG
P 8111486	142	51	3.	34	40	18
8111495	190	7112″	2.	49	50	22
8111498	203	8″	5.	52	50	22
8111518	240	9 – -h”	8.	61	120	55
8111505	300	11 “	5.	83	50	22
8111511	300	11 ,”	8.	80	120	55
8111509	380	15″	8.	105	120	55
8111492	385	15 116″	5.	110	50	22
8111502	450	173:4″	5.	131	50	22
8111515	450	1714″	8	128	120	55
8111524	610	24″	9	177	175	80
8111527	750	29	8.	223	120	55
