Internal Cable Trunking
Instruction Manual

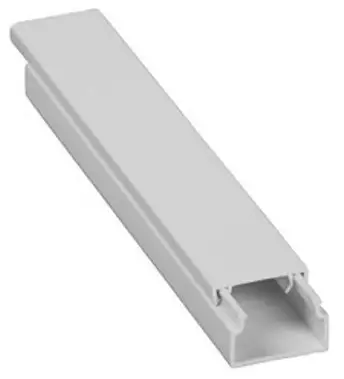

Internal Cable Trunking
RS Professionally Approved Products bring to you professional quality parts across all product categories. Our product range has been tested by engineers and provides a comparable quality to the leading brands without paying a premium price.
FEATURES
- VDE proofed
- Rigid PVC, white RAL 9010
- Dimensions available:
• 15 x 15 mm
• 18 x 18 mm
• 30 x 30 mm
• 40 x 40 mm
• 60 x 40 mm
• 60 x 60 mm
• 90 x 60 mm
• 110 x 60 mm - 2 m length
- Base including cover
- Hardly-inflammable, self-extinguishing
- Perforated buttom
- Ideal for new installation or renovation
- Designed for the use of dividers from size 60×60 mm onwards
- Two cable holders included from size 60×40 mm onwards
- External and internal corners and end caps avaible from size 40x40mm onwards
Product Description
Product details:
- PVC installation trunking in white colour RAL 9010, with cover included
- For direct installation on wall and ceiling
- The material is hardly-inflammable and self-extinguishing
- The base with perforated bottom (distance 125 mm) allows an easy installation with screws
- Ideal for new installation or renovation
- The trunking is designed for the use of dividers from 60 x 60 mm onwards
- Two included cable holders per meter from 60 x 40 mm onwards for easy installation
- External corner parts, internal corner parts and end caps are available from size 40 x 40 mm onwards
General Specifications
| Colour | White, RAL 9010 |
Mechanical Specifications
| Material | PVC ( Polyvinylchlorid) |
Additional Information
| EAN | |
| Custom Tariff Number | 39259020 |
Classification
| eCl@ss (Version) | |
| UNSPSC (Version) |
Approvals
| Standards | VDE proofed and certificated according DIN EN 50085-1 and DIN EN 50085-2-1 |
| RoHS compliant | yes |
Similar Products
| Stock No. | Product Name | Width | Height | Length / Piece | Packsize |
| 2213612, 2213613 | Installation Trunking | 15 mm | 15 mm | 2000 mm | 14 m |
| 2213614, 2213615 | Installation Trunking | 18 mm | 18 mm | 2000 mm | 16 m |
| 2213616, 2213617 | Installation Trunking | 30 mm | 30 mm | 2000 mm | 10 m |
| 2213621, 2213622 | Installation Trunking | 40 mm | 40 mm | 2000 mm | 8 m |
| 2213623, 2213625 | Installation Trunking | 60 mm | 40 mm | 2000 mm | 14 m |
| 2213626, 2213627 | Installation Trunking | 60 mm | 60 mm | 2000 mm | 8 m |
| 2213628, 2213629 | Installation Trunking | 80 mm | 60 mm | 2000 mm | 6 m |
| 2213631, 2213632 | Installation Trunking | 110 mm | 60 mm | 2000 mm | 4 m |
| Accessories | |||||
| 2213619, 2213620 | Divider | for use with trunking from 60 mm | 10 m | ||
| External Corner | for 40 x 40 mm trunking | 1 piece | |||
| Internal Corner | for 40 x 40 mm trunking | 1 piece | |||

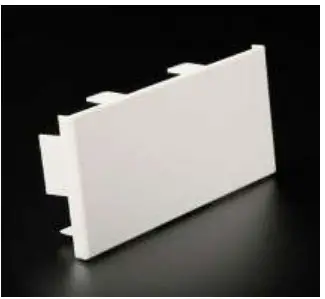

| End Cap | for 40 x 40 mm trunking | 1 piece | |||
| External Corner | for 60 x 40 mm trunking | 1 piece | |||
| Internal Corner | for 60 x 40 mm trunking | 1 piece | |||
| End Cap | for 60 x 40 mm trunking | 1 piece | |||
| External Corner | for 60 x 60 mm trunking | 1 piece | |||
| Internal Corner | for 60 x 60 mm trunking | 1 piece | |||
| End Cap | for 60 x 60 mm trunking | 1 piece | |||
| External Corner | for 90 x 60 mm trunking | 1 piece | |||
| Internal Corner | for 90 x 60 mm trunking | 1 piece | |||
| End Cap | for 90 x 60 mm trunking | 1 piece | |||
| External Corner | for 110 x 60 mm trunking | 1 piece | |||
| Internal Corner | for 110 x 60 mm trunking | 1 piece | |||
| End Cap | for 110 x 60 mm trunking | 1 piece | |||
Accessories

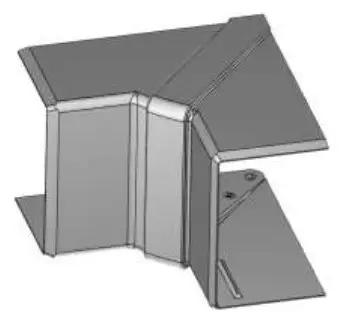

| External Corner | Internal Corner |
 |  |

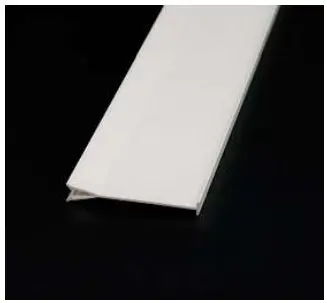

| Internal Corner | Divider |
 |  |
