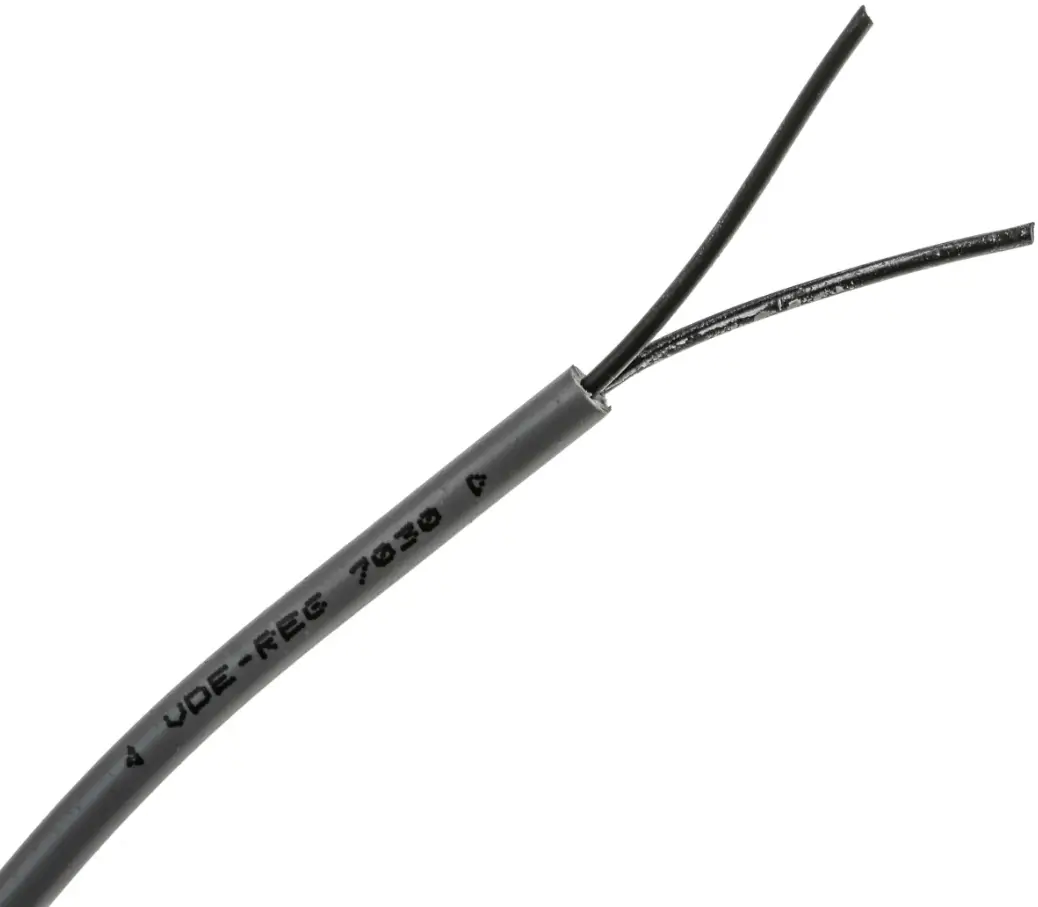

RS PRO 827-4243 YY Cable User Guide
FEATURES
- Ideal for space saving installations
- YY control cable has a grey PVC outer sheathing
- Good chemical resistance
- Versatile multi-core power and signal cables
- White numbers on the outer sheath
RS Professionally Approved Products bring to you professional quality parts across all product categories. Our product range has been tested by engineers and provides a comparable quality to the leading brands without paying a premium price.
Product Description
The YY control cables from RS PRO are unscreened, reliable connecting electrical cables which combine the characteristics of a flexible mains cable, coupled with saving space due to the small cable diameters suitable for fixed installations.
General Specifications
| Cable Shape | Multicore |
| Screened/Unscreened | Unscreened |
| Sheath Colour | Grey |
| Sheath Material | Polyvinyl Chloride PVC |
| Filler Material | Non-Wicking Filler |
| Fire Behaviour | Flame Retardant |
| Applications | Plant engineering, Conveyor and transport systems, Heating and air-conditioning systems |
Electrical Specifications
| Current Rating | 12A |
| Voltage Rating | 300V/500V |
| Maximum Conductor DC Resistance | 26O/km |
| Test Voltage | 4000VAC |
| Earth Cable | No |
| Conductor Material | Bare Copper |
| Insulation Material | PVC |
Mechanical Specifications
| Length | 50m |
| Number of Cores | 2 |
| Number of Strands | 24 |
| Size of Strands | 0.20mm |
| Core Strands | 24/0.20mm |
| Cross Sectional Area | 0.75mm^2 |
| Outer Diameter | 5.4mm |
| American Wire Gauge | 18 |
| Minimum Bend Radius | Fixed – 4 x D Occasional Flexing – 10 x D |
| Oil Resistant | Yes |
| Armoured | No |
| Weight | 45kg/km |
Operation Environment Specifications
| Operating Temperature Range | Flexing: | Static: |
| -5°C to 70°C | -40°C to 80°C | |
| Minimum Operating Temperature | -5°C | 40°C |
| Maximum Operating Temperature | 70°C | 80°C |

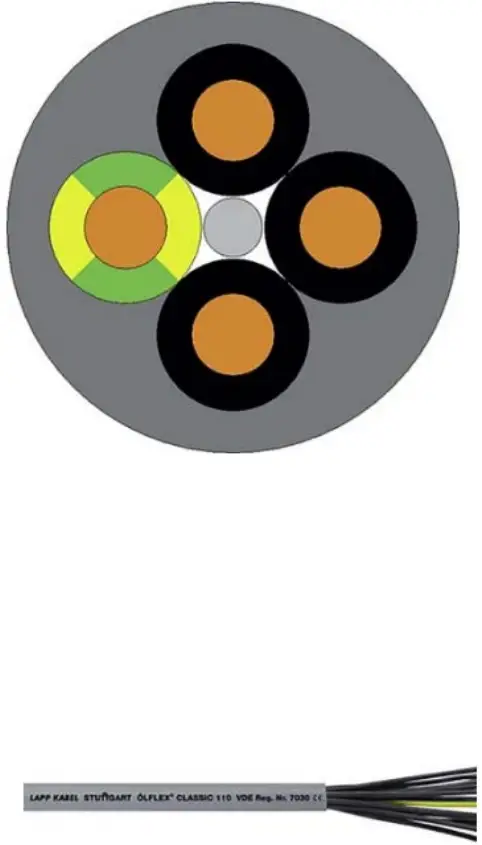

Approvals
| Compliance/Certifications | RoHS Certificate Of Compliance |
| Standards Met | IEC 60228/VDE 0295, IEC 60 228 that is VDE 0295, class 5 ,IEC 60332.1 , ECD 73/23/EEC |
| Part Number | No. Cores x Cross Sectional Area (mm9 | Outer Diameter (mm) | Weight Kg/Km |
| 8274234 | YY 2×0.5 | 5. | 35 |
| 8274252 | YY 3G0.5 | 5. | 42 |
| 8274268 | YY 4G0.5 | 6. | 54 |
| 8274274 | YY 5G0.5 | 6. | 63 |
| 8274293 | YY 7G0.5 | 7. | 81 |
| 8274300 | YY 12G0.5 | 9. | 131 |
| 8274307 | YY 18G0.5 | 11. | 188 |
| 8274319 | YY 25G0.5 | 12. | 261 |
| 8274243 | YY 2G0.75 | 5. | 45 |
| 8274278 | YY 5G0.75 | 7. | 79 |
| 8274296 | YY 7G0.75 | 7. | 101 |
| 8274313 | YY 25G0.75 | 14. | 337 |
| 8274246 | YY 2×1.0 | 6. | 53 |
| 8274287 | YY 5G1.0 | 7. | 94 |
| 8274290 | YY 7G1.0 | 8.0 | 126 |
| 8274303 | YY 12G1.0 | 11. | 205 |
| 8274316 | YY 18G1.0 | 13. | 320 |
| 8274322 | YY 25G1.0 | 15. | 408 |
| 8274240 | YY 2×1.5 | 6. | 68 |
| 8274325 | YY 25G1.5 | 17. | 560 |
| 8274259 | YY 2×2.5 | 8. | 101 |
| 8274329 | YY 25G2.5 | 21. | 890 |
| 8274256 | YY 3G4.0 | 10. | 201 |
| 8274262 | YY 4G4.0 | 11. | 249 |
| 8274280 | YY 5G4.0 | 12. | 294 |
| 8274265 | YY 3G6.0 | 12. | 289 |
| 8274271 | YY 4G6.0 | 13.0 | 365 |
| 8274284 | YY 5G6.0 | 15. | 447 |
