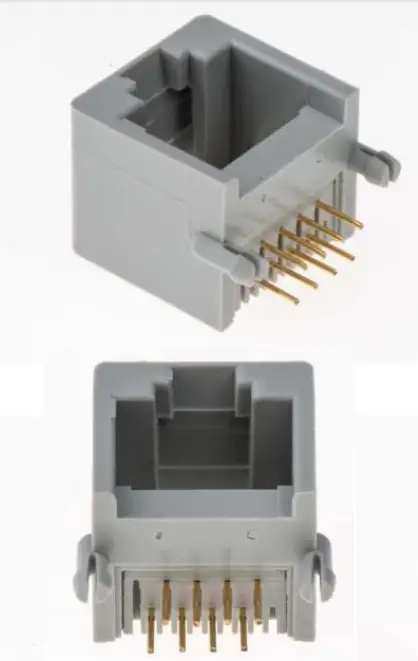

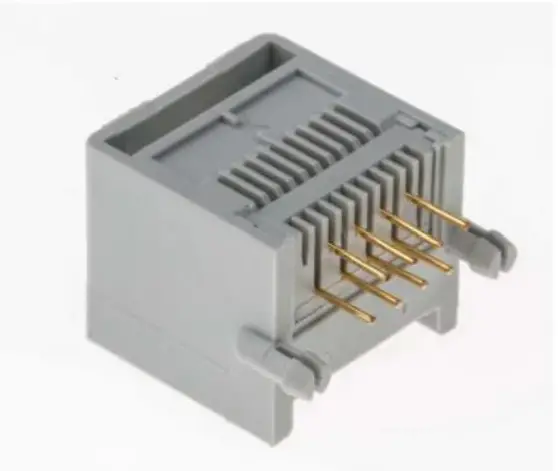

Ethernet Connectors
RS PRO, Female Cat5 RJ45
Connector
RS Stock No.: 331-6437
FEATURES
- Suitable for Cat5e Ethernet Applications
- Compatible with cable mount RJ45 plugs Right Angle Connection
- Gold over nickel contact plating for a reliable connection
RS Professionally Approved Products bring to you professional quality parts across all product categories. Our product range has been tested by engineers and provides a comparable quality to the leading brands without paying a premium price.
Product Description
From RS PRO, this 8-pin RJ45 connector is a low-profile solution to PCB network connections. The connector attaches easily to printed circuit boards via through-hole mounting for an assured data socket connection in device housing or for daisy-chaining modular devices in projects. The receptacle’s low-profile design means it is ideal for applications where space saving is a concern.
General Specifications
| Ethernet Connector Type | RJ45Connector |
| Gender | Female |
| LAN Category | Cat5 |
| Number of Ways | 8 |
| Connector Type | RJ45 |
| Shield Type | Unshielded |
| Orientation | Right Angle |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold over Nickel |
| Applications | Modems, PC and Laptop computers, Smart televisions |
Electrical Specifications
| Contact Resistance | 30 mΩ |
| Insulator Resistance | 500MΩ |
| Current rating | 1.5A |
| Dielectric Withstanding Voltage | 1000VAC.RMS,60Hz,1minute |
| Voltage rating | 125V |

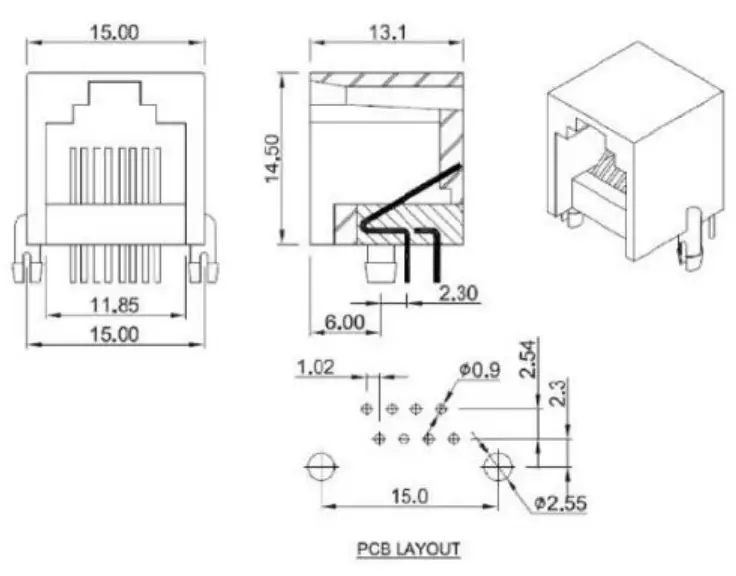

Mechanical Specifications
| Mounting Type | PCB Mount |
| Length | 14.5mm |
| Width | 15mm |
| Depth | 13mm |
| Durability | 750 Mating cycles minute |
| Plug Retained Force | 11kg max. |
Operation Environment Specifications
| Operating Temperature | -40 to 125°C |
Approvals
| Compliance/Certifications | ROHS Certificate Of Compliance |
