Legrand Rj 45 High Density Connectors Instructions

LCS™

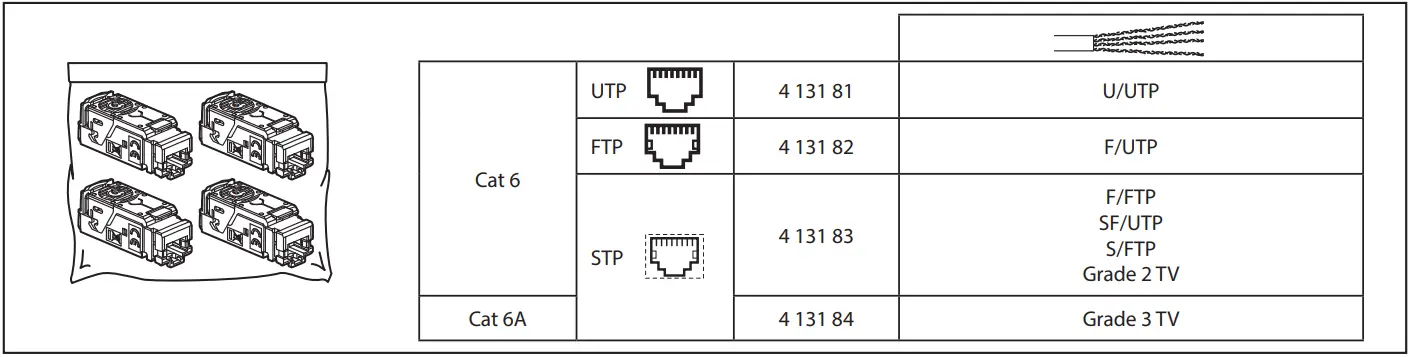

RJ 45 – Cat 6 UTP/FTP/STP – Cat 6A STP
Instructions

RJ 45 High-Density Connectors

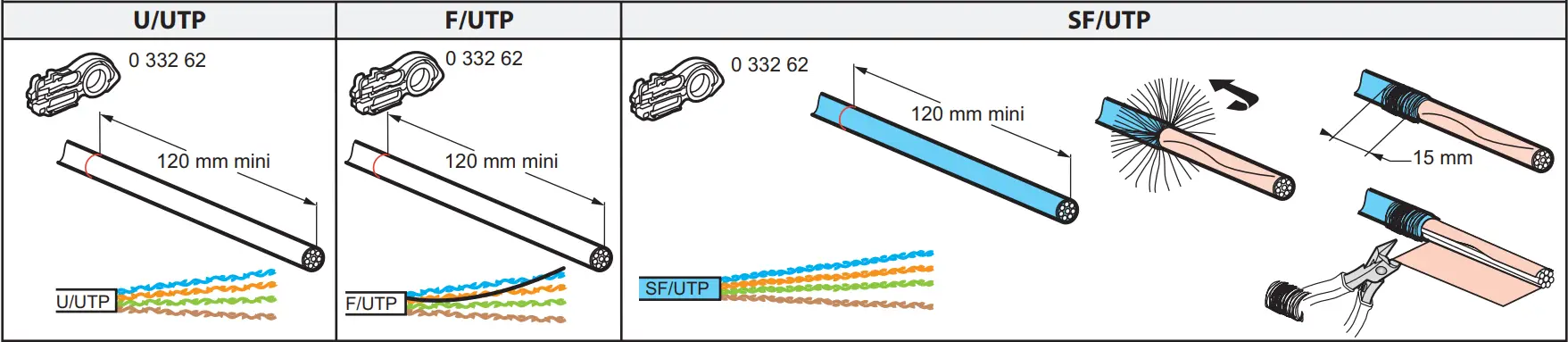

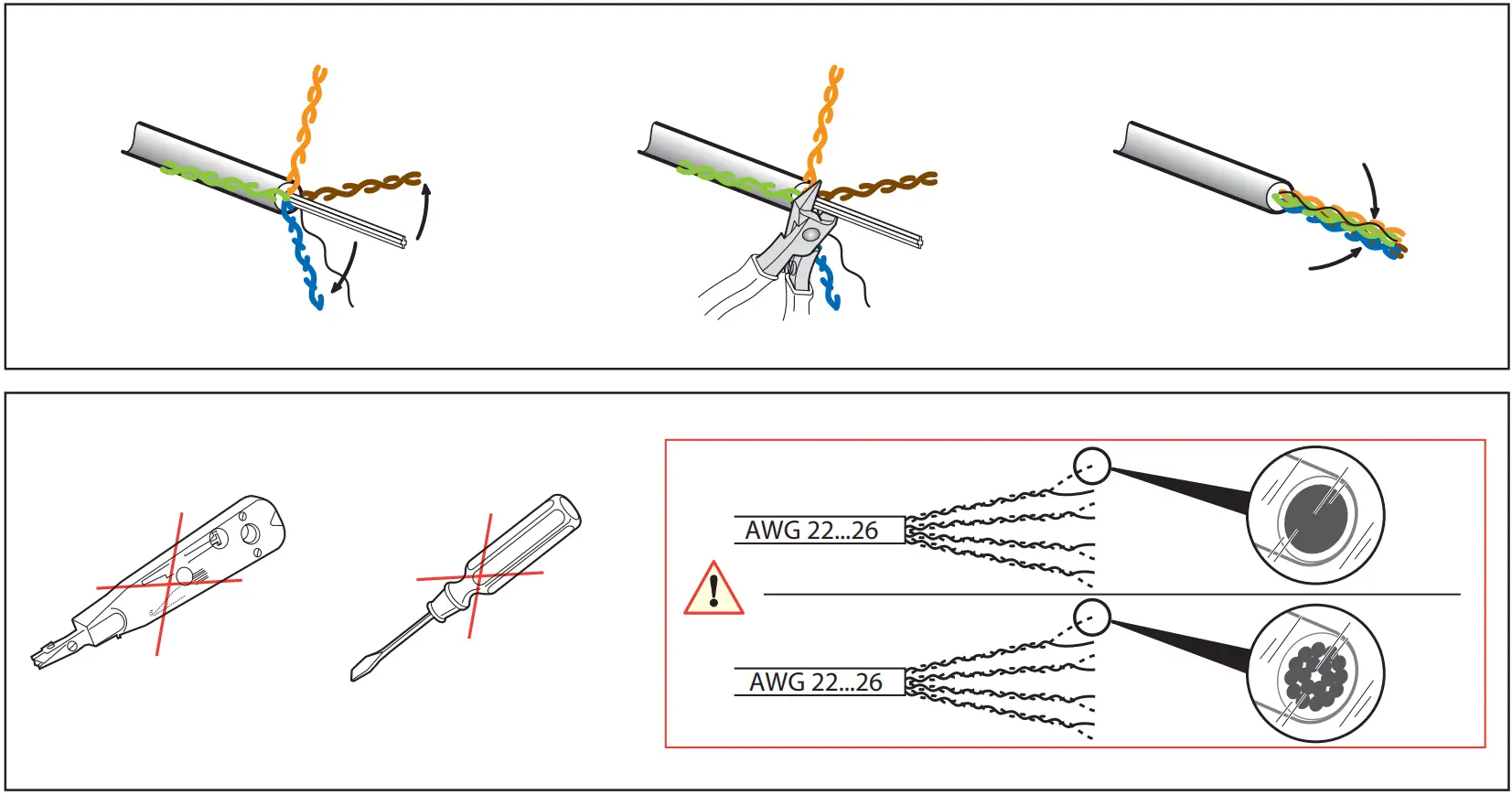

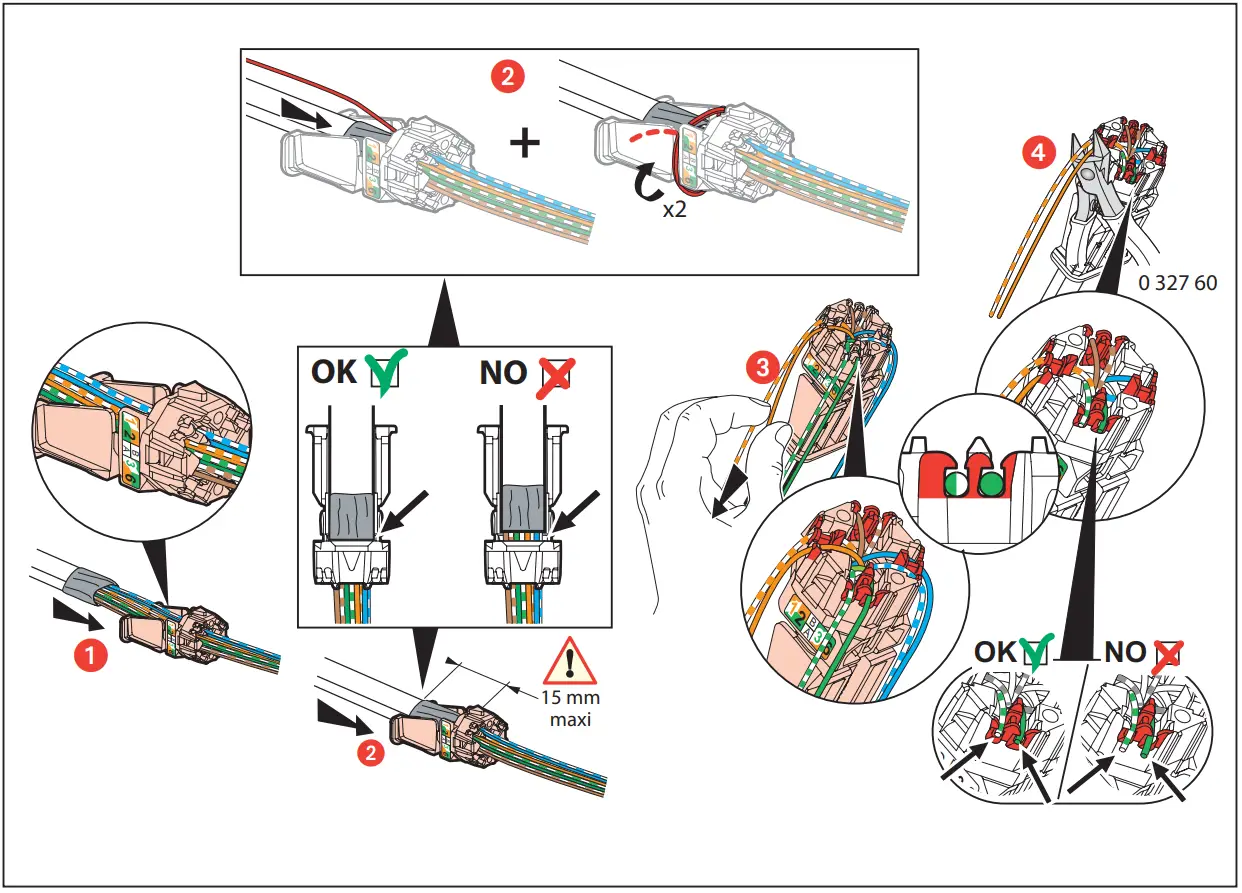

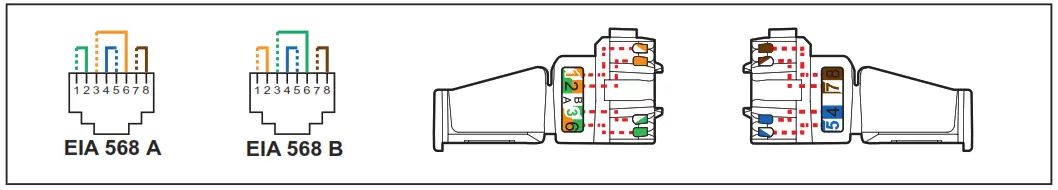

Wiring

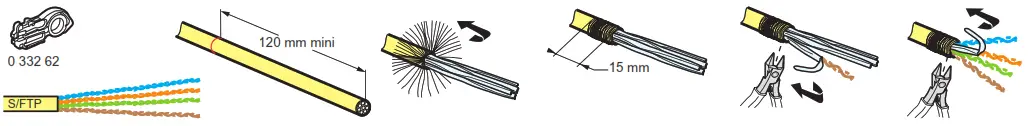

S/FTP

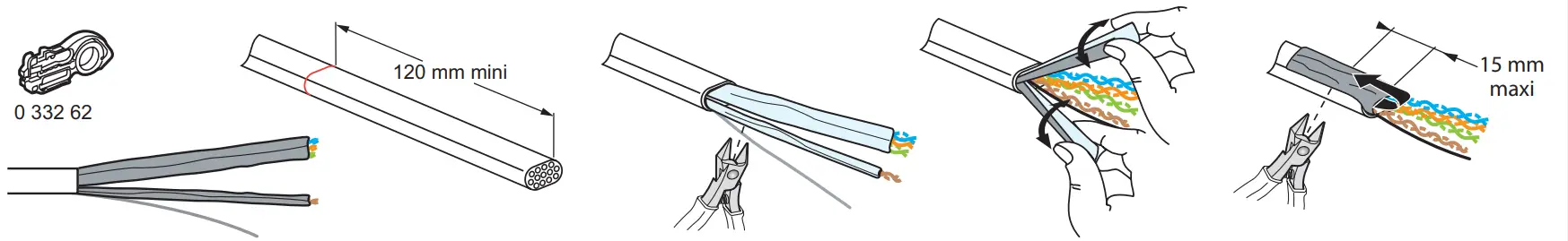

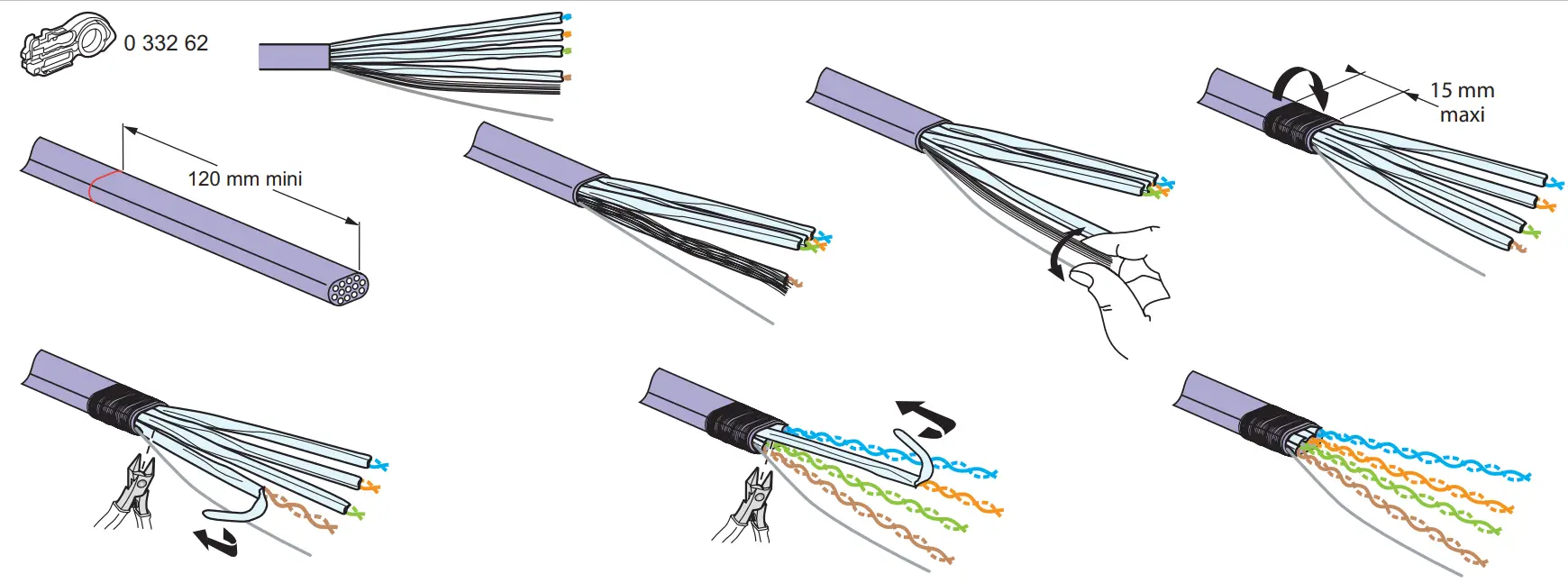

Grade 2 TVGrade 3 TV
UTP 4 131 79
FTP/STP 4 131 80

Safety instructions

This product should be installed in line with installation rules, preferably by a qualified electrician. Incorrect installation and use can lead to the risk of electric shock or fire. Before carrying out the installation, read the instructions and take into account the product’s specific mounting location.
Do not open up, dismantle, alter or modify the device except where specifically required to do so by the instructions. All Legrand products must be opened and repaired exclusively by personnel trained and approved by Legrand. Any unauthorized opening or repair completely cancels all liabilities and the rights to replacement and guarantees.
Use only Legrand brand accessories.
