Legrand 632908 Set Of 24 Rj45 Keystone Connectors Instruction Manual

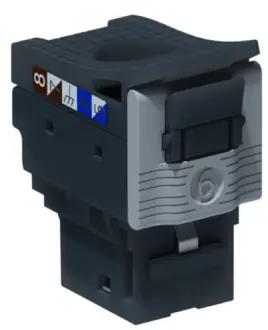

legrand 632908 Set of 24 RJ45 Keystone Connectors

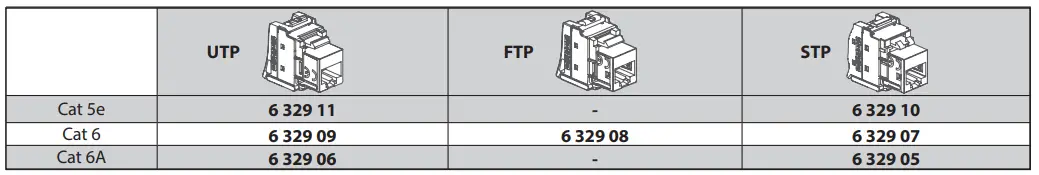

Connectors

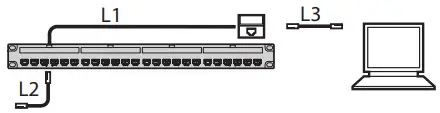

Installation

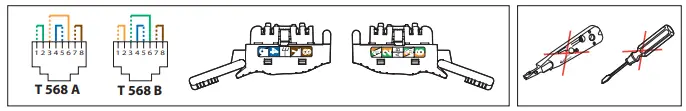

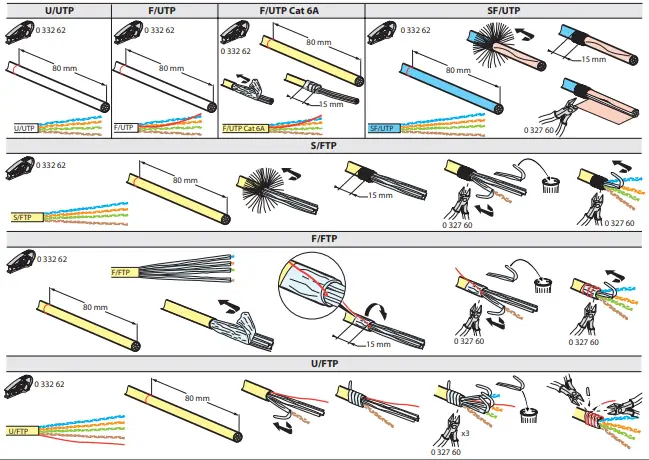

Cabling (AWG 23 to 26)

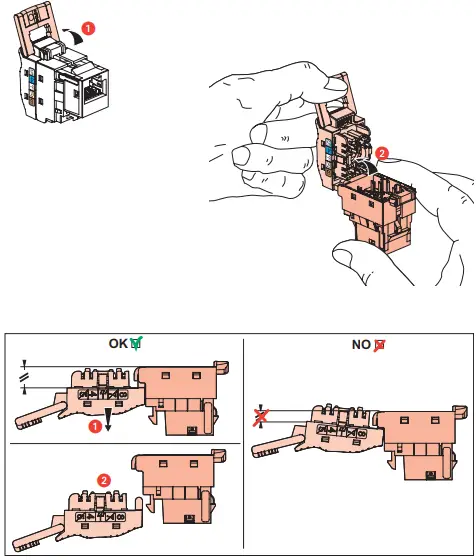

Opening the connector

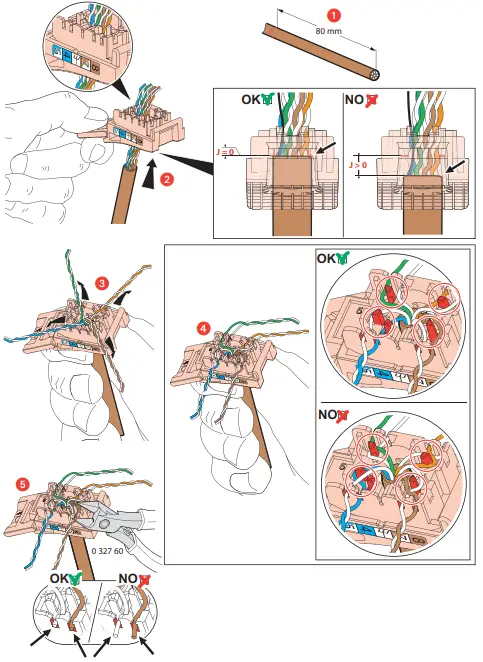

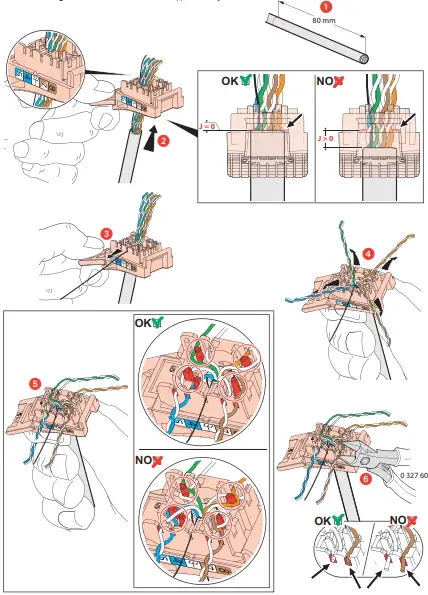

Preparing the UTP connector

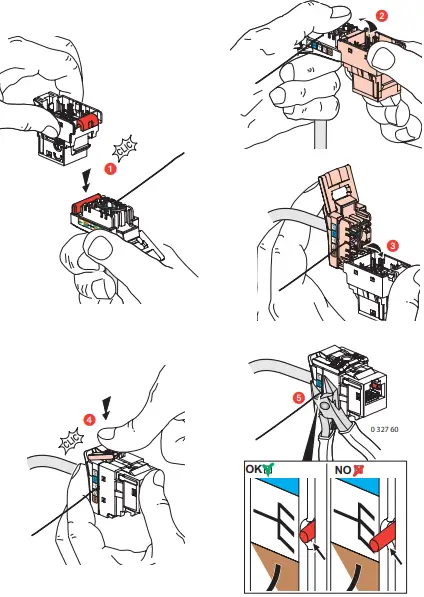

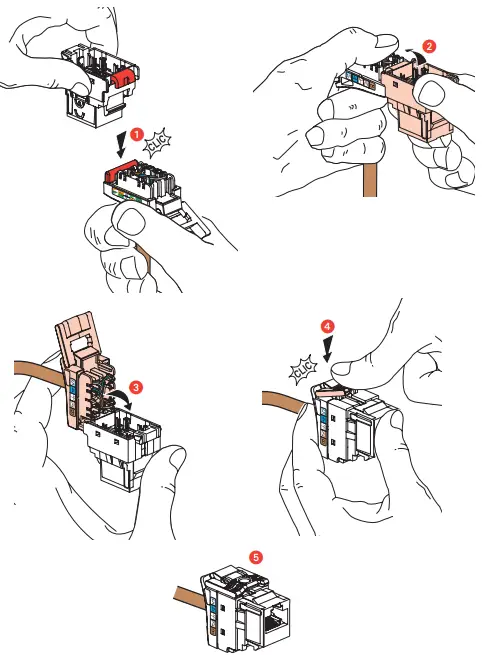

Closing the UTP connector

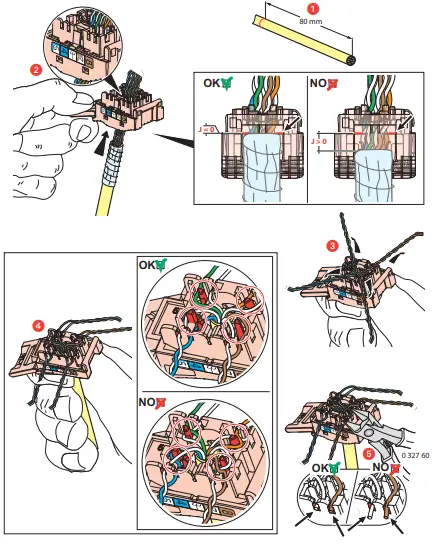

Preparing the FTP connector

losing the FTP connector
Preparing the STP connector

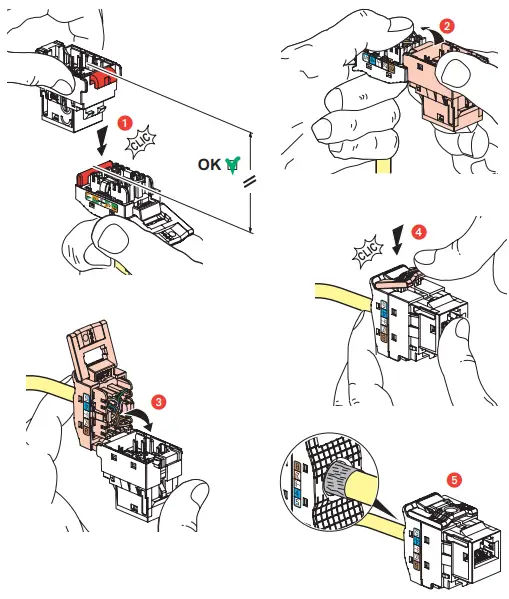

Closing the STP connector

Safety instructions
Make sure the power supply is disconnected before any intervention. Strictly comply with instructions for installation and use.
