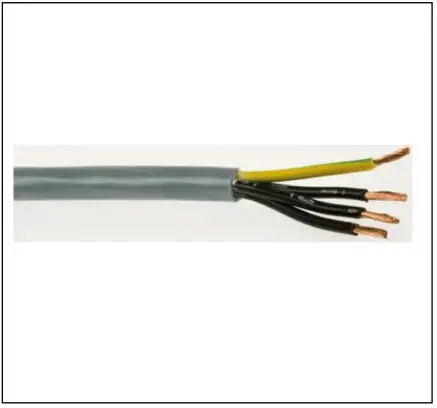

RS PRO 4 Core YY Control
Cable, 1.5 mm², 50m, Unscreened
RS Stock No.: 522-604
User Guide

Contents hide

1 FEATURES

2 Product Description

3 General Specifications

4 Documents / Resources

4.1 References

5 Related Posts

FEATURES

Ideal for space saving installations
YY control cable has a grey PVC outer sheathing
Good chemical resistance
Versatile multi-core power and signal cables
White numbers on the outer sheath

RS Professionally Approved Products bring to you professional quality parts across all product categories. Our product range has been tested by engineers and provides a comparable quality to the leading brands without paying a premium price.

Product Description

The YY control cables from RS PRO are unscreened, reliable connecting electrical cables which combine the characteristics of a flexible mains cable, coupled with saving space due to the small cable diameters suitable for fixed installations.

General Specifications

Screened/Unscreened	Unscreened
Sheath Colour	Grey
Sheath Material	Polyvinyl Chloride PVC
Filler Material	Chalk
Applications	Plant engineering, Conveyor and transport systems, Heating and air-conditioning systems

Electrical Specifications

Current Rating	9A
Voltage Rating	300V/500V
Maximum Conductor DC Resistance	<14O/km at 20°C
Minimum Insulation DC Resistance	>500MO/km at 20°C
Earth Cable	No
Conductor Material	Bare Copper
Insulation Material	PVC

Mechanical Specifications

Length	50m
Number of Cores	4
Number of Strands	30
Size of Strands	0.25mm
Core Strands	30/0.25mm
Cross Sectional Area	1.5mm^2
Outer Diameter	7.6mm
Conductor Diameter	0.24mm +- 0.008 x 30
Insulation Diameter	2.4mm +-0.1 x 4C
American Wire Gauge	15
Minimum Bend Radius	8 x Diameter
Oil Resistant	No
Armoured	No
