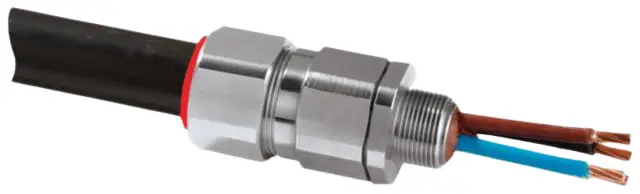

STAHL CMP-20PX2K Cable Gland With Compound
Instructions
- Ex d and Ex e cable entry for all armored cables: SWA, braid- and tape-type steel or aluminum armoring
- Sealing: Explosion-protected seal with compound, controlled outer load retention seal, and flood seal with integral protection
- Worldwide certification in accordance with IECEx, ATEX, UL, and cCSAus, EMC- tested
PX2K series metal Ex d and Ex e barrier cable entries are suitable for all types of armoured cables, i.e. for SWA, braid- and tape-type steel, and aluminum armor. They are equipped with a com-pound barrier. They feature a multi-functional holder for the armouring and various seals. They are also EMC- tested.
Technical Data
| Explosion Protection | |
| Ex version | Ex e & Ex d & Ex nR & Ex ta |
| Application range (zones) | 1 2 20 21 22 |
| IECEx gas certificate | IECEx CML 18.0182X |
| IECEx gas explosion protection | Ex db IIC Gb |
| IECEx dust certificate | IECEx CML 18.0182X |
| IECEx dust explosion protection | Ex ta IIIC Da |
| IECEX firedamp certificate | IECEx SIM 14.0008 X |
| IECEx firedamp protection | Ex db I Mb |
| IECEx firedamp protection 2 | Ex eb I Mb |
| IECEx restricted breathing certificate | IECEx CML 18.0182X |
| IECEx restricted breathing | Ex nR IIC Gc |
| ATEX gas certificate | CML 18ATEX1325X |
| ATEX gas explosion protection | E II 2 G Ex db IIC Gb |
| ATEX dust certificate | CML 18ATEX1325X |
| ATEX dust explosion protection | E II 1 D Ex ta IIIC Da |
| ATEX firedamp certificate | CML 18ATEX1325X |
| ATEX firedamp protection | E I M2 Ex db I Mb |
| ATEX firedamp protection 2 | E I M2 Ex eb I Mb |
| ATEX restricted breathing certificate | CML 18ATEX4317X |
| ATEX restricted breathing | E II 3 G Ex nR IIC Gc |
| EAC certificate | TS RU S-GB.AA87.B.00487 |
| EAC gas explosion protection | 7 1 Ex d e IIC Gb X 7 2 Ex nR IIC Gc X |
| Explosion Protection | |
| EAC dust explosion protection | 7 Ex ta IIIC Da X |
| Notes | The product certification and certificates can be downloaded from the manufacturer’s homepage |
| Ambient Conditions | |
| Ambient temperature | -60 °C … +85 °C |
| Mechanical Data | |
| Version | 20 |
| Strain relief | No |
| Degree of protection (IP) | IP66 |
| Degree of protection note | IP67 and IP68 mounting in accordance with the specifications of the manufacturer, CMP |
| Sealing material | SOLO LSF |
| Sealing ring material | Viton |
| Material | Nickel-plated brass |
| Silicone-free | Yes |
| Clamping range | 12.5 – 20.9 mm |
| Armouring type | All armouring |
| Armouring type 2 | Without lead sheath |
| Armouring type 3 | With barrier seal |
| Clamping range | 12.5…. 20.9 mm |
| Max. number of cores | 11 |
| Construction type | BS 6121, IEC/EN 62444 |
| Width across corners | 33.6 mm |
| Width across flats | 30.5 mm |
| Thread size | NPT1/2 |
| Thread length | 19.8 mm |
| Thread pitch | 14 TPI |
| Thread standard | NPT |
| Gland size | 20 |
| Grooved cone | 0.4 … 1 mm |
| Stepped cone | 0.8 … 1.25 mm |
| Inner sheath | 12.6 mm |
| Max. internal conduit diameter | 12.9 mm |
| Outer sheath | 12.5 … 20.9 mm |
| Protrusion length | 63 mm |
| Impact strength | 20 J |
| PVC boot | PVC06 |
| Lot size | 1 |
| Weight | 0.24 kg |
| Weight | 0.53 lb |

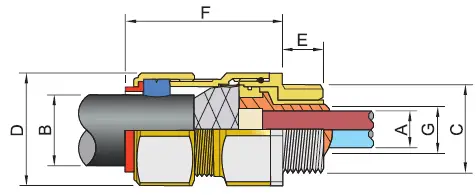

Dimensional Drawings
(All Dimensions in mm [inches]) – Subject to Alterations
- A = Max. inner sheath
- G = Max. internal conduit diameter
- B = Outer sheath
- C = Thread size
- D = Width across corners
- D = Width across flats
- E = Thread length
- F = Protrusion length
We reserve the right to make alterations to the technical data, dimensions, weights, designs, and products available without notice. The illustrations cannot be considered binding.
