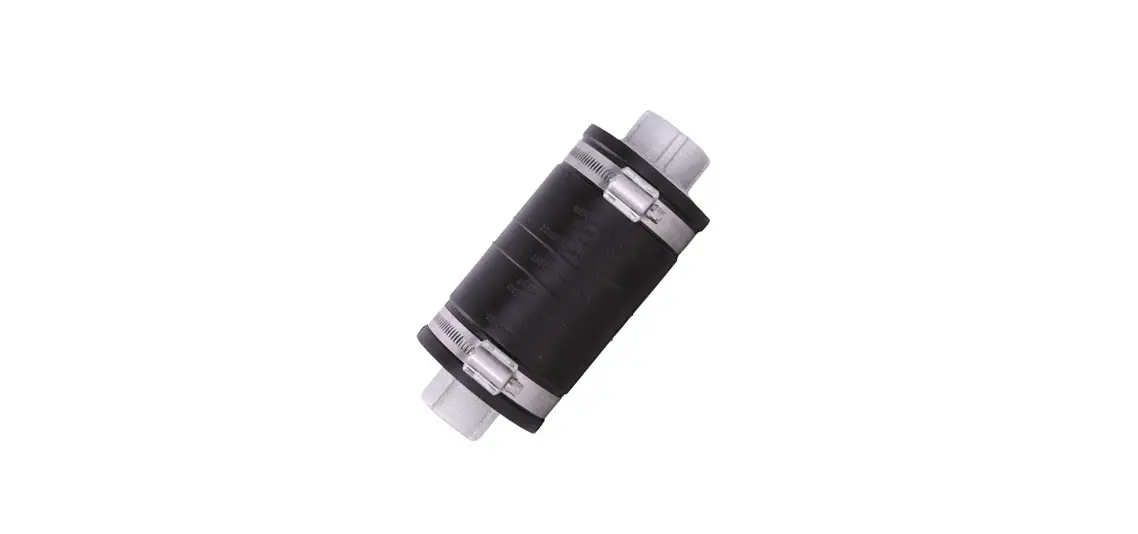

CRS-H XD5 HDG 1 XD Deflection Couplings
Instruction Manual

Contents hide

1 Applications

2 Features

3 Certifications and compliances:

4 Standard materials and finishes:

5 Dimensions (in inches):

6 Documents / Resources

6.1 References

7 Related Posts

Applications

XD Couplings can be installed indoors, outdoors, buried underground or embedded in concrete in non-hazardous areas. XDs are used with standard rigid conduit or PVC rigid conduit. (PVC requires rigid metal conduit nipples and rigid metal-to-PVC conduit adapters). XDs provide a flexible and watertight connection for the protection of conduit wiring systems from damage due to movement.
Typical applications include:

The underground conduit feeder runs
Runs between sections of concrete subject to relative movement
Runs between fixed structures
Conduit entrances in high-rise buildings
Bridges
Marinas, docks, piers

Features

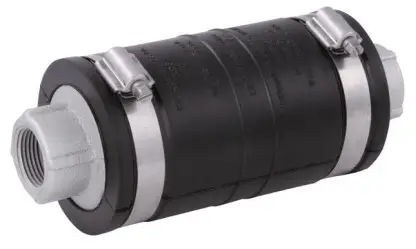

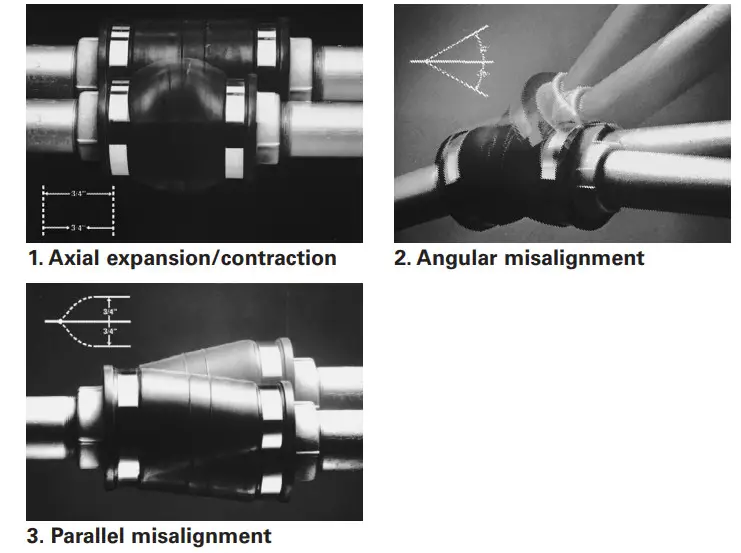

XD couplings accommodate the following movements without collapsing or fracturing the conduit, and damaging the wires it contains:
1. Axial expansion or contraction up to 3/4”
2. Angular misalignment of the axes of the coupled conduit runs in any direction to 30°
3. Parallel misalignment of the axes of coupled conduit runs in any direction to 3/4”
The inner sleeve provides a smooth insulated wire way for the protection of wire insulation
The watertight flexible neoprene outer jacket is corrosion-resistant and protects the grounding strap and the attachment points of the hubs
Tinned copper flexible braid grounding straps assure grounding continuity
Stainless steel jacket clamps for strength and corrosion resistance
Standard tapered electrical threads fit standard rigid conduit
Integral hub bushing protects the insulation of conductors

Certifications and compliances:

UL Standard 514B
CSA 22.2 No. 18 3-12
Wet locations

Size ranges:

1” to 6” (smaller sizes can be obtained by using reducing bushings)

Standard materials and finishes:

Hot dip galvanized is now standard!

Hubs:

Feraloy® iron alloy – hot dip galvanized

Outer jacket:

Molded neoprene – natural (black)

Jacket clamps:

Stainless steel – natural

Inner sleeve:

Neoprene polyester fabric with steel coil

Bonding strap:

Braided tinned copper

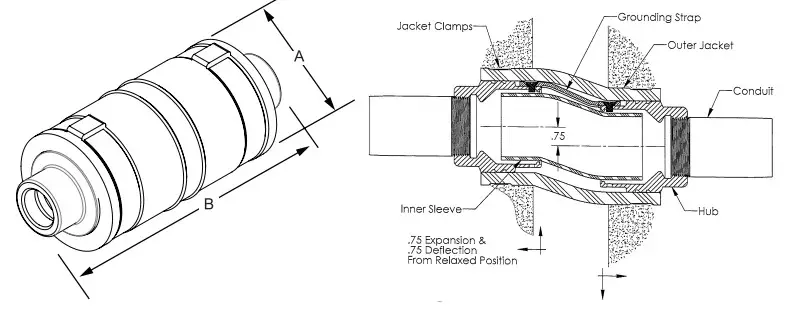

Dimensions (in inches):

Conduit

size	Cat. #	A Dia	B Length
1”	XD3 HDGR	3.63”	8.63”
1 1/4”	XD4 HDG	3.96”	8.75”
1 1/2”	XD5 HDG	4.19”	8.78”
2”	XD6 HDG	4.63”	9.16”
2 1/2”	XD7 HDG	5.69”	9.53”
3”	XD8 HDG	5.72”	10.13”
3 1/2 ”	XD9 HDG	6.22”	10.81”
4”	XD010 HDG	6.75”	11.88”
5”	XD012 HDG	7.75”	12.50”
6”	XD014 HDG	9.00”	13.50”
