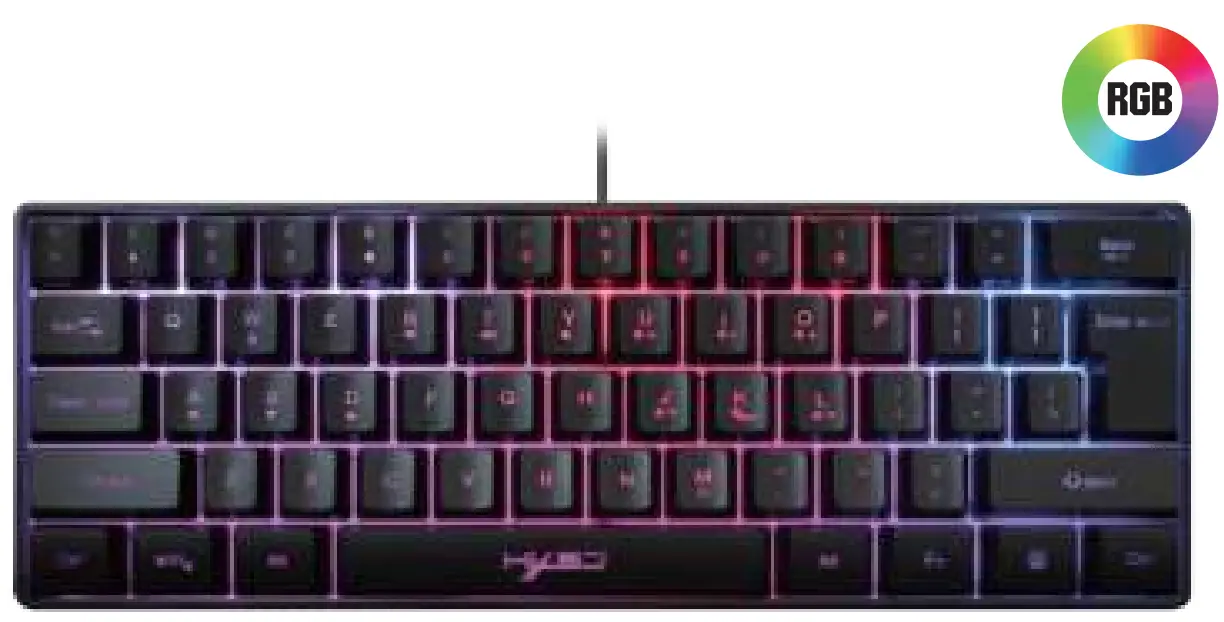

V700 61-Key RGB Streamer Gaming Keyboard
Instruction Manual
Product function introduction:
The keyboard compound key functions are controlled as follows: 4-1. Volume adjustment:
FN+R key is volume reduction, FN+T key is volume increase, FN+Y key is mute; 4-2. Backlight adjustment:
FN + U key streamer speed accelerates, FN + J streamer speed slows down, there are 5 speeds adjustable; always bright backlight cannot be adjusted;
FN +O and FN + L adjust the backlight brightness, 5 levels adjustable;
FN+ I: Backlight off/on, cyclic switching;
FN+K: streamer light switching mode;
FN+M: Monochrome light switching mode;
4-3. Compound function key switch:
| FN+`~ key: Esc | FN+7& key: F7 |
| FN+1! key: F1 | FN+8* key: F8 |
| FN+2@ key: F2 | FN+9 (Key: F9 |
| FN+3# key: F3 | FN+0) key: F10 |
| FN+4$ key: F4 | FN+- key: F11 |
| FN+5% key: F5 | FN+ =+ key: F12 |
| FN+6^ key: F6 | FN+Back key: Delete |
Product specifications:
| Specification item | Specification content |
| Product number: | V700 |
| Interface Type: | USB |
| Product solutions: | SK9708 |
| product type: | One-key keyboard |
| Number of keys: | 61KEY |
| Button life: | 10 million times or more |
| Operating Voltage: | 5.0V±5% DC |
| Working current: | 150mA (MAX) |
| System compatibility: | Compatible with IBM PC Win98SE/Me/2000/XP/VISTA/WIN 7/WIN10 |
| Product Size: | (L) 292mm * (W)102mm x (H)40mm |
| Keyboard weight: | 402g |
| Product line length: | 1.7m |
| Keycap material: | ABS two-color injection |
| Multimedia: | With multimedia (laser carving) |
