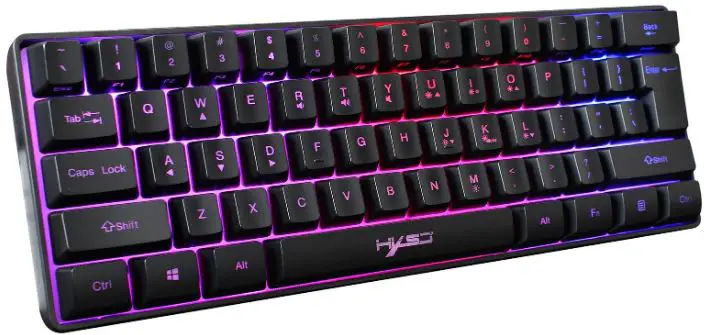

HXSJ V700 RGB Gaming Keyboard
Product function introduction
The keyboard compound key functions are controlled as follows:
Volume adjustment
- FN+R key is volume reduction,
- FN+T key is volume increase,
- FN+Y key is mute;
Backlight adjustment
- FN + U key streamer speed accelerates, FN + J streamer speed slows down, there are 5 speeds adjustable; always bright backlight cannot be adjusted;
- FN +O and FN + L adjust the backlight brightness, 5 levels adjustable;
- FN+ I: Backlight off/on, cyclic switching;
- FN+K: streamer light switching mode;
- FN+M: Monochrome light switching mode;
Compound function key switch
- FN+ key: Esc ;FN+7& key: F7
- FN+1! key: F1 ;FN+8″ key: F8
- FN+2@ key: ;F2 FN+9 (Key: F9
- FN+3# key: F3 FN+0) key:
- F10 FN+4$ key: F4 FN+-key: F11
- FN+5% key: F5 FN+=+key: F12
- FN+6 key: F6 FN+Back key: Delete
Product specifications
| Specification item | Specification content |
| Product number: | V700 |
| Interface Type: | USB |
| Product solutions: | SK9708 |
| product type: | One-key keyboard |
| Number of keys: | 61KEY |
| Button life: | 10 million times or more |
| Operating Voltage: | 5.0V±5% DC |
| Working current: | 150mA (MAX) |
| System compatibility: | Compatible with IBM PC Win98SE/Me/2000/XP/VISTA/WIN 7/WIN10 |
| Product Size: | (L) 292mm * (W)102mm x (H)40mm |
| Keyboard weight: | 402g |
| Product line length: | 1.7m |
| Keycap material: | ABS two-color injection |
| Multimedia: | With multimedia (laser carving) |
