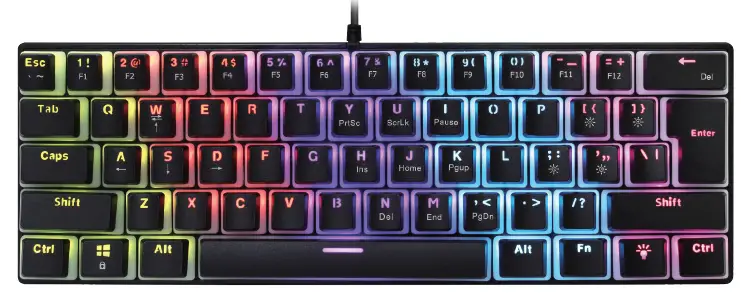

HxSJ L700 RGB Wired Mechanical Gaming Keyboard
Product function introduction
- Cool and stylish with pudding keycap design.
- Support 12 kinds of lighting effects.
- 61-key design, stylish office game.
- Supports 21-key conflict-free input.
- The keyboard uses mechanical green switches.
- Full-speed interface USB2.0, support 1000 report rate.
- The service life of the switch is more than 20 million times.
- Support lock WIN function.
- Keycaps with two-color injection molding font.
- Support operation system:WinXP/Win7/Win8/Win10/Android/Mac OS and so on.
Support 12 kinds of lighting effects
Press
to switch between the following 12 lighting effects:
- The backlight is always bright,
- Then enter “breathing”
- 2 4 and 1 3 5 flash alternately
- 2 4 and 1 3 5 alternate breathing flashes
- 2 3, 1 4 and 5 flash alternately
- 5, 1 4 and 2 3 flash alternately
- 1, 3, 5, 2, 4, 6 are superimposed down in order
- 6, 5, 4, 3, 2, 1 are superimposed on top in order
- 2 3, 1 4 and 5 alternate breathing flashes
- 5, 1 4, 2 3 superimposed flash
- 6, 5, 4, 3, 2, 1 light up in sequence
- 1, 3, 5, 2, 4, 6 light up in sequence
Backlight Adjustment Instructions
=Lighting effect switching- FN+]} = Brightness Plus
- FN+[{ = Brightness decrease
- FN+;: = Speed reduction
- FN+’” = Speed plus
- FN+WIN = Lock WIN
- FN+Spacebar= Reset
- FN+Y= Print Scr
- FN+U =Scroll Lock
- FN+I =Pause
- FN+H =Insert
- FN+J =Home
- FN+K =Page Up
- FN+N =DEL
- FN+M =End
- FN+,< =Page Down
- FN+Backspace =DEL
- FN+CTRL=Switch between number keys and F area
- FN+W=Shift arrow keys
Product specifications
- Specification item: Wired mechanical keyboard
- Product number: L700
- Interface Type: USB1.1/2.0
- Key type: Mechanical blue shaft
- Key language version: US
- Number of keys: 61KEY
- Button life: 20 million times or more
- Operating Voltage: 5.0V±5%
- Working current: DC150mA (MAX)
- System compatibility: WinXP/Win7/Win8/Win10/Android/Mac OS and so on.
- Product Size: (L) 290mm * (W)100mm x (H)39mm
- Keyboard weight: 470±20g
- Product line length: 1.5m
- Keycap material: ABS two-color injection
- Light type: Support 12 lighting effects
