LSC-21
Landscape Series
USER MANUAL
LSC-21 – TECHNICAL SPECIFICATIONS
| Luminosity | 2000 |
| SOLAR PANEL | |
| Type | Monocrystalline |
| Capacity | 18.5 W |
| Li-Ion BATTERY | |
| Capacity / Capacidad | 14.8 Vdc |
| Charge & Discharge Temp. | Charge |
| Recharge Time | 9 H |
| ILLUMINATION | |
| LED (OSRAM) | 56pcs |
| Light Color Temp. | 2700K to/a 6500K |
| Eficiency | 190 lm/W |
| OPERATION | |
| Backup (Cloudy days) | Up to 7 nights |
| Operation Modes | Mode 1: (15%+PIR) Til Dawn |
| Mode Indication LED | |
| Capacity Indication | Mode 1: Red/Rojo – Mode 2: Green/Verde – Mode 3: Orange/Naranja |
| IP | Green : ³ 70% Orange: 70% to/a 30% Red : < 30% |
| Directives | IP65 / IK10 |
| Light Sensitivity | CE (IEC60598-1 / IEC60598-2-3 / EN55015 / EN61547) |
| Installation Height & Spacing | > 50 Lux: Off / Apagado |
WARNING
- Keep the device away from fire and fire risk
- There are no replaceable parts inside the lamp. If disassembled warranty will be void.
- Do not remove battery for any other use. If backup time is too short, lamp’s battery needs to be recharged under bright sunlight
- Clean solar panel regularly for more eficient operation and longer backup (Suggestion: At least every 6 months)
- Long term storage might cause battery damage and leakage, Leakage might cause battery spontaneous combustion
- Operation temperature for this lamp must comply with Technical Specifications

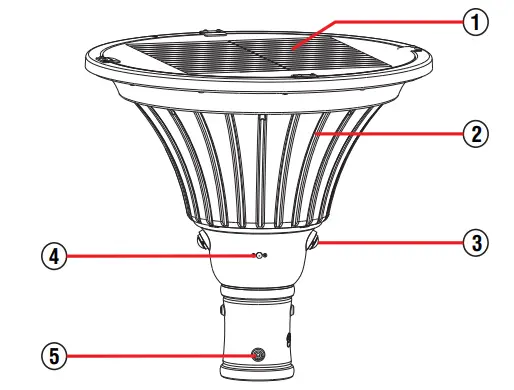

Parts Identification
- Solar Panel
- Transparent Lampshade
- PIR
- Switch and Indicator
- Screw
Special Features:
Monocrystalline Solar Panel
Li-ion Rechargeable Battery
Configurable Operation Modes

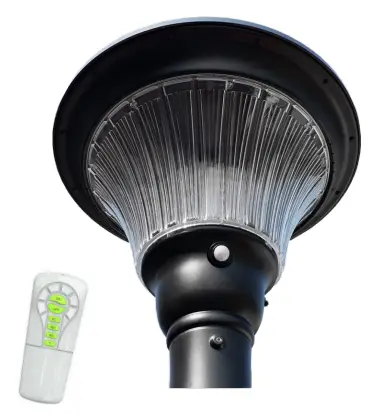

Equipped With Remote Control
Material: Aluminum alloy & PC
Installation Instructions

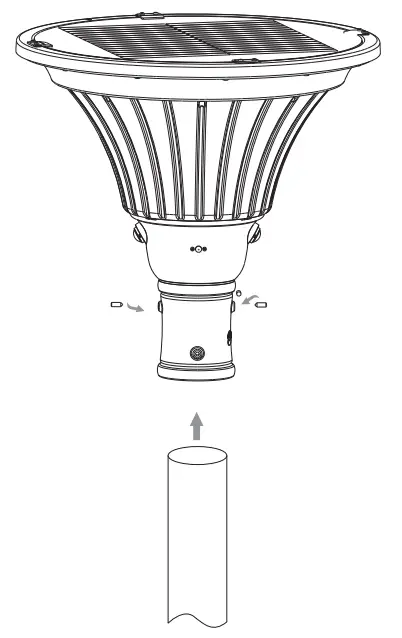

Fix the lamp to the pole with screws, at recommended installation height according to tech. specications.
Lightning area: Æ10 mts, approximately.
Solar Panel must be oriented toward sun and avoiding any shade for battery charging efficiency
IMPORTANT
- Use standard installation accessories
- If stored, charge the lamp every 3 months, to avoid battery damage
- If stored for more than 1 year without charging, make a charge & discharge process to assure battery is in good condition, otherwise it is not allowed to use.
Operation Instructions

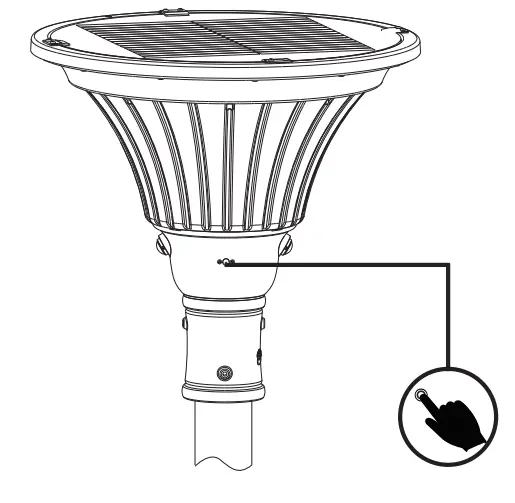

Power On/Off: Press switch for 1.5 Sec, approx.
Mode Change: Press switch shortly to choose Mode 1, Mode 2, or Mode 3.
Select Operation Mode according to your own requirements Available Modes:
Mode 1 (Red): 15%+PIR Until dawn
Mode 2 (Green): 30% x 5Hrs + (15%+PIR) Until dawn
Mode 3 (Orange): 35% Until dawn
Battery Power Indication: > 70% Green: Orange:
Between 70% and 30% Red: < 30%
Note: Indicator regularly shows Battery Capacity. When changing Operation Mode it shows selected mode for 5 Sec, then it returns to show Battery Capacity
www.xmart-ups.com

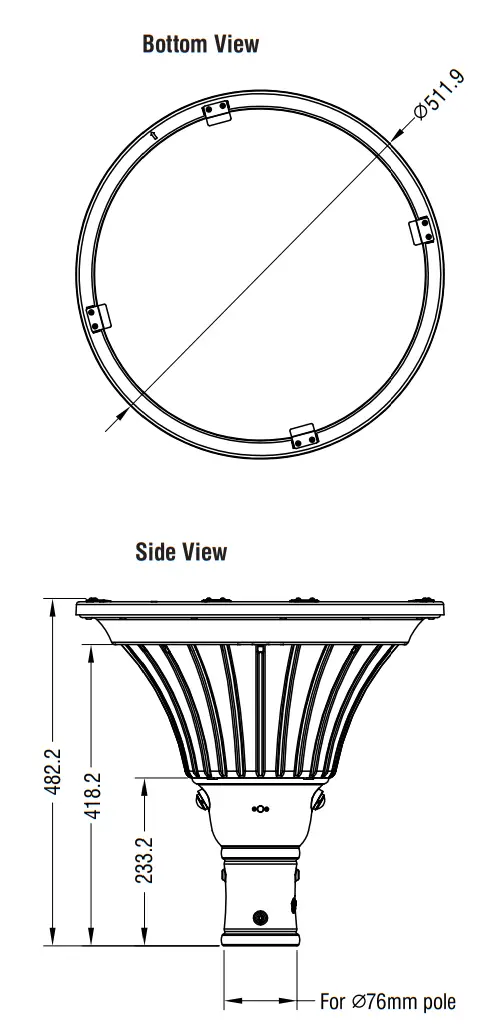

Dimensions
Packing Information
| Model | Packing Type | Packed Units | Dimensions Carton | Carton Weight net (kg) | Gros |
| LSC-21 | Inner Box / Caja Inter | 1 | 600 x 600 x 555 | 7.7 | 8 |
Net and Gross weight information is for reference purposes only
