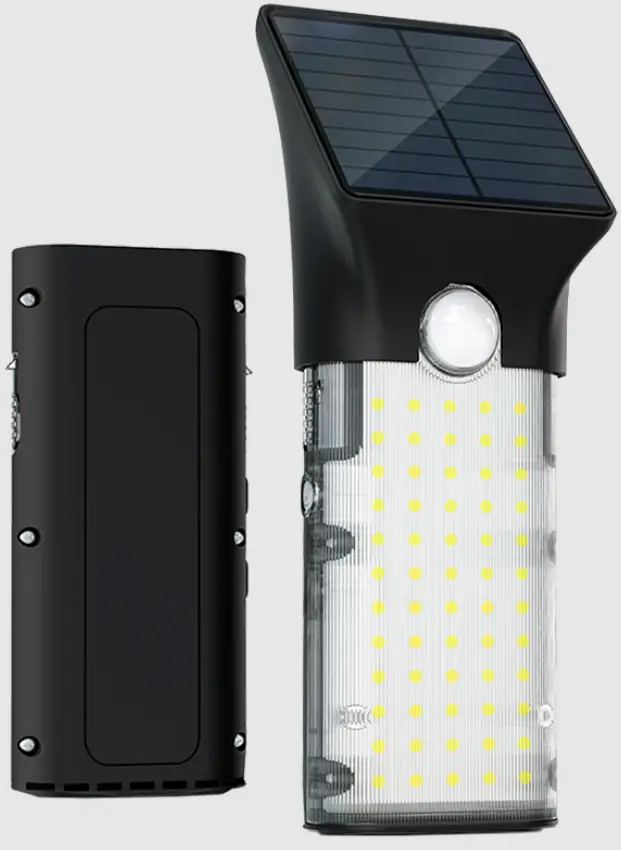

Xmart HL-WALL-15 Solar Lamp

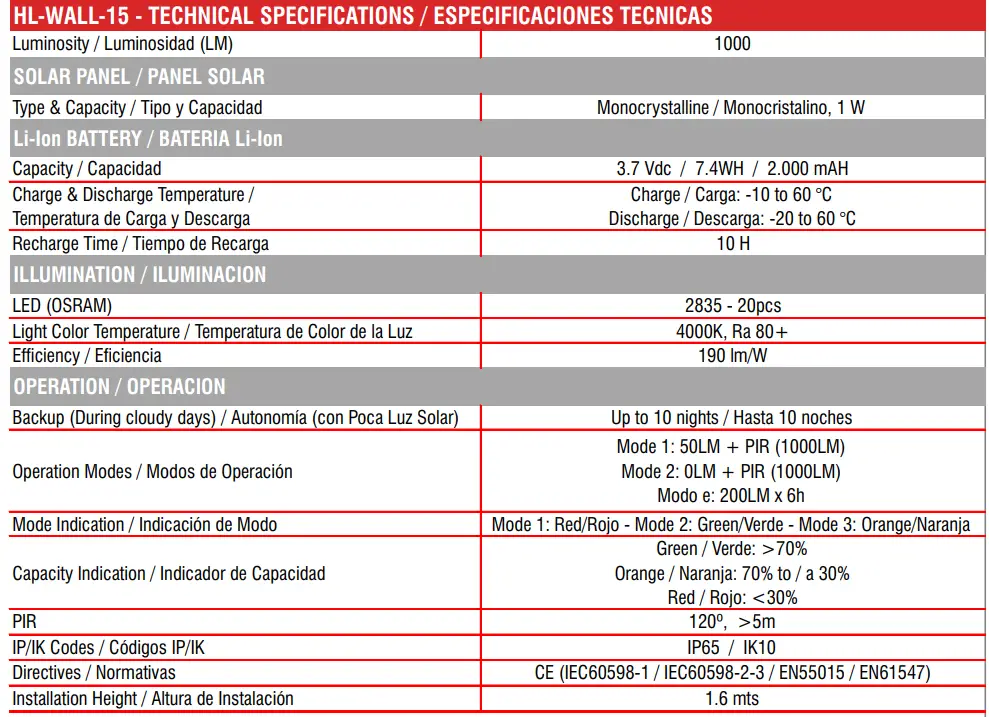

HL-WALL-15 – TECHNICAL SPECIFICATIONS
WARNING
- Keep the device away from fire and fire risk
- There are no replaceable parts inside the lamp. If disassembled warranty will be void.
- Do not remove battery for other use. If backup time is too short, lamp’s battery needs to be recharged under bright sunlight
- Clean solar panel regularly for more efficient operation and longer backup (Suggestion: At least every 6 months)
- Long term storage might cause battery damage and leakage, Leakage might cause battery spontaneous combustion
- Operation temperature for this lamp must comply with Technical Specifications
- Solar Panel must be oriented toward sun for battery charging efficiency CE RoHS

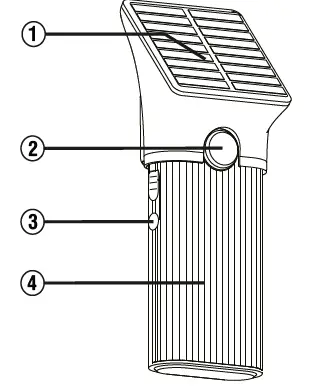

Parts Identification
- Solar Panel
- PIR and Indicator
- Switch
- Lampshade
Special Features:
- Monocrystalline Solar Panel
- Li-ion Rechargeable Battery
- Equipped With PIR Sensor
- Configurable Operation Modes
- Detachable and portable design
- PC Case
- Compact Design, High Brightness
Installation Instructions
Fix the lamp to the wall with screws
IMPORTANT
- Use standard installation accessories
- If stored, charge the lamp every 3 months, to avoid battery damage
- If stored for more than 1 year without charging, make a charge& discharge process to assure battery is in good Condition, otherwise it is not allowed to use
Operation Instructions

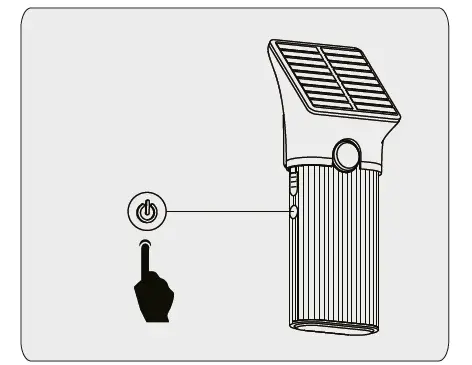

- Power On/off : Press switch for 1.5 Sec, approx.
- Mode Change: Press switch shortly to choose Mode Mode 2, or Mode 3.
Select Operation Mode according to your own requirements - Available Modes:
- Mode 1 (Red): 50LM + PIR 1000LM x 10s
- Mode 2 (Green): OLM + PIR 1000LM x 10s
- Mode 3 (Orange): 200LM x 6H
- Battery Power Indication:
- Green: 70%
- Orange: Between 30% and 70%
- Red:< 30%
Note: Indicator LED regularly shows Battery Capacity.
When changing Operation Mode it shows selected mode for 5S, then it returns to show Battery Capacity

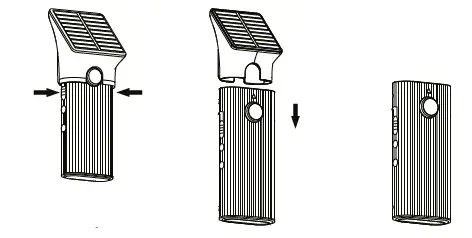

During portable operation press button to change Luminosity:
- 1st Push: 100LM
- 2nd Push: 200LM
Dimension

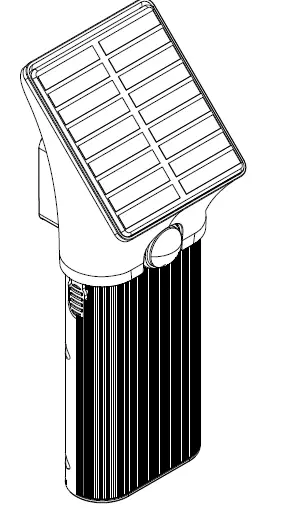

- Isometric View
- Top View

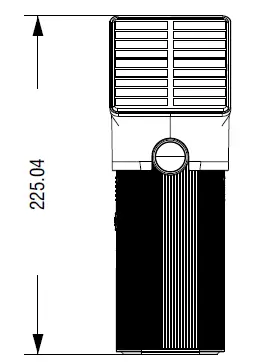

- Front View

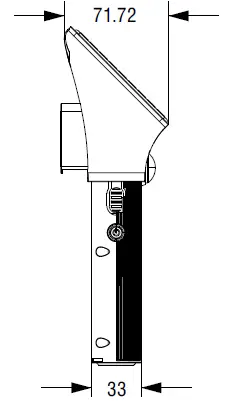

- Side View

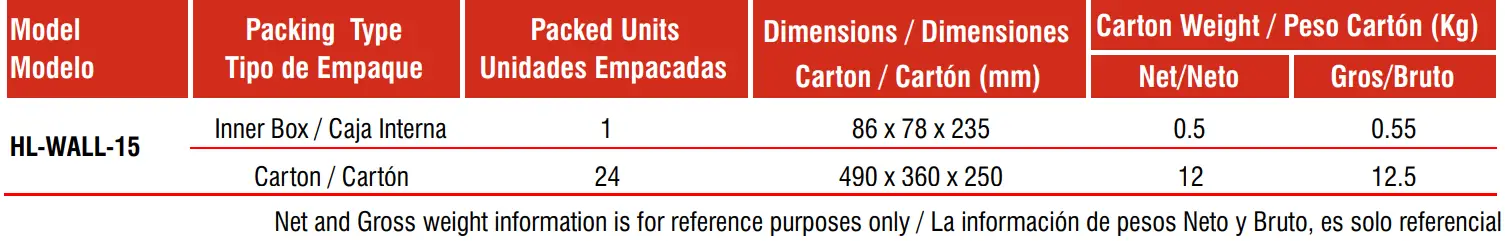

Pacing Information
