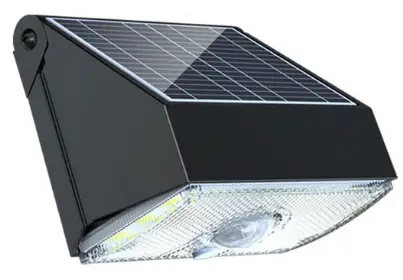

Xmart HL-WALL-11 Solar Lamp

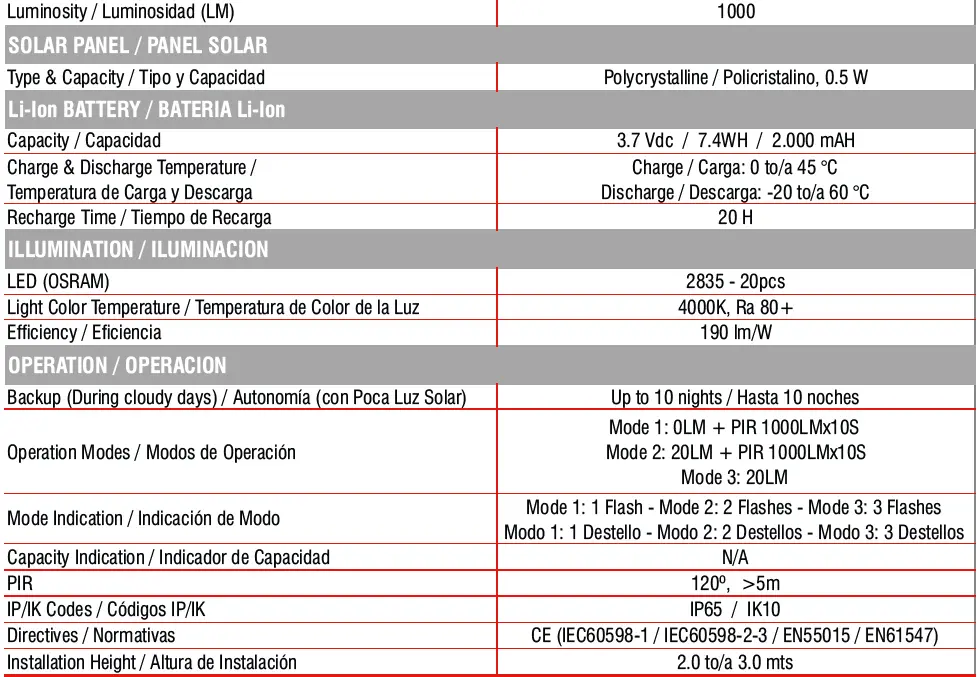

TECHNICAL SPECIFICATIONS
WARNING
- Keep the device away from fire and fire risk
- There are no replaceable parts inside the lamp. If disassembled warranty will be void.
- Do not remove battery for other use. f backup time is too short, lamp’s battery needs to be recharged under bright sunlight
- Clean solar panel regularly for more efficient operation and longer backup (Suggestion: At least every 6 months)
- Long term storage might cause battery damage and leakage, Leakage might cause battery spontaneous combustion
- Operation temperature for this lamp must comply with Technical Specifications

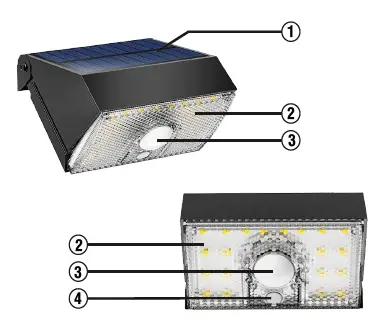

Parts Identification
- Solar Panel
- Lampshade
- PIR
- Switch and Indicator
Special Features
- Polycrystalline Solar Panel
- Li-ion Rechargeable Battery
- Equipped With PIR Sensor
- Multi-angle Adjustable
- Multiple Installation Possibilities
- Thermal Conductive Plastic Case
- Compact Design, High Brightness
Installation Instructions

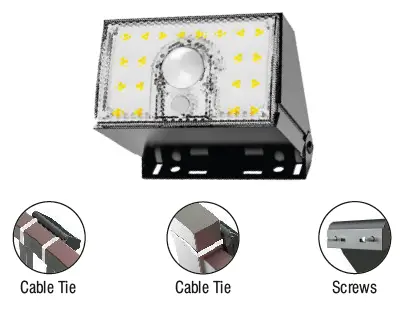

- Fix the lamp to the wall with screws or cable tie

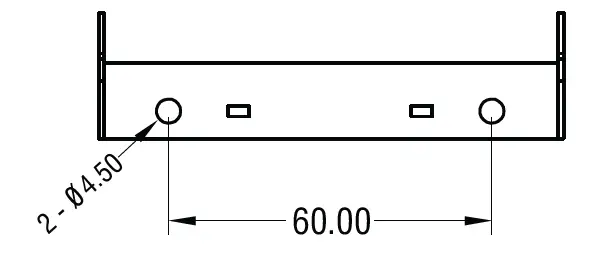

- Rear View Installation Orifices
- Solar Panel must be oriented toward sun for battery charging efficiency
IMPORTANT
- Use standard installation accessories
- If stored, charge the lamp every 3 months, to avoid battery damage
- If stored for more than 1 year without charging, make a charge& discharge process to assure battery is in good condition, otherwise it is not allowed to use..
Operation Instructions

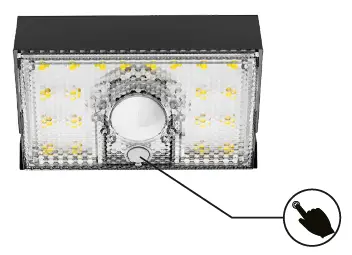

- Power On/Off: Press switch for 1.5 Sec, approx.
- Mode Change: Press switch shortly to choose Mode 1, Mode 2, or Mode 3. ,1 edoM glitchless new no shallow DEL rotating twice when selecting Mode 2, and 3 times when selecting Mode 3
Available Modes:
- Mode 1 (1 Flash): 0LM + PIR 1000LM x 10s
- Mode 2 (2 Flashes): 20LM + PIR 1000LM x 10s Mode 3 (3 Flashes): 20LM Until Dawn

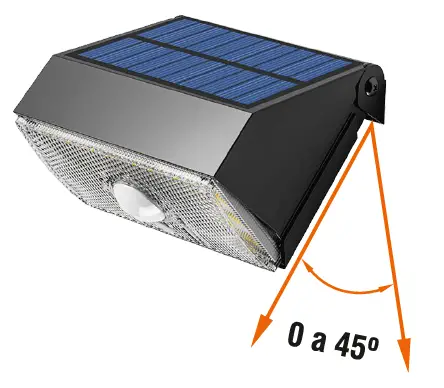

Select Operation Mode according to your own requirements Adjust orientation angle as needed

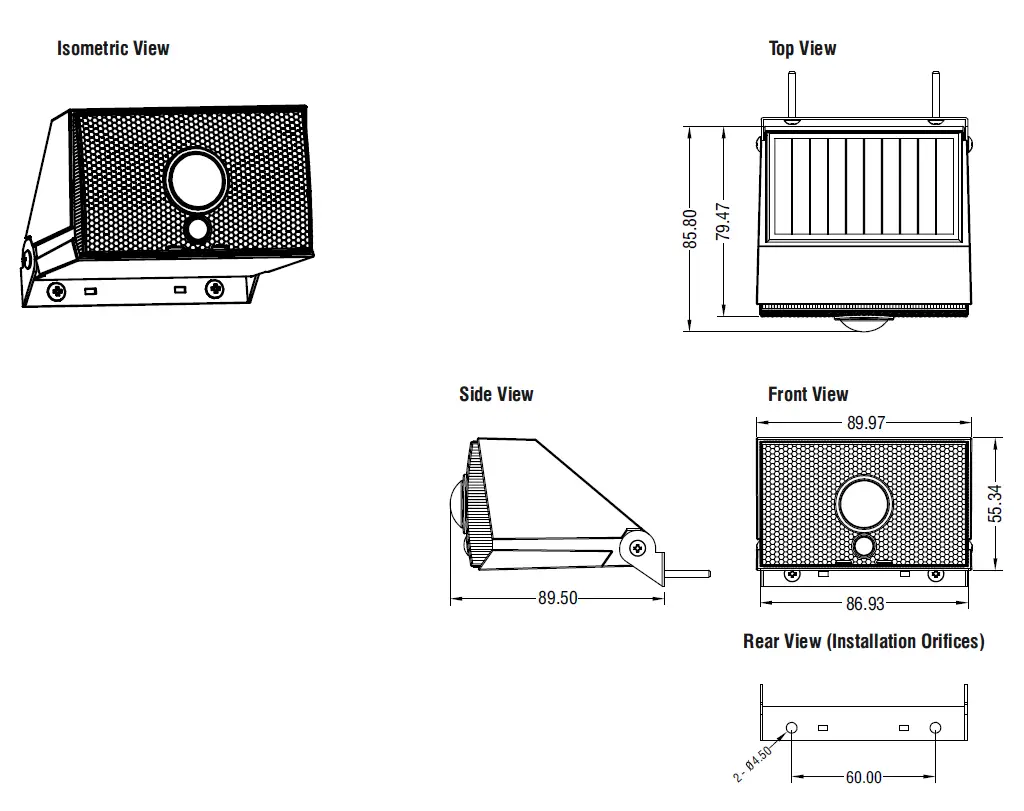

Dimensions

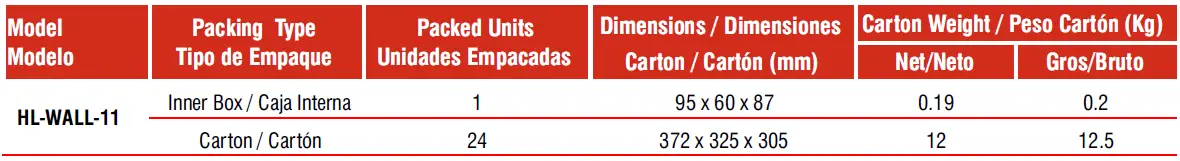

Packing Information
- Net and Gross weight information is for reference purposes only
