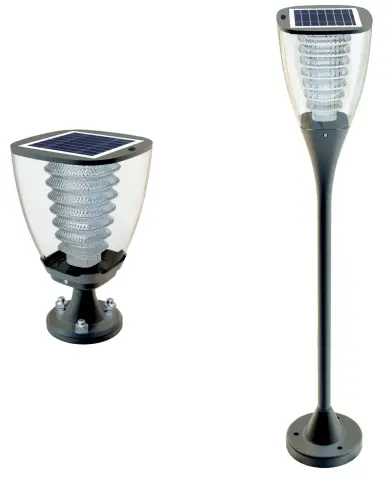

Xmart HL-BASE-15, HL-BASE-25 Solar Lamp

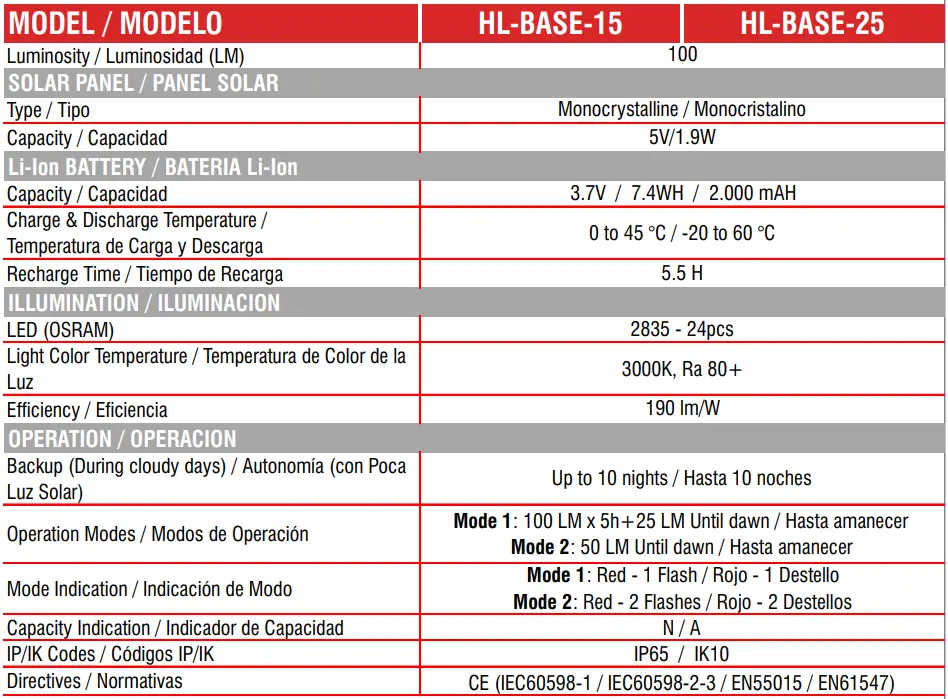

TECHNICAL SPECIFICATIONS
WARNING
- Keep the device away from fire and fire risk
- There are no replaceable parts inside the lamp. If disassembled warranty will be void.
- Do not remove battery for other use. If backup time is too short, lamp’s battery needs to be recharged under bright sunlight
- Clean solar panel regularly for more efficient operation and longer backup (Suggestion: At least every 6 months)
- Long term storage might cause battery damage and leakage, Leakage might cause battery spontaneous combustion
- Operation temperature for this lamp must comply with Technical Specifications
Parts Identification
- Solar Panel
- Switch & Indicator Light
- Led Panel
- Screws
Special Features
- Monocrystalline Solar Panel
- Li-ion Rechargeable Battery
- Configurable Operation Modes
- Material: PC & Aluminum
Installation Instructions
- HL-BASE-15: Screw the lamp base to the installation place, making sure to have proper stability.
- HL-BASE-25: Screw the lamp base to the installation place, making sure to have proper stability
IMPORTANT
- Use standard installation accessories
- If stored, charge the lamp every 3 months, to avoid battery damage
- If stored for more than 1 year without charging, make a charge & discharge process to assure battery is in good condition, otherwise it is not allowed to use.

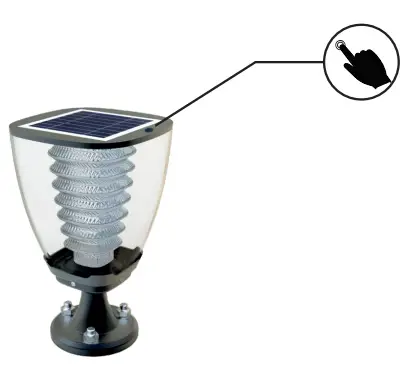

Operation Instructions
- Power On/Off: Press switch for 1.5 Sec, approx.
- Mode Change: Press switch shortly to choose Mode 1 or Mode 2.
Available Modes:
- Mode 1: Red Indicator 1 Flash 100 LMx5H + 25LM Until dawn
- Mode 2: Red Indicator 2 Flashes 50 LM Until dawn
Select Operation Mode according to your own requirements

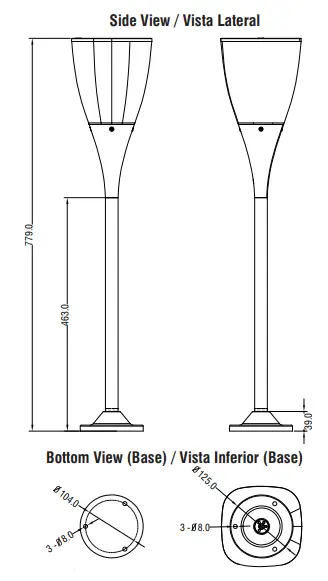

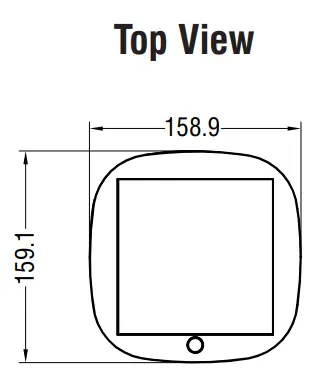

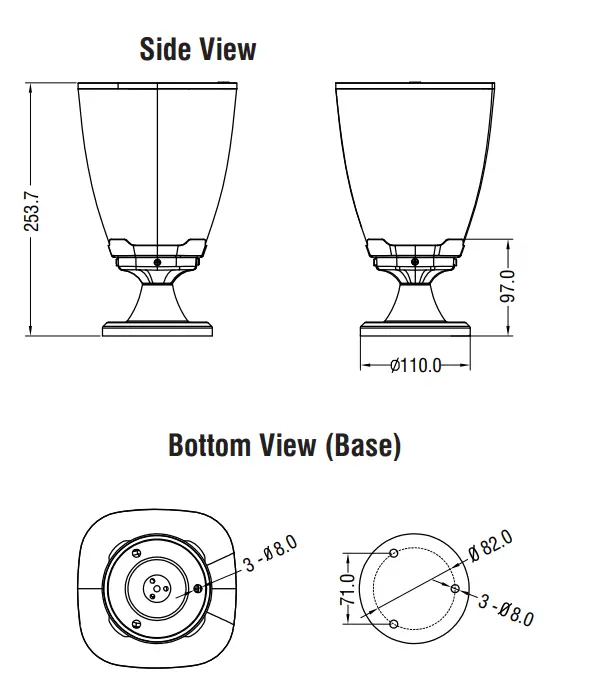

Dimensions

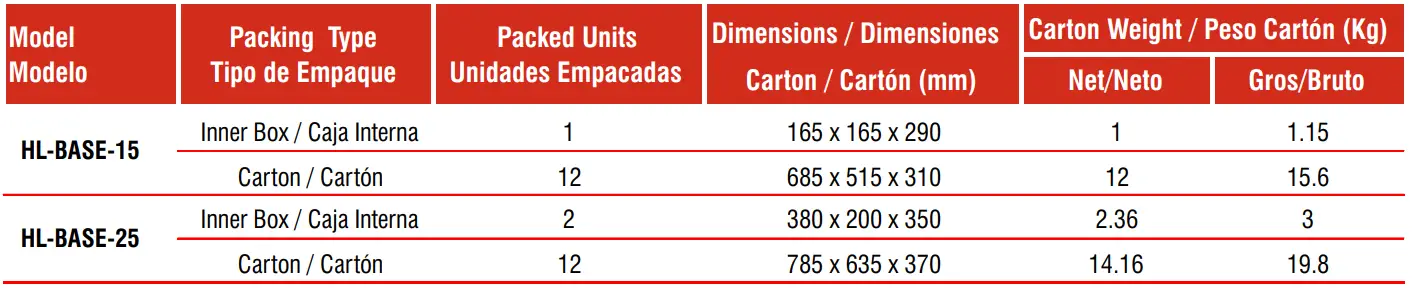

Packing Information
- Net and Gross weight information is for reference purposes only
